307-086 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 86POS 0.156
...
| Part | Termination Rows [custom] | Material - Insulation | Mounting Type | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Pitch | Pitch | Number of Positions/Bay/Row | Contact Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Gender | Card Type | Termination | Number of Positions | Color | Number of Rows [custom] | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Right Angle Through Hole | Dual | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 3.96 mm | 0.156 in | 43 | Semi Bellows | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Female | Non Specified - Dual Edge | Solder | 86 | Green | 2 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 43 | Semi Bellows | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Female | Non Specified - Dual Edge | Solder | 86 | Green | 2 | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 43 | Semi Bellows | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | Non Specified - Dual Edge | Solder Eyelet(s) | 86 | Green | 2 | Card Guides | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 43 | Semi Bellows | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | Non Specified - Dual Edge | Solder | 86 | Green | 2 | Card Guides | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 43 | Semi Bellows | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Female | Non Specified - Dual Edge | Solder | 86 | Green | 2 | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Dual | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 3.96 mm | 0.156 in | 43 | Semi Bellows | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | Non Specified - Dual Edge | Solder | 86 | Green | 2 | 0.25 Ám | 10 Áin | |

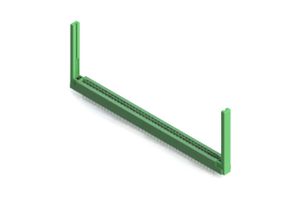

 EDAC Inc. | 2 | Polyester Thermoplastic | Board Edge Straddle Mount | Dual | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 3.96 mm | 0.156 in | 43 | Semi Bellows | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Female | Non Specified - Dual Edge | Solder Eyelet(s) | 86 | Green | 2 | Card Extender | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 43 | Semi Bellows | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | Non Specified - Dual Edge | Solder | 86 | Green | 2 | Card Guides | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 43 | Semi Bellows | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Female | Non Specified - Dual Edge | Solder Eyelet(s) | 86 | Green | 2 | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 43 | Semi Bellows | Copper Alloy | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | Non Specified - Dual Edge | Solder | 86 | Green | 2 | Card Guides | 0.25 Ám | 10 Áin |
