HC385G Series
Manufacturer: Johnson Motor
Beta
⌘K
LOW VOLTAGE DC MOTORS
| Part | Weight | Weight | Size / Dimension | Size / Dimension [diameter] | Size / Dimension [diameter] | Power - Rated | Motor Type | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Function | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Rated | Termination Style | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Weight [custom] | Weight [custom] | RPM | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

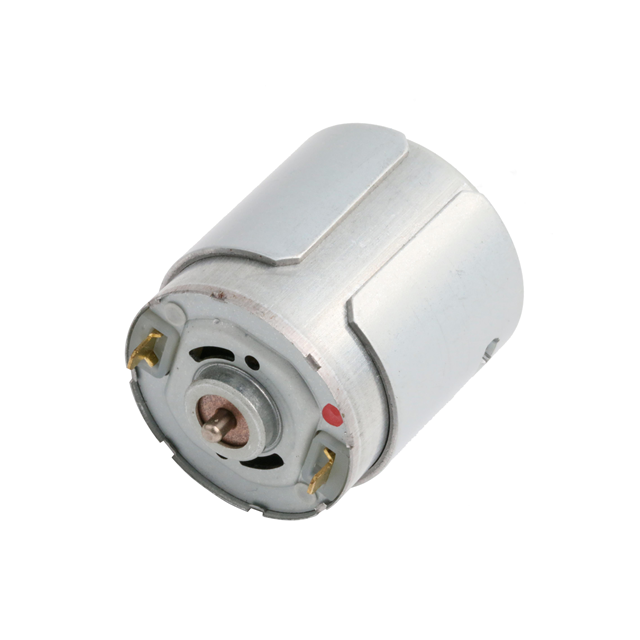

 Johnson Motor | 0.156 lb | 70.87 g | Round | 30.48 mm | 1.2 in | 7.4 W | Brushed | 0.63 in | 16 mm | 1.12 oz-in | 7.91 mNm | Standard | 55 °C | -10 °C | DC Motor | 18 VDC | Solder Tab | 2.3 mm | 0.091 in | |||||

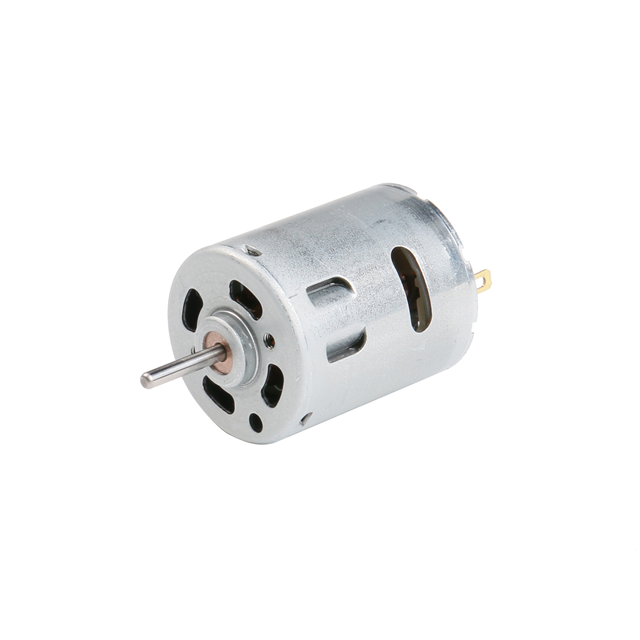

 Johnson Motor | Round | 27.94 mm | 1.1 " | 14.7 W | Brushed | 0.63 in | 16 mm | 0.64 oz-in | 4.52 mNm | Standard | 55 °C | -10 °C | DC Motor | 24 VDC | Solder Tab | 2.3 mm | 0.091 in | 0.113 lb | 51.03 g | 8100 RPM | 0.48 oz-in | 3.42 mNm |
