PPL65U Series

Catalog

AC/DC DESKTOP ADAPTER 24V 65W

Part	Operating Temperature [Max]	Efficiency	Cord Length	Cord Length	Current - Output (Max) [Max]	Voltage - Output	No Load Power Consumption	Output Connector [x]	Output Connector [diameter]	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Polarization	Standard Number	Power (Watts)	Region Utilized	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Input Type	Approval Agency	Form	Current - Output (Max)

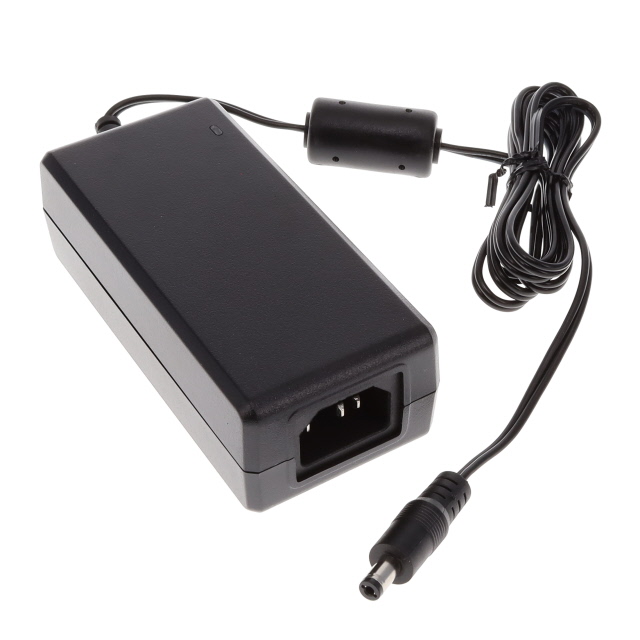

Phihong USA PPL65U-240	40 °C	CoC Tier 2 Level VI	1.5 m	59 in	2.71 A	24 V	150 mW	10 mm	2.1 mm 5.5 mm	Barrel Plug	264 VAC	90 VAC	IEC 320-C14	Positive Center	62368-1	65 W	International	ITE (Commercial)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	Cord (Sold Separately)	cULus IEC	Desktop (Class I)
Phihong USA PPL65U-180	40 °C	CoC Tier 2 Level VI	1.5 m	59 in	3.62 A	18 V	150 mW	10 mm	2.1 mm 5.5 mm	Barrel Plug	264 VAC	90 VAC	IEC 320-C14	Positive Center	62368-1	65 W	International	ITE (Commercial)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	Cord (Sold Separately)	cULus IEC	Desktop (Class I)

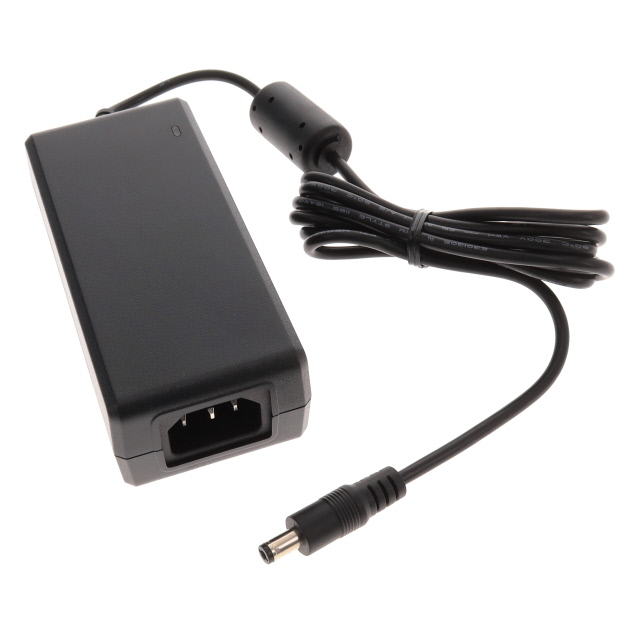

Phihong USA PPL65U-120	40 °C	CoC Tier 2 Level VI	1.5 m	59 in		12 V	150 mW	10 mm	2.1 mm 5.5 mm	Barrel Plug	264 VAC	90 VAC	IEC 320-C14	Positive Center	62368-1	60 W	International	ITE (Commercial)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	Cord (Sold Separately)	cULus IEC	Desktop (Class I)	5 A

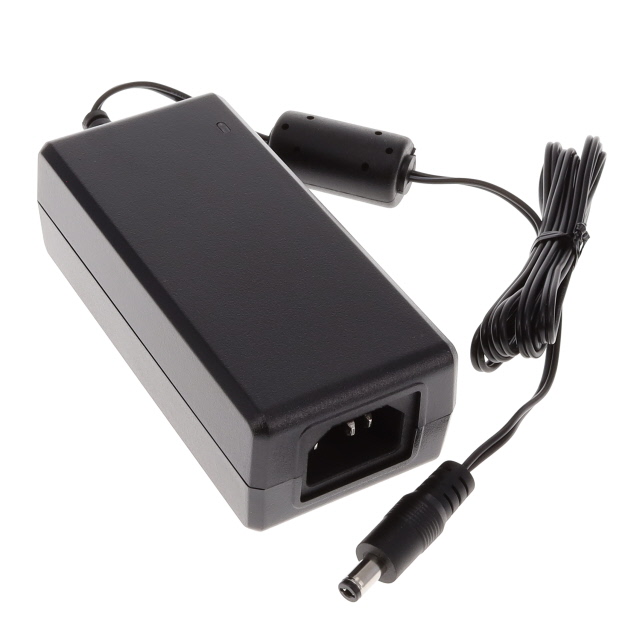

Phihong USA PPL65U-480	40 °C	CoC Tier 2 Level VI	1.5 m	59 in	1.36 A	48 V	150 mW	10 mm	2.1 mm 5.5 mm	Barrel Plug	264 VAC	90 VAC	IEC 320-C14	Positive Center	62368-1	65 W	International	ITE (Commercial)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	Cord (Sold Separately)	cULus IEC	Desktop (Class I)

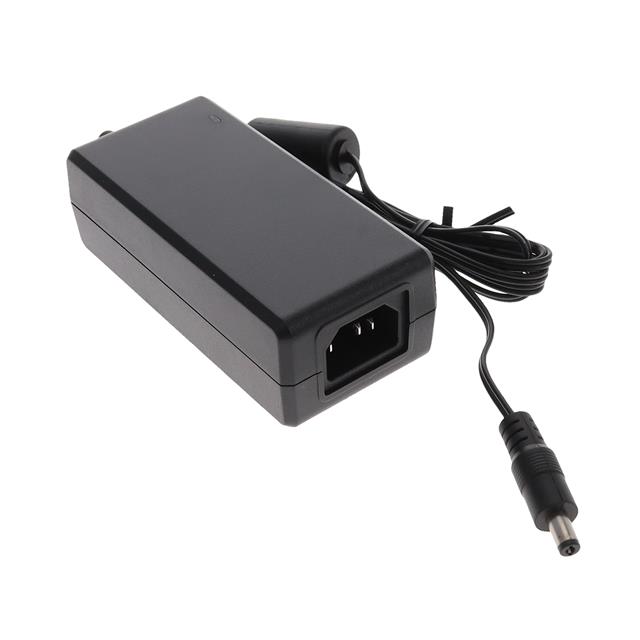

Phihong USA PPL65U-560	40 °C	CoC Tier 2 Level VI	1.5 m	59 in	1.17 A	56 V	150 mW	10 mm	2.1 mm 5.5 mm	Barrel Plug	264 VAC	90 VAC	IEC 320-C14	Positive Center	62368-1	66 W	International	ITE (Commercial)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	Cord (Sold Separately)	cULus IEC	Desktop (Class I)
