PI5101 Series

Catalog

MOSFET N-CH 5V 60A 3LGA

Part	Current - Continuous Drain (Id) @ 25°C	Package / Case	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs	Operating Temperature [Max]	Operating Temperature [Min]	FET Type	Mounting Type	Drain to Source Voltage (Vdss)	Power Dissipation (Max)	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Vgs (Max) [Min]	Vgs (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs	Technology

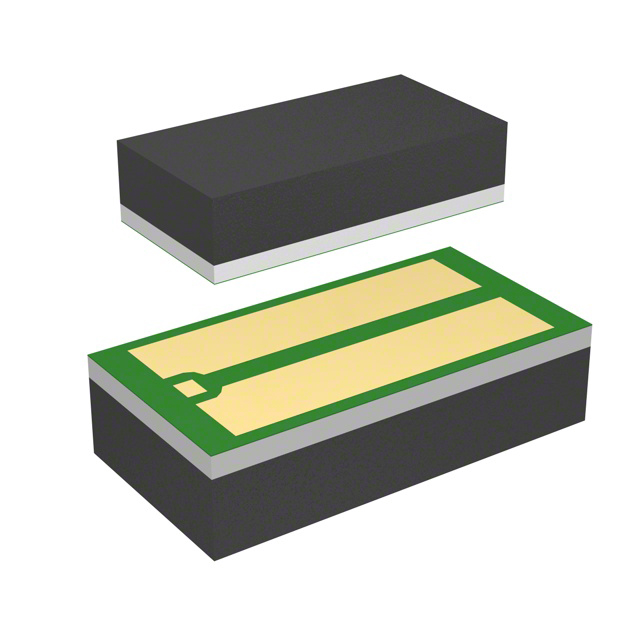

Vicor Corporation PI5101-01-LGIZ	60 A	3-FLGA	800 mV	7600 pF	0.45 mOhm	150 °C	-55 °C	N-Channel	Surface Mount	5 V	3.1 W	8	3-LGA	4.1	4.5 V	3.5 V	-5 V	5 V	65 nC	MOSFET (Metal Oxide)
