PRA.M1 Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 10P SOLDER CUP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Primary Material	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Shell Size - Insert	Backshell Material, Plating	Orientation	Color	Insert Material	Fastening Type	Connector Type	Current Rating (Amps)	Mounting Type	Ingress Protection	Contact Finish - Mating	Number of Positions	Shielding	Features	Shell Material	Cable Opening	Cable Opening [Max]

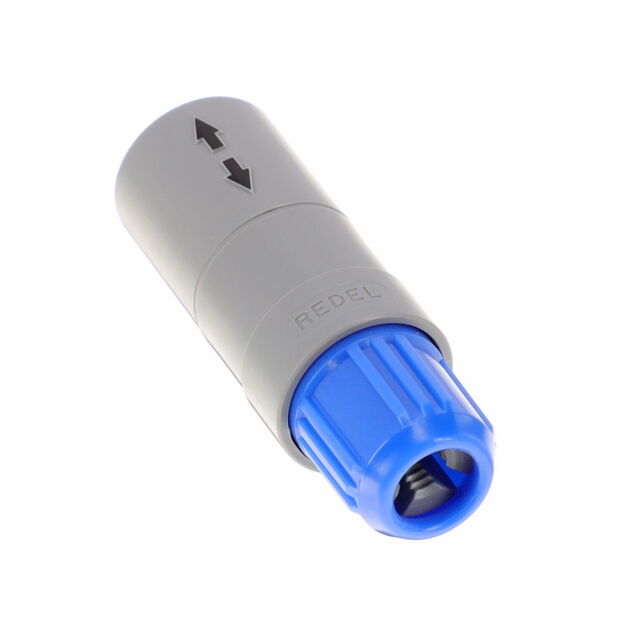

LEMO PRA.M1.0GL.LC39A	150 °C	-50 °C	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	3.9 mm	0.154 in	2.7 mm	0.106 in	M10	Polysulfone (PSU)	A	Blue Gray	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	Receptacle Female Sockets	3 A	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	10	Unshielded	Backshell	Polysulfone (PSU)
LEMO PRA.M1.0GL.LC52G	150 °C	-50 °C	Automotive Industrial Medical Testing Equipment & Measurement	Plastic		0.205 in		0.157 in	M10	Polysulfone (PSU)	A	Gray	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	Receptacle Female Sockets	3 A	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	10	Unshielded	Backshell	Polysulfone (PSU)	4 mm 5.2 mm
LEMO PRA.M1.0GL.LC65R	150 °C	-50 °C	Automotive Industrial Medical Testing Equipment & Measurement	Plastic		0.256 in	5.3 mm	0.209 in	M10	Polysulfone (PSU)	A	Gray Red	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	Receptacle Female Sockets	3 A	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	10	Unshielded	Backshell	Polysulfone (PSU)		6.5 mm

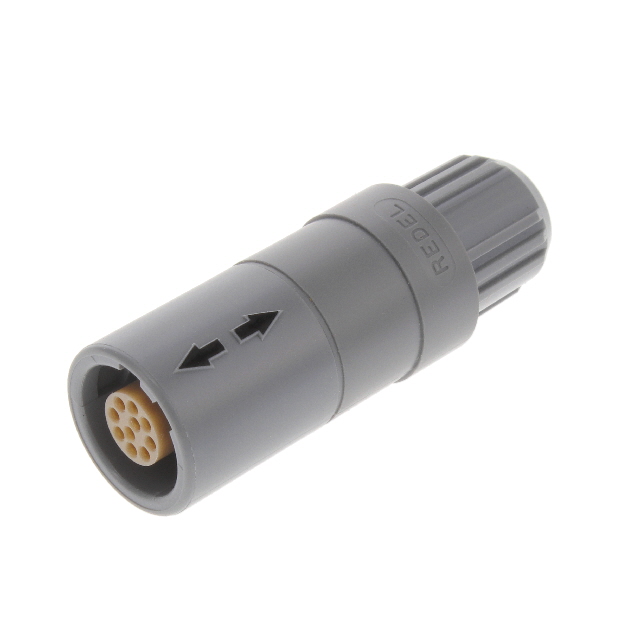

LEMO PRA.M1.0GL.LC39G	150 °C	-50 °C	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	3.9 mm	0.154 in	2.7 mm	0.106 in	M10	Polysulfone (PSU)	A	Gray	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	Receptacle Female Sockets	3 A	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	10	Unshielded	Backshell	Polysulfone (PSU)
