45-1131 Series

Manufacturer: EAO

Catalog

SWITCH PUSH SPST-NC 10A 500V

Part	Mechanical Life	Voltage Rating - DC	Circuit	Voltage Rating - AC	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Actuator Marking	Termination Style	Type	Switch Function	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type
EAO 45-1131.1210.000.102	10000000 Cycles	500 V	SPST-NC	500 V	Black	10 A	Panel Mount Front	No Marking	Screw Terminal	Standard	On-Mom	IP66 IP67 IP69K	-25 °C	70 °C	Button Round

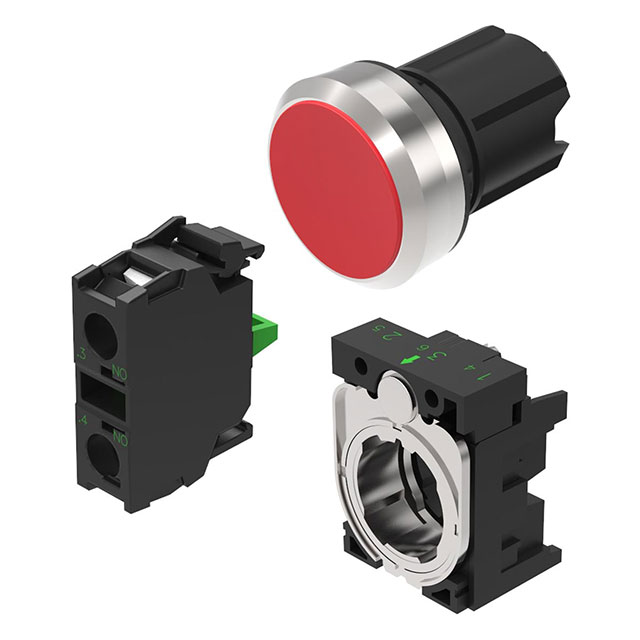

EAO 45-1131.3120.000.101	10000000 Cycles	500 V	SPST-NO	500 V	Red	10 A	Panel Mount Front	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	-25 °C	70 °C	Button Flush Round
EAO 45-1131.1160.000.101	10000000 Cycles	500 V	SPST-NO	500 V	Blue	10 A	Panel Mount Front	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	-25 °C	70 °C	Button Flush Round

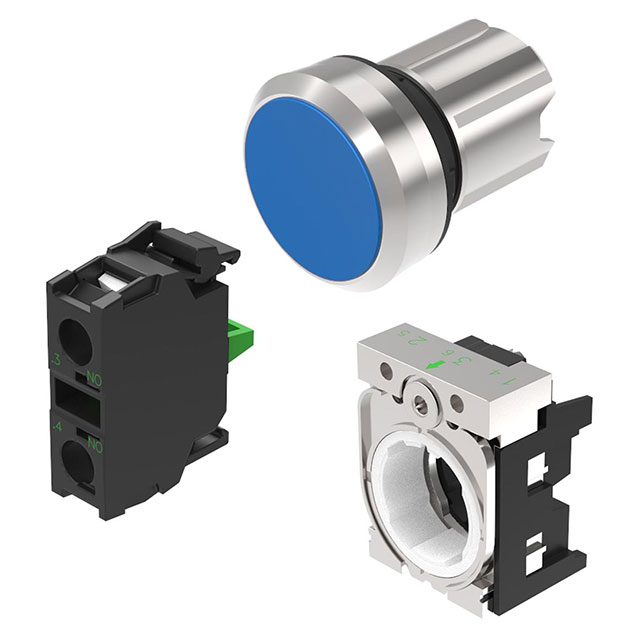

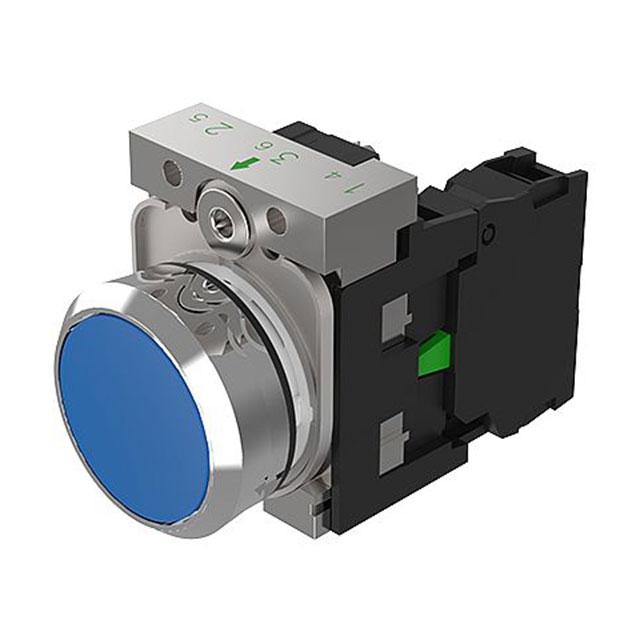

EAO 45-1131.2160.000.101	10000000 Cycles	500 V	SPST-NO	500 V	Blue	10 A	Panel Mount Front	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	-25 °C	70 °C	Button Flush Round
EAO 45-1131.3220.000.102	10000000 Cycles	500 V	SPST-NC	500 V	Red	10 A	Panel Mount Front	No Marking	Screw Terminal	Standard	On-Mom	IP66 IP67 IP69K	-25 °C	70 °C	Button Round

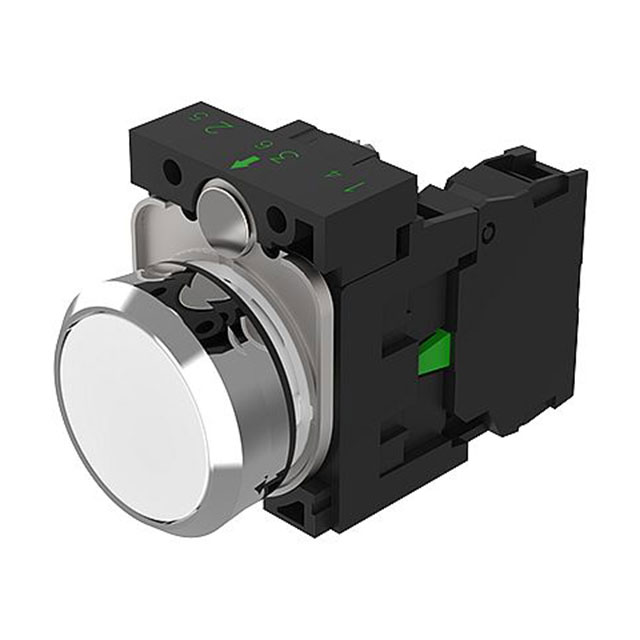

EAO 45-1131.3190.000.101	10000000 Cycles	500 V	SPST-NO	500 V	White	10 A	Panel Mount Front	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	-25 °C	70 °C	Button Flush Round
EAO 45-1131.3120.000.102	10000000 Cycles	500 V	SPST-NC	500 V	Red	10 A	Panel Mount Front	No Marking	Screw Terminal	Standard	On-Mom	IP66 IP67 IP69K	-25 °C	70 °C	Button Flush Round
EAO 45-1131.2140.000.101	10000000 Cycles	500 V	SPST-NO	500 V	Yellow	10 A	Panel Mount Front	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	-25 °C	70 °C	Button Flush Round

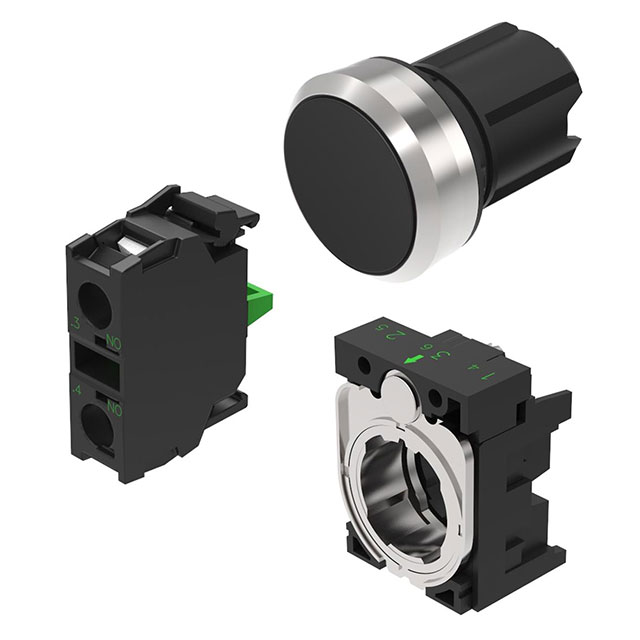

EAO 45-1131.3110.000.102	10000000 Cycles	500 V	SPST-NC	500 V	Black	10 A	Panel Mount Front	No Marking	Screw Terminal	Standard	On-Mom	IP66 IP67 IP69K	-25 °C	70 °C	Button Flush Round

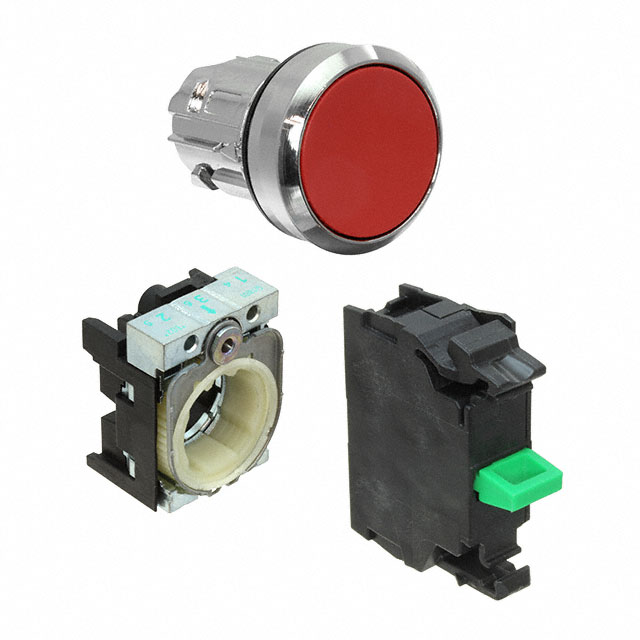

EAO 45-1131.2120.000.101	10000000 Cycles	500 V	SPST-NO	500 V	Red	10 A	Panel Mount Front	No Marking	Screw Terminal	Standard	Off-Mom	IP66 IP67 IP69K	-25 °C	70 °C	Button Flush Round
