503091 Series

2.00mm Pitch, iGrid PCB Header, Dual Row, Vertical, Through Hole, Gold (Au) Plating, Positive Lock, 26 Circuits, Tray, 3.20mm PC Tail Length, Natural, with PCB Locator

Manufacturer: Molex

Catalog

2.00mm Pitch, iGrid PCB Header, Dual Row, Vertical, Through Hole, Gold (Au) Plating, Positive Lock, 26 Circuits, Tray, 3.20mm PC Tail Length, Natural, with PCB Locator

Part	Connector Type	Applications	Shrouding	Termination	Contact Length - Post	Contact Length - Post [x]	Contact Finish - Mating	Current Rating (Amps)	Voltage Rating	Fastening Type	Number of Positions	Number of Rows	Material Flammability Rating	Contact Shape	Contact Finish - Post	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Features	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights	Current Rating (Amps)

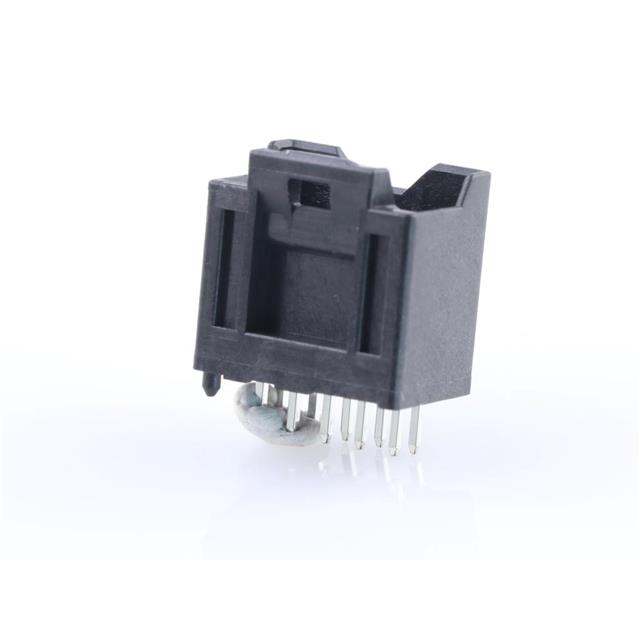

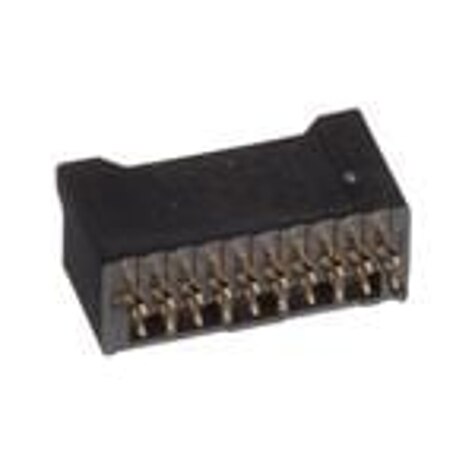

Molex 5030912021	Header	General Purpose Industrial Telecommunications	Shrouded - 4 Wall	Solder	3.2 mm	0.126 in	Gold	Varies by Wire Gauge	250 VAC	Latch Holder	20	2	UL94 V-0	Square	Gold	Through Hole	3.94 Áin	0.1 Ám	0.472 in	12 mm	Black	3.94 µin	0.1 µm	Nylon Polyamide (PA)	Board Guide	All	0.079 in	2 mm	Brass	0.079 in	2 mm	Male Pin	Board to Cable/Wire	-40 °C	105 ░C
Molex 5030912621

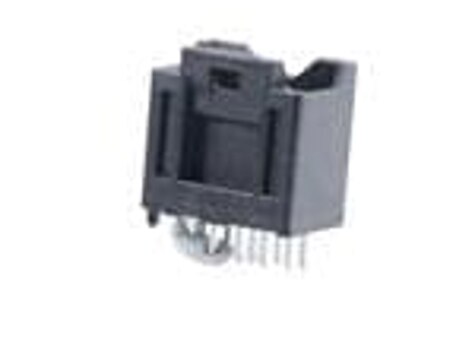

Molex 5030914021
Molex 5030911621

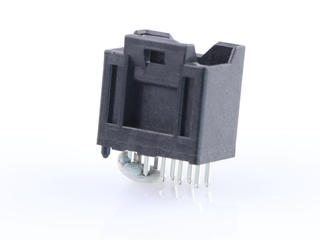

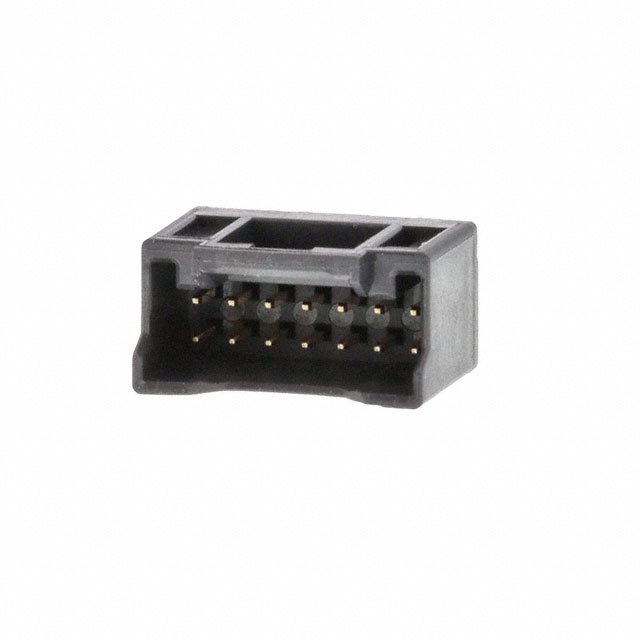

Molex 5030911421	Header	General Purpose Industrial Telecommunications	Shrouded - 4 Wall	Solder	3.2 mm	0.126 in	Gold	Varies by Wire Gauge	250 VDC	Latch Holder	14	2	UL94 V-0	Square	Gold	Through Hole	3.94 Áin	0.1 Ám	0.472 in	12 mm	Black	3.94 µin	0.1 µm	Nylon Polyamide (PA)	Board Guide	All	0.079 in	2 mm	Brass	0.079 in	2 mm	Male Pin	Board to Cable/Wire	-40 °C	105 ░C	13.4 mm
Molex 5030912221	Header		Shrouded - 4 Wall	Solder	3.2 mm	0.126 in	Gold		250 VAC	Latch Holder	22 positions	2	UL94 V-0	Square	Gold	Through Hole	3.94 Áin	0.1 Ám	0.472 in	12 mm	Black	3.94 µin	0.1 µm	Glass Filled Nylon Polyamide (PA)	Board Guide	All	0.079 in	2 mm	Brass	0.079 in	2 mm	Male Pin	Board to Cable/Wire	-40 °C	105 ░C		2 A
