FSH Series

Manufacturer: OptiFuse

Catalog

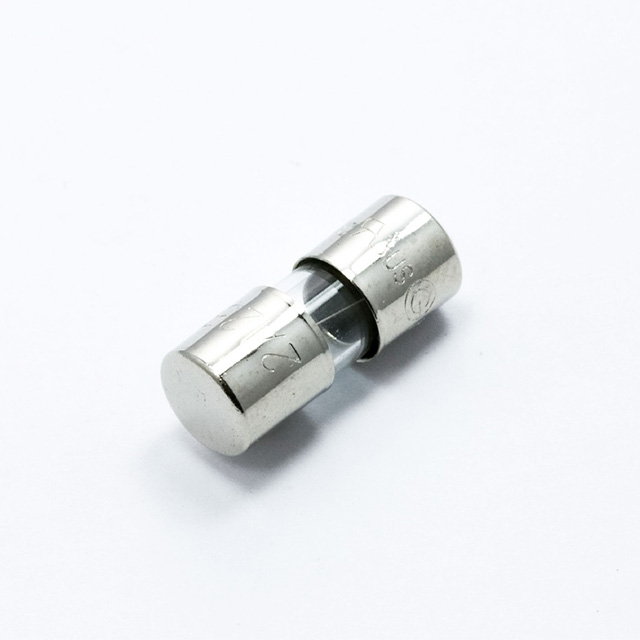

FUSE GLASS 15A 125VAC 1AG

Part	Response Time	Mounting Type	Package / Case [y]	Package / Case	Package / Case [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Fuse Type	Approval Agency	Voltage Rating - AC	Current Rating (Amps)	Breaking Capacity @ Rated Voltage
OptiFuse FSH-15A	Fast Blow	Requires Holder	5/8	1AG	1/4	0.25 "	0.626 in	15.9 mm	6.35 mm	Cartridge Glass	UL 248	125 V	15 A	1 kA
OptiFuse FSH-5A	Fast Blow	Requires Holder	5/8	1AG	1/4	0.25 "	0.626 in	15.9 mm	6.35 mm	Cartridge Glass	UL 248	125 V	5 A	1 kA
OptiFuse FSH-3A	Fast Blow	Requires Holder	5/8	1AG	1/4	0.25 "	0.626 in	15.9 mm	6.35 mm	Cartridge Glass	cULus UL 248	250 V	3 A
OptiFuse FSH-1A	Fast Blow	Requires Holder	5/8	1AG	1/4	0.25 "	0.626 in	15.9 mm	6.35 mm	Cartridge Glass	cULus UL 248	250 V	1 A
OptiFuse FSH-25A	Fast Blow	Requires Holder	5/8	1AG	1/4	0.25 "	0.626 in	15.9 mm	6.35 mm	Cartridge Glass	UL 248	125 V	25 A	1 kA
OptiFuse FSH-2A	Fast Blow	Requires Holder	5/8	1AG	1/4	0.25 "	0.626 in	15.9 mm	6.35 mm	Cartridge Glass	cULus UL 248	250 V	2 A
OptiFuse FSH-20A	Fast Blow	Requires Holder	5/8	1AG	1/4	0.25 "	0.626 in	15.9 mm	6.35 mm	Cartridge Glass	UL 248	125 V	20 A	1 kA
OptiFuse FSH-4A	Fast Blow	Requires Holder	5/8	1AG	1/4	0.25 "	0.626 in	15.9 mm	6.35 mm	Cartridge Glass	UL 248	125 V	4 A	1 kA
OptiFuse FSH-2.5A	Fast Blow	Requires Holder	5/8	1AG	1/4	0.25 "	0.626 in	15.9 mm	6.35 mm	Cartridge Glass	cULus UL 248	250 V	2.5 A
OptiFuse FSH-30A	Fast Blow	Requires Holder	5/8	1AG	1/4	0.25 "	0.626 in	15.9 mm	6.35 mm	Cartridge Glass	UL 248	125 V	30 A	1 kA
