GB30S48 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

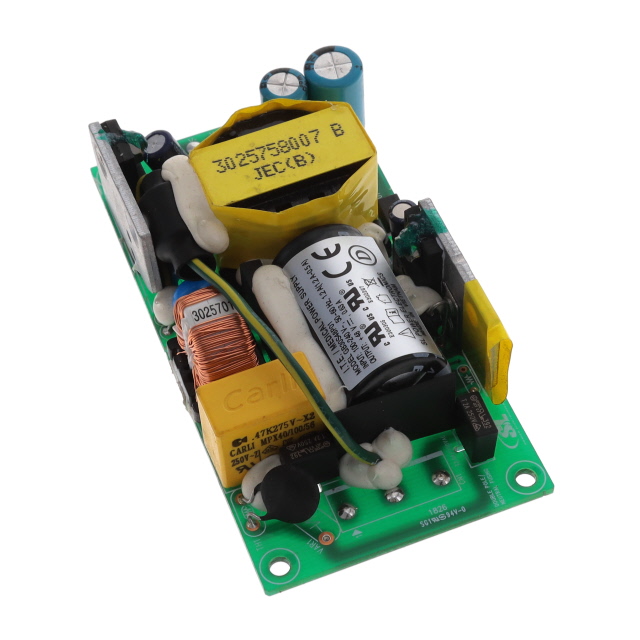

AC/DC POWER SUPPLY SINGLE-OUT 48V 0.63A 30W 7-PIN
| Part | Minimum Load Required | Current - Output 1 | Number of Outputs | Approval Agency | Efficiency | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Features | Power (Watts) | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Applications | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 630 mA | 1 | CE cURus UL | 88 % | 48 V | 100 VAC | 240 VAC | Universal Input | 30 Watts | 4000 V | 70 °C | -25 °C | Open Frame | 4 " | 101.6 mm | 1.9 " | 25.4 mm | 1 in | 48.3 mm | Chassis Mount | ITE (Commercial) Medical | ||
 SL POWER / Advanced Energy | 630 mA | 1 | CE cURus DEMKO | 88 % | 48 V | 90 VAC | 264 VAC | Universal Input | 30 Watts | 4000 V | 70 °C | -25 °C | Open Frame | 3.62 " | 91.9 mm | 1.89 in | 20.9 mm | 0.82 " | 48 mm | Chassis Mount | ITE (Commercial) Medical | 60601-1; 62368-1 |
