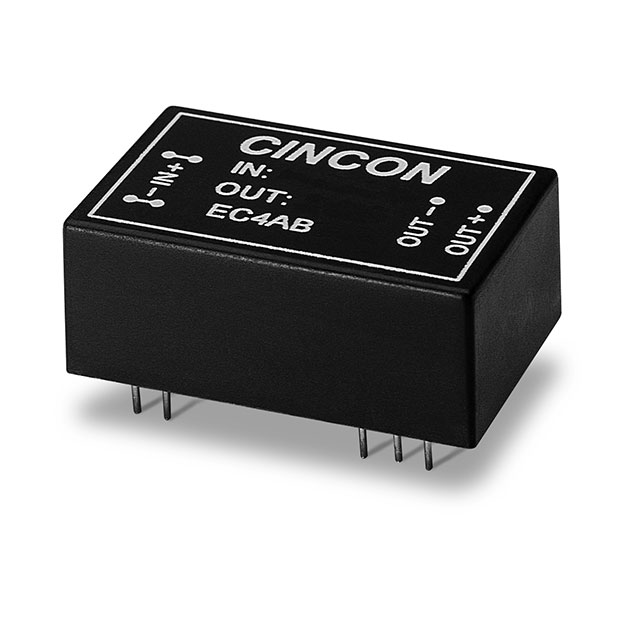

EC4AB27 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
DC DC CONVERTER 3.3V 3.3W
| Part | Voltage - Input (Max) [Max] | Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Approval Agency | Power (Watts) | Applications | Type | Mounting Type | Number of Outputs | Current - Output (Max) [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 72 V | SCP | 1.25 in | 31.8 mm | 12.7 mm | 0.8 " | 20.3 mm | 0.5 in | 73 % | 71 °C | -25 °C | 3000 V | CE cURus | 3.3 W | ITE (Commercial) | Isolated Module | Through Hole | 1 | 1 A | 3.3 V | 36 V | 24-DIP Module 14 Leads |
