MJL1302A Series

Bipolar Power Transistor, PNP, 15 A, 260 V, 200 Watt

Catalog

Bipolar Power Transistor, PNP, 15 A, 260 V, 200 Watt

Part	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Transistor Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Mounting Type	Frequency - Transition	Vce Saturation (Max) @ Ib, Ic

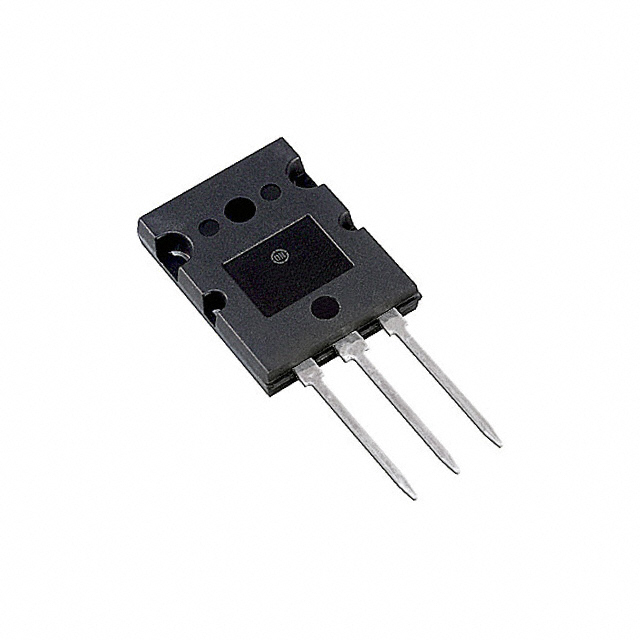

ON Semiconductor MJL1302AG	15 A	50 µA	PNP	150 °C	-65 °C	TO-264	260 V	TO-264-3 TO-264AA	75	200 W	Through Hole	30 MHz	3 V

Bipolar Power Transistor, PNP, 15 A, 260 V, 200 Watt

• Exceptional Safe Operating Area for reliable performance at higher powers

• NPN/PNP Gain Matching within 10% from 50mA to 5A for symmetrical

• Excellent Gain Linearity for accurate reproduction of input signal

• High VCE for greater dynamic range

• High frequency for high amplifier bandwidth

The MJL3281A and MJL1302A are power transistors for high power audio, disk head positioners and other linear applications.
