6EP13225 Series

Manufacturer: Siemens

Catalog

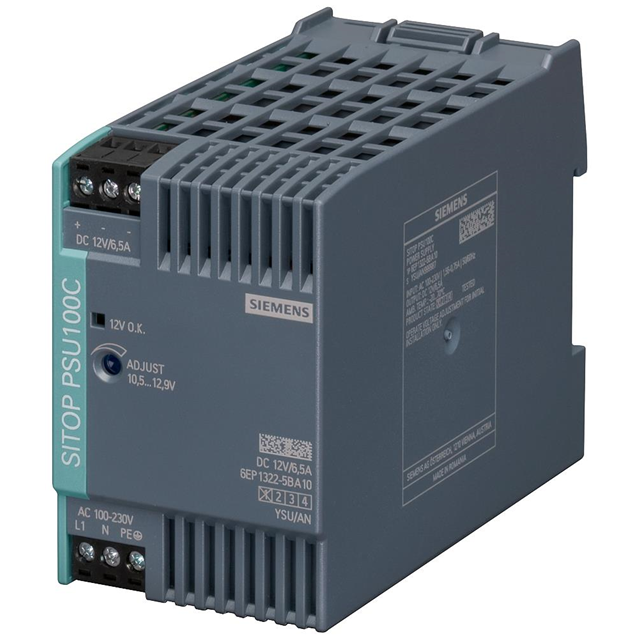

AC/DC DIN RAIL SUPPLY 12V 78W

Part	Input Type	Features	Efficiency	Voltage - Output 1	Approval Agency	DC Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Power (Watts)	Current - Output (Max) [Max]	Applications	DC Voltage - Input (Max) [Max]	Standard Number
Siemens 6EP13225BA10	AC or DC	Adjustable Output IP20 Universal Input	86 %	12 V	CB cCSAus CE CSA cUL cULus UL	110 V	1	2.07 in	80 mm	100 mm	3.15 in	3.94 in	52.5 mm	70 °C	-20 °C	230 VAC 264 VAC	85 VAC 100 VAC	78 W	6.5 A	Hazardous Locations Industrial ITE (Commercial)	300 V	60950-1; UL 508
