109P0612 Series

Catalog

AXIAL FAN, 60MM, 12VDC, 21.9CFM, 45DBA

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Material - Frame	Current Rating (Amps)	Air Flow	Air Flow	Features	Termination	Width [y]	Voltage - Rated	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Noise	Approval Agency	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Power (Watts)	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Weight	Weight
Sanyo Denki America Inc. 109P0612K701	40000 Hrs	10.2 VDC	13.8 VDC	Plastic	Plastic	0.26 A	0.613 m³/min	21.9 CFM	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	15 mm	12 VDC	Tubeaxial	60 mm	60 mm	45 dB(A)	CSA TUV UL	0.399 in H2O	99.3 Pa	0.133 lb	60.33 g	3.12 W	6500 RPM	60 °C	60 °C	-4 °F	-20 ░C	Ball
Sanyo Denki America Inc. 109P0612K702	40000 Hrs	10.2 VDC	13.8 VDC	Plastic	Plastic	0.26 A	0.613 m³/min	21.9 CFM		2 Wire Leads	15 mm	12 VDC	Tubeaxial	60 mm	60 mm	45 dB(A)	CSA TUV UL	0.399 in H2O	99.3 Pa	0.133 lb	60.33 g	3.12 W	6500 RPM	60 °C	60 °C	-4 °F	-20 ░C	Ball
Sanyo Denki America Inc. 109P0612K7D01	40000 Hrs	10.2 VDC	13.8 VDC	Plastic	Plastic	0.26 A	0.613 m³/min	21.9 CFM	Locked Rotor Sensor	3 Wire Leads	15 mm	12 VDC	Tubeaxial	60 mm	60 mm	45 dB(A)	CSA TUV UL	0.399 in H2O	99.3 Pa	0.133 lb	60.33 g	3.12 W	6500 RPM	60 °C	60 °C	-4 °F	-20 ░C	Ball

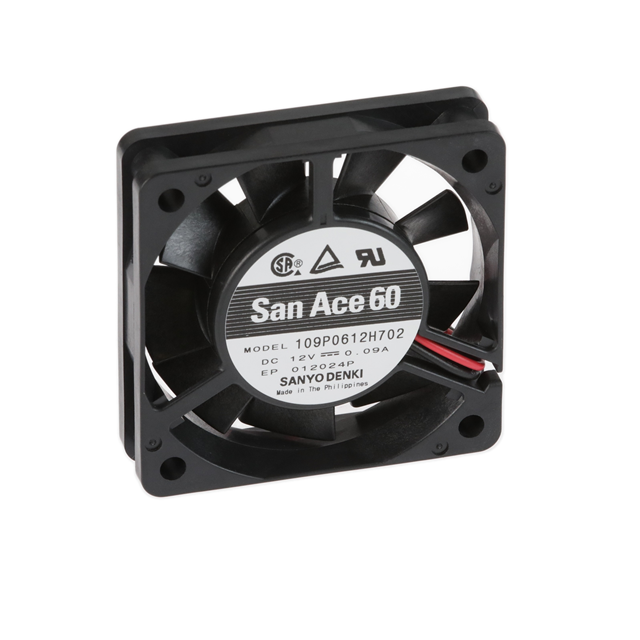

Sanyo Denki America Inc. 109P0612H702		7 V	13.8 VDC	Plastic	Plastic	0.09 A	0.395 m³/min	14.1 CFM		2 Wire Leads	15 mm	12 VDC	Tubeaxial	60 mm	60 mm	32 dB	CSA TUV UL	0.153 in H2O	38.2 Pa	0.133 lb	60.33 g	1.08 W	4100 RPM		70 °C		-20 ░C	Ball
Sanyo Denki America Inc. 109P0612H779		7 V	13.8 VDC	Plastic	Plastic					2 Position Rectangular Connector	15 mm	12 VDC	Tubeaxial	60 mm	60 mm	32 dB				0.133 lb	60.33 g		4100 RPM		70 °C		-20 ░C	Ball
Sanyo Denki America Inc. 109P0612M602		10.2 VDC	13.8 VDC	Plastic	Plastic	0.09 A	0.297 m³/min	10.6 CFM		2 Wire Leads	20 mm	12 VDC	Tubeaxial	60 mm	60 mm	25 dB(A)	CSA TUV UL	0.076 in H2O	18.9 Pa			1.08 W	3200 RPM		70 °C		-20 ░C	Ball	0.199 lb	90.26 g
Sanyo Denki America Inc. 109P0612H601		10.2 VDC	13.8 VDC	Plastic	Plastic		0.414 mł/min	14.8 CFM	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	20 mm	12 VDC	Tubeaxial	60 mm	60 mm	31 dB(A)	CSA TUV UL	0.128 in H2O	31.8 Pa			1.56 W	4200 RPM		70 °C		-20 ░C	Ball	0.199 lb	90.26 g
Sanyo Denki America Inc. 109P0612H6D01		10.2 VDC	13.8 VDC	Plastic	Plastic		0.414 mł/min	14.8 CFM	Locked Rotor Sensor	3 Wire Leads	20 mm	12 VDC	Tubeaxial	60 mm	60 mm	31 dB(A)	CSA TUV UL	0.128 in H2O	31.8 Pa			1.56 W	4200 RPM		70 °C		-20 ░C	Ball	0.199 lb	90.26 g

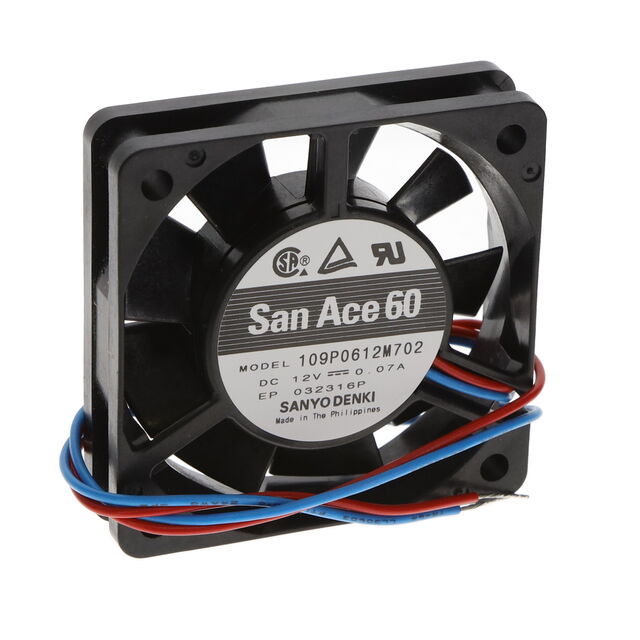

Sanyo Denki America Inc. 109P0612M702		10.2 VDC	13.8 VDC	Plastic	Plastic	70 mA	0.297 m³/min	10.6 CFM		2 Wire Leads	15 mm	12 VDC	Tubeaxial	60 mm	60 mm	25 dB(A)	CSA TUV UL	0.091 in H2O	22.7 Pa	0.133 lb	60.33 g	840 mW	3100 RPM		70 °C		-20 ░C	Ball
Sanyo Denki America Inc. 109P0612M601		10.2 VDC	13.8 VDC	Plastic	Plastic	0.09 A	0.297 m³/min	10.6 CFM	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	20 mm	12 VDC	Tubeaxial	60 mm	60 mm	25 dB(A)	CSA TUV UL	0.076 in H2O	18.9 Pa			1.08 W	3200 RPM		70 °C		-20 ░C	Ball	0.199 lb	90.26 g
