102979 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 76POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Current Rating (Amps)	Insulation Color	Contact Shape	Style	Number of Positions	Contact Type	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Termination	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Material	Contact Finish - Post	Connector Type	Number of Rows [custom]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [custom]	Contact Length - Post	Shrouding
TE Connectivity AMP Connectors 4-102979-0-38	2.54 µm	100 µin	All	3 A	Black	Square	Board to Board Cable	76	Male Pin	0.1 "	2.54 mm	Right Angle Through Hole	Gold	0.1 in	2.54 mm	0.238 "	6.05 mm	Solder	8.08 mm	0.318 in	UL94 V-0	Copper Alloy	Tin-Lead	Header Breakaway	2	Thermoplastic	0.76 Ám	30 Áin	Push-Pull	105 ░C	-65 ░C	0.11 in	2.79 mm	Unshrouded

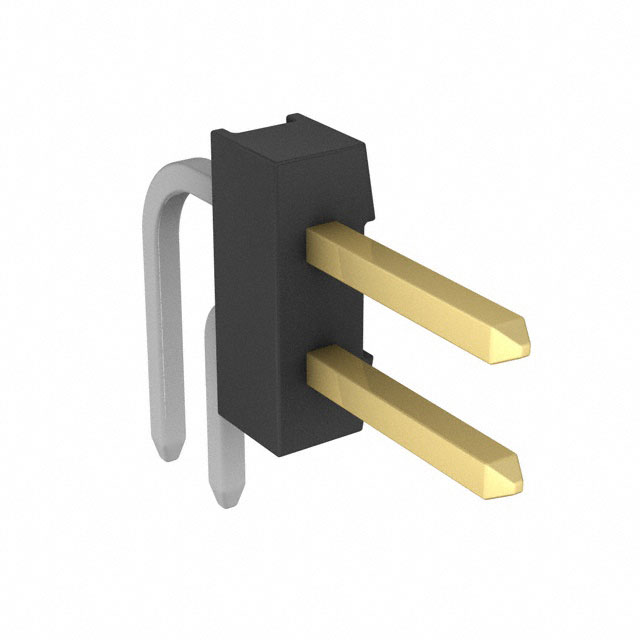

TE Connectivity AMP Connectors 4-102979-0-01	2.54 µm	100 µin	All	3 A	Black	Square	Board to Board Cable	2	Male Pin			Right Angle Through Hole	Gold	0.1 in	2.54 mm	0.238 "	6.05 mm	Solder	8.08 mm	0.318 in	UL94 V-0	Copper Alloy	Tin-Lead	Header Breakaway	2	Thermoplastic	0.76 Ám	30 Áin	Push-Pull	105 ░C	-65 ░C	0.11 in	2.79 mm	Unshrouded
TE Connectivity AMP Connectors 4-102979-0-11	2.54 µm	100 µin	All	3 A	Black	Square	Board to Board Cable	22	Male Pin	0.1 "	2.54 mm	Right Angle Through Hole	Gold	0.1 in	2.54 mm	0.238 "	6.05 mm	Solder	8.08 mm	0.318 in	UL94 V-0	Copper Alloy	Tin-Lead	Header Breakaway	2	Thermoplastic	0.76 Ám	30 Áin	Push-Pull	105 ░C	-65 ░C	0.11 in	2.79 mm	Unshrouded
TE Connectivity AMP Connectors 4-102979-0-04	2.54 µm	100 µin	All	3 A	Black	Square	Board to Board Cable	8	Male Pin	0.1 "	2.54 mm	Right Angle Through Hole	Gold	0.1 in	2.54 mm	0.238 "	6.05 mm	Solder	8.08 mm	0.318 in	UL94 V-0	Copper Alloy	Tin-Lead	Header Breakaway	2	Thermoplastic	0.76 Ám	30 Áin	Push-Pull	105 ░C	-65 ░C	0.11 in	2.79 mm	Unshrouded
TE Connectivity AMP Connectors 4-102979-0-24	2.54 µm	100 µin	All	3 A	Black	Square	Board to Board Cable	48	Male Pin	0.1 "	2.54 mm	Right Angle Through Hole	Gold	0.1 in	2.54 mm	0.238 "	6.05 mm	Solder	8.08 mm	0.318 in	UL94 V-0	Copper Alloy	Tin-Lead	Header Breakaway	2	Thermoplastic	0.76 Ám	30 Áin	Push-Pull	105 ░C	-65 ░C	0.11 in	2.79 mm	Unshrouded
TE Connectivity AMP Connectors 4-102979-0-26	2.54 µm	100 µin	All	3 A	Black	Square	Board to Board Cable	52	Male Pin	0.1 "	2.54 mm	Right Angle Through Hole	Gold	0.1 in	2.54 mm	0.238 "	6.05 mm	Solder	8.08 mm	0.318 in	UL94 V-0	Copper Alloy	Tin-Lead	Header Breakaway	2	Thermoplastic	0.76 Ám	30 Áin	Push-Pull	105 ░C	-65 ░C	0.11 in	2.79 mm	Unshrouded
TE Connectivity AMP Connectors 4-102979-0-12	2.54 µm	100 µin	All	3 A	Black	Square	Board to Board Cable	24	Male Pin	0.1 "	2.54 mm	Right Angle Through Hole	Gold	0.1 in	2.54 mm	0.238 "	6.05 mm	Solder	8.08 mm	0.318 in	UL94 V-0	Copper Alloy	Tin-Lead	Header Breakaway	2	Thermoplastic	0.76 Ám	30 Áin	Push-Pull	105 ░C	-65 ░C	0.11 in	2.79 mm	Unshrouded
TE Connectivity AMP Connectors 4-102979-0-07	2.54 µm	100 µin	All	3 A	Black	Square	Board to Board Cable	14	Male Pin	0.1 "	2.54 mm	Right Angle Through Hole	Gold	0.1 in	2.54 mm	0.238 "	6.05 mm	Solder	8.08 mm	0.318 in	UL94 V-0	Copper Alloy	Tin-Lead	Header Breakaway	2	Thermoplastic	0.76 Ám	30 Áin	Push-Pull	105 ░C	-65 ░C	0.11 in	2.79 mm	Unshrouded
TE Connectivity AMP Connectors 4-102979-0-31	2.54 µm	100 µin	All	3 A	Black	Square	Board to Board Cable	62	Male Pin	0.1 "	2.54 mm	Right Angle Through Hole	Gold	0.1 in	2.54 mm	0.238 "	6.05 mm	Solder	8.08 mm	0.318 in	UL94 V-0	Copper Alloy	Tin-Lead	Header Breakaway	2	Thermoplastic	0.76 Ám	30 Áin	Push-Pull	105 ░C	-65 ░C	0.11 in	2.79 mm	Unshrouded
TE Connectivity AMP Connectors 4-102979-0-21	2.54 µm	100 µin	All	3 A	Black	Square	Board to Board Cable	42	Male Pin	0.1 "	2.54 mm	Right Angle Through Hole	Gold	0.1 in	2.54 mm	0.238 "	6.05 mm	Solder	8.08 mm	0.318 in	UL94 V-0	Copper Alloy	Tin-Lead	Header Breakaway	2	Thermoplastic	0.76 Ám	30 Áin	Push-Pull	105 ░C	-65 ░C	0.11 in	2.79 mm	Unshrouded
