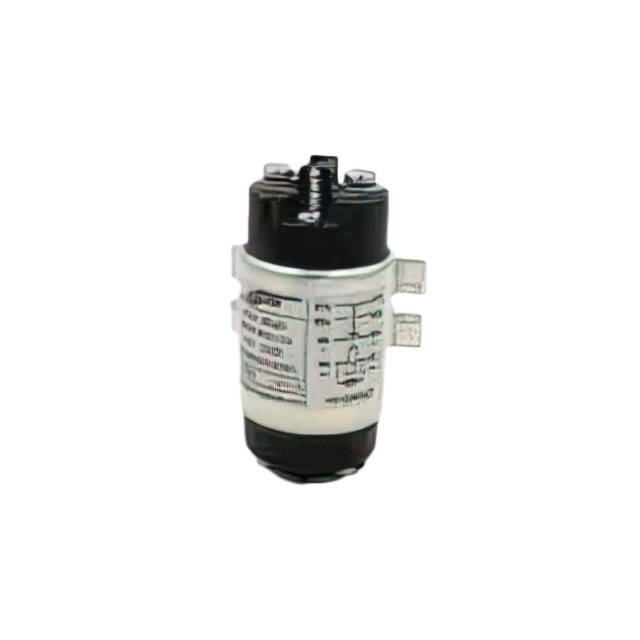

29-011 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
RELAY GEN PURPOSE SPST 75A 28V
| Part | Load - Max Switching | Contact Form | Must Release Voltage | Relay Type | Features | Termination Style | Must Operate Voltage | Contact Rating (Current) | Coil Voltage | Coil Current | Contact Material | Coil Type | Operate Time | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 10 W | SPST-NO (DM) (1 Form X) | 4 VDC | General Purpose | Diode | Screw Terminal | 18 VDC | 75 A | 28 VDC | 368.4 mA | Silver Tin Oxide (AgSnO) | Non Latching | 35 ms | 15 ms | 85 °C | -40 °C | Chassis Mount | 76 Ohms |
TE Connectivity Raychem Cable Protection | 10 W | SPST-NO (DM) (1 Form X) | 4 VDC | General Purpose | Diode | Screw Terminal | 18 VDC | 75 A | 28 VDC | 368.4 mA | Silver Tin Oxide (AgSnO) | Non Latching | 40 ms | 20 ms | 85 °C | -40 °C | Chassis Mount | 76 Ohms |
TE Connectivity Raychem Cable Protection | 8 W | SPST-NO (DM) (1 Form X) | 2 VDC | General Purpose | Diode | Screw Terminal | 9 VDC | 75 A | 12 VDC | 631.6 mA | Silver Tin Oxide (AgSnO) | Non Latching | 35 ms | 15 ms | 85 °C | -40 °C | Chassis Mount | 19 Ohms |
