AXE526 Series

Catalog

CONN SOCKET 26POS SMD GOLD

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights	Mounting Type	Connector Type	Number of Positions	Features	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Rows
Panasonic Electric Works AXE526127	0.016 in	0.4 mm	0.8 mm 1 mm	Surface Mount	Socket Center Strip Contacts	26	Solder Retention	Gold	0.03 in	0.75 mm	2

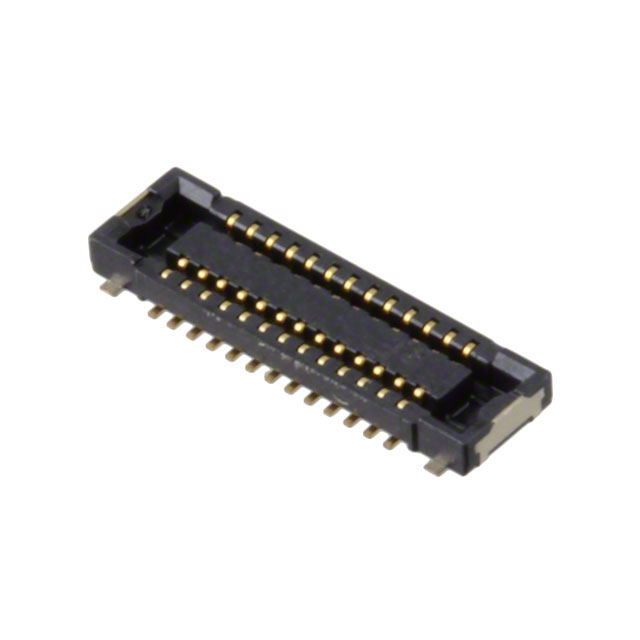

Panasonic Electric Works AXE526124	0.016 in	0.4 mm	0.8 mm 1 mm	Surface Mount	Socket Center Strip Contacts	26	Solder Retention	Gold	0.03 in	0.75 mm	2
