9280-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

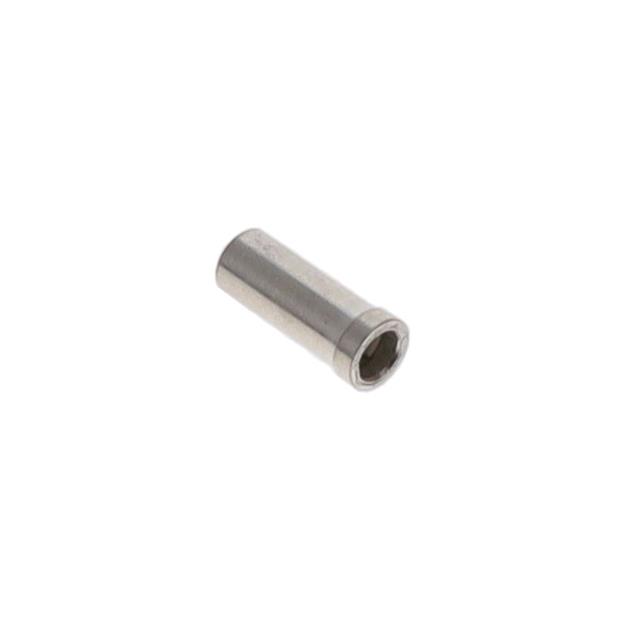

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Socket Depth [z] | Socket Depth [z] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall | Length - Overall | Tail Type | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.24 in | 6.1 mm | 0.11 in | 2.79 mm | Beryllium Copper | 0.102 in | 2.59 mm | 2.24 mm | 0.088 " | 1.22 mm | 0.064 in | 0.048 in | 1.63 mm | 200 Áin | 5.08 Ám | 0.28 in | 7.11 mm | No Tail | Solder | Tin |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.24 in | 6.1 mm | 0.11 in | 2.79 mm | Beryllium Copper | 0.102 in | 2.59 mm | 2.24 mm | 0.088 " | 1.22 mm | 0.064 in | 0.048 in | 1.63 mm | 10 Áin | 0.25 Ám | 0.28 in | 7.11 mm | No Tail | Solder | Gold |
