2081898 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

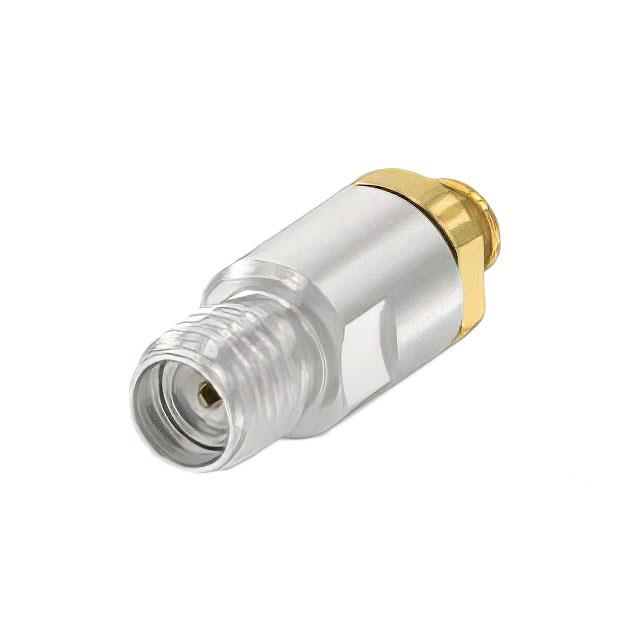

EP-SMA,JACK,STRAIGHT,27GHZ,047 C
| Part | Housing Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | Connector Type | Cable Group | Cable Group | Contact Termination | Mounting Type | Impedance | Dielectric Material | Center Contact Plating | Center Contact Material | Shield Termination | Body Material | Connector Style | Frequency - Max [Max] | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Silver | 335 V | -65 ░C | 165 °C | 1 | Female Socket Jack | Semi Rigid | 0.047 in | Solder | Free Hanging (In-Line) | 50 Ohms | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | Solder | Stainless Steel | SMA | 27 GHz | 500 |
