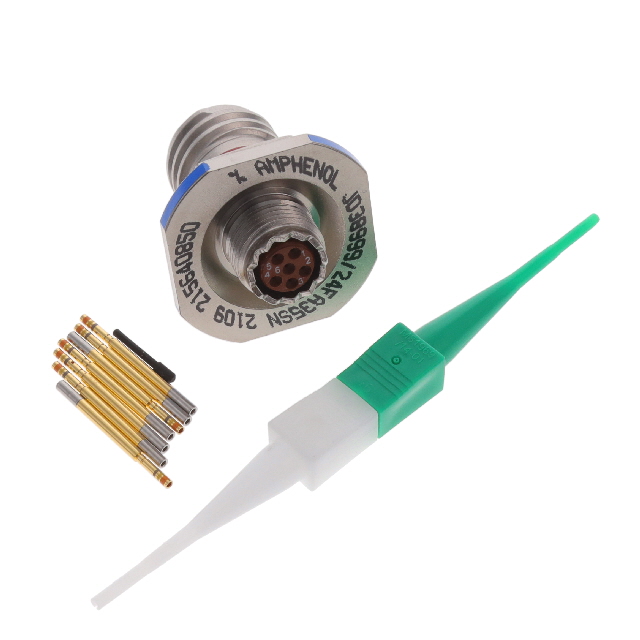

D38999/24FA Series
Manufacturer: Amphenol Aerospace Operations
Catalog
CONN RCPT HSNG FMALE 3POS PNL MT
| Part | Shell Size, MIL | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Connector Type | Housing Color | Mounting Feature | Contact Size | Note | Grade | Orientation | Contact Shape | Type | Shell Material | Qualification | Shell Finish | Shielding | Ingress Protection | Number of Positions | Contact Material | Color | Termination | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Contact Finish - Mating | Contact Size | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | A | 98 | 9 | -65 ░C | 200 °C | Crimp | Receptacle Housing | Silver | Bulkhead - Front Side Nut | 20 | Contacts Not Included | Military | A | Circular | For Female Sockets | Aluminum | MIL-DTL-38999 Series III | Electroless Nickel | Shielded | Environment Resistant | |||||||||||
Amphenol Aerospace Operations | A | 98 | 9 | -65 ░C | 200 °C | Crimp | Receptacle Housing | Silver | Bulkhead - Front Side Nut | 20 | Contacts Not Included | Military | B | Circular | For Female Sockets | Aluminum | MIL-DTL-38999 Series III | Electroless Nickel | Shielded | Environment Resistant | |||||||||||
Amphenol Aerospace Operations | A | 35 | 9 | -65 ░C | 200 °C | Receptacle Female Sockets | Bulkhead - Front Side Nut | Military | A | Aluminum | MIL-DTL-38999 Series III | Electroless Nickel | Shielded | Environment Resistant | 6 | Copper Alloy | Silver | Crimp | Aviation Marine Military | 2.54 çm | 100 çin | Metal | Gold | ||||||||
Amphenol Aerospace Operations | A | 35 | 9 | -65 ░C | 200 °C | Crimp | Receptacle Housing | Silver | Bulkhead - Front Side Nut | Contacts Not Included | Military | B | Circular | For Male Pins | Aluminum | MIL-DTL-38999 Series III | Electroless Nickel | Shielded | Environment Resistant | 6 | Metal | 22D | Thermoplastic | ||||||||
Amphenol Aerospace Operations | A | 35 | 9 | -65 ░C | 200 °C | Crimp | Receptacle Housing | Silver | Bulkhead - Front Side Nut | Contacts Not Included | Military | N | Circular | For Female Sockets | Aluminum | MIL-DTL-38999 Series III | Electroless Nickel | Shielded | Environment Resistant | 6 | 22D | ||||||||||
Amphenol Aerospace Operations | A | 35 | 9 | -65 ░C | 200 °C | Crimp | Receptacle Housing | Silver | Bulkhead - Front Side Nut | Contacts Not Included | Military | N | Circular | For Male Pins | Aluminum | MIL-DTL-38999 Series III | Electroless Nickel | Shielded | Environment Resistant | 6 | 22D | ||||||||||
 Amphenol Aerospace Operations | A | 35 | 9 | -65 ░C | 200 °C | Receptacle Female Sockets | Bulkhead - Front Side Nut | Military | N | Aluminum | MIL-DTL-38999 Series III | Electroless Nickel | Shielded | Environment Resistant | 6 | Copper Alloy | Silver | Crimp | Aerospace Aviation Marine Military | 1.27 µm | 50 µin | Metal | Gold | ||||||||
Amphenol Aerospace Operations | A | 35 | 9 | -65 ░C | 200 °C | Crimp | Receptacle Housing | Silver | Bulkhead - Front Side Nut | Contacts Not Included | Military | A | Circular | For Male Pins | Aluminum | MIL-DTL-38999 Series III | Electroless Nickel | Shielded | Environment Resistant | 6 | 22D | ||||||||||
Amphenol Aerospace Operations | A | 98 | 9 | -65 ░C | 200 °C | Crimp | Receptacle Housing | Silver | Bulkhead - Front Side Nut | 20 | Contacts Not Included | Military | B | Circular | For Female Sockets | Aluminum | MIL-DTL-38999 Series III | Electroless Nickel | Shielded | Environment Resistant | |||||||||||
Amphenol Aerospace Operations | A | 35 | 9 | -65 ░C | 200 °C | Male Pins Receptacle | Bulkhead - Front Side Nut | Military | B | Aluminum | MIL-DTL-38999 Series III | Electroless Nickel | Shielded | Environment Resistant | 6 | Copper Alloy | Silver | Crimp | Aviation Marine Military | 2.54 çm | 100 çin | Metal | Gold |
