3169-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

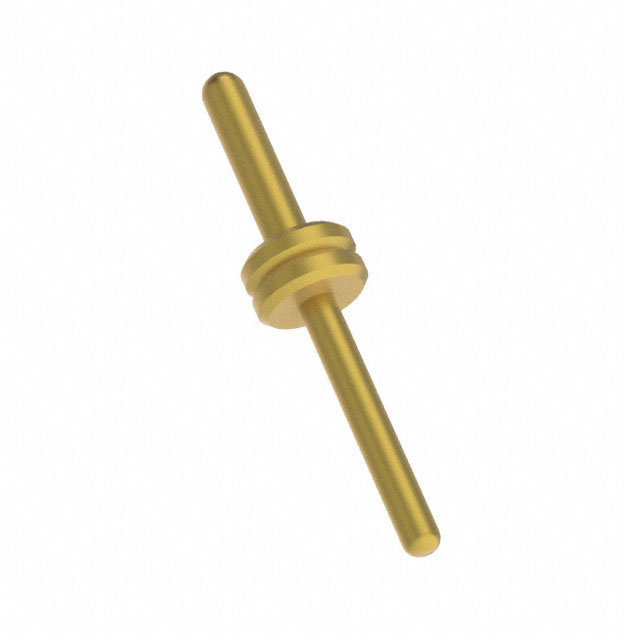

DOUBLE TAIL HEADER PIN
| Part | Terminal Style | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Insulation | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Termination | Contact Material | Terminal Type | Length - Above Flange [custom] | Length - Above Flange [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Double End | 0.022 in | 0.56 mm | Non-Insulated | Gold | 0.25 Ám | 10 Áin | 6.65 mm | 0.262 " | 0.056 " | 1.42 mm | 0.46 mm | 0.018 in | 0.132 " | 3.35 mm | Solder | Brass Alloy | PC Pin | 0.1 in | 2.54 mm | Through Hole |
