EBB Series
Manufacturer: Adam Tech
Beta
⌘K

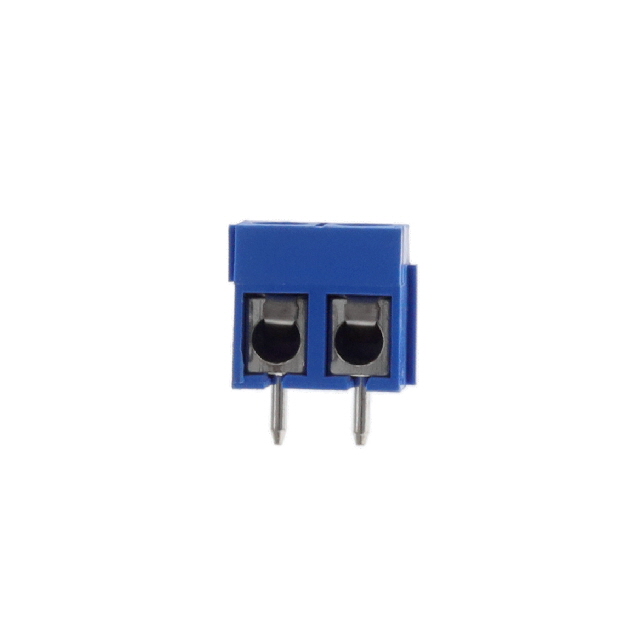

EUROBLOCK 2POS
| Part | Clamp Material - Plating [custom] | Screw Thread | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material - Plating | Torque - Screw | Torque - Screw | Housing Material | Screw Material - Plating | Features | Color | Mounting Type | Voltage | Pitch | Pitch | Number of Levels | Current | Wire Termination | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Stainless Steel | M2.6 | 115 °C | -40 C | Tin | 2.6 Lb-In | 0.3 Nm | Thermoplastic | Steel - Zinc Plated | Interlocking (Side) | Blue | Through Hole | 300 VDC | 5.08 mm | 0.2 in | 1 | 16 A | Screw - Leaf Spring Wire Guard | 14 AWG | 22 AWG | 2 | Horizontal with Board |
