725-150 Series
Manufacturer: EDAC Inc.
Beta
⌘K

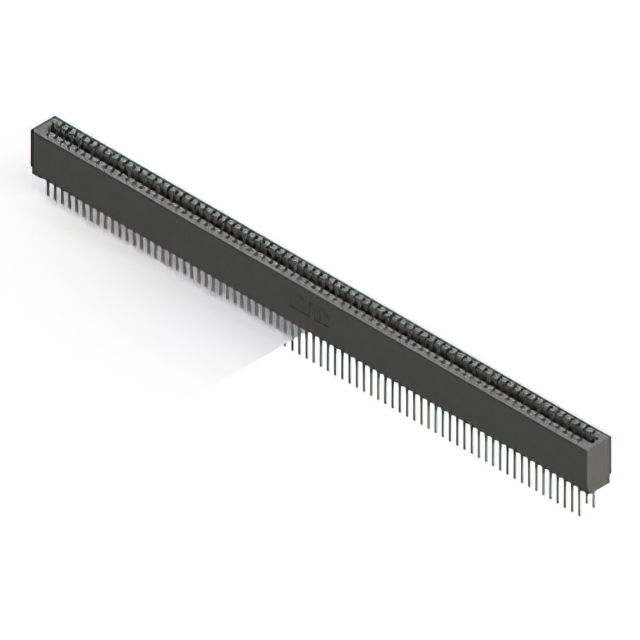

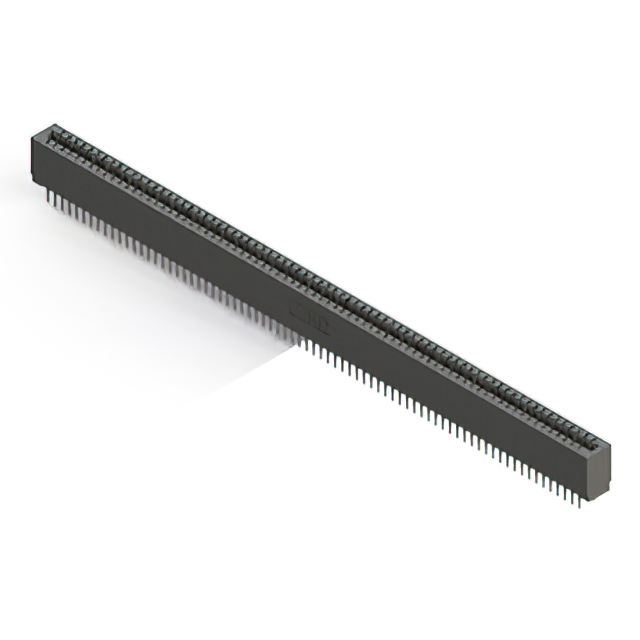

CONN EDGE DUAL FML 150POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Number of Rows [custom] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Mounting Type | Contact Type | Read Out | Gender | Contact Material | Color | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | -40 C | 105 ░C | 0.1 " | 2.54 mm | 150 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 75 | Through Hole | Cantilever | Dual | Female | Copper Alloy | Black | Press-Fit | Gold |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | -40 C | 105 ░C | 0.1 " | 2.54 mm | 150 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 75 | Through Hole | Cantilever | Dual | Female | Copper Alloy | Black | Press-Fit Wire Wrap | Gold |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | -40 C | 105 ░C | 0.1 " | 2.54 mm | 150 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 75 | Through Hole | Cantilever | Dual | Female | Copper Alloy | Black | Press-Fit | Gold |
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | -40 C | 105 ░C | 0.1 " | 2.54 mm | 150 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 75 | Through Hole | Cantilever | Dual | Female | Copper Alloy | Black | Press-Fit | Gold |
