C14611R024 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

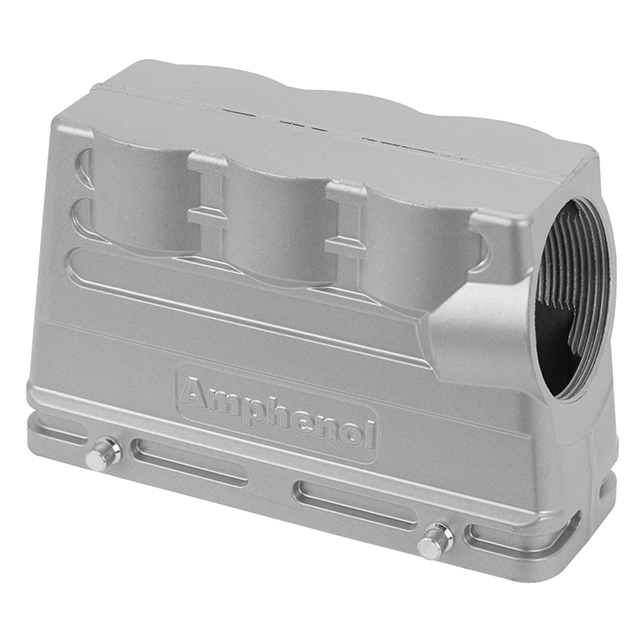

CONN HOOD SIDE ENTRY SZE24 M32

Part	Connector Type	Thread Size	Housing Color	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Housing Material	Lock Location	Style	Ingress Protection	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Size
Amphenol Tuchel Industrial C14611R0245008	Hood	M32	Gray	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	Aluminum Die Cast	Locking Clip (2) on Base Bottom	Side Entry	IP65 - Dust Tight Water Resistant	EMC Coating	125 °C	-40 C	E24
Amphenol Tuchel Industrial C14611R0246501	Hood	M25		43 mm	62 mm	2.441 "	120 mm	4.724 in	1.693 "	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	Top Entry	IP65 - Dust Tight Water Resistant	EMC Coating	125 °C	-40 C	E24
Amphenol Tuchel Industrial C14611R0246508	Hood	M25	Gray	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	Aluminum Die Cast	Locking Clip (2) on Base Bottom	Top Entry	IP65 - Dust Tight Water Resistant	EMC Coating	125 °C	-40 C	E24
Amphenol Tuchel Industrial C14611R0246001	Hood	M32		43 mm	62 mm	2.441 "	120 mm	4.724 in	1.693 "	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	Top Entry	IP65 - Dust Tight Water Resistant	EMC Coating	125 °C	-40 C	E24
Amphenol Tuchel Industrial C14611R0246008	Hood	M32	Gray	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	Aluminum Die Cast	Locking Clip (2) on Base Bottom	Top Entry	IP65 - Dust Tight Water Resistant	EMC Coating	125 °C	-40 C	E24
Amphenol Tuchel Industrial C14611R0246018	Hood		Gray	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	Aluminum Die Cast	Locking Clip (2) on Base Bottom	Top Entry	IP65 - Dust Tight Water Resistant	EMC Coating	125 °C	-40 C	E24
Amphenol Tuchel Industrial C14611R0245501	Hood	M25		43 mm	62 mm	2.441 "	120 mm	4.724 in	1.693 "	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	Side Entry	IP65 - Dust Tight Water Resistant	EMC Coating	125 °C	-40 C	E24
