AFB1212 Series

Catalog

FAN AXIAL 120X38MM 12VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Current Rating (Amps)	Static Pressure	Static Pressure	Noise	RPM	Bearing Type	Width [y]	Fan Type	Power (Watts)	Weight	Weight	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Weight [custom]	Weight [custom]

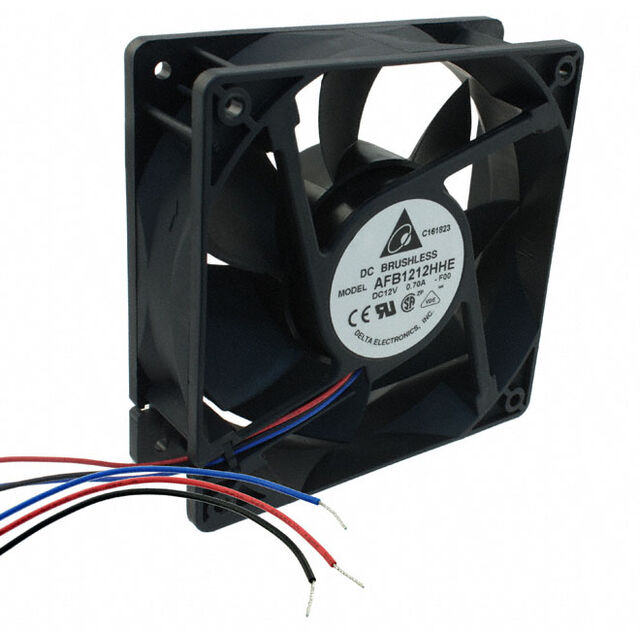

Delta Electronics AFB1212HHE-F00	70000 Hrs	Plastic	13.2 VDC	4 VDC	Plastic	460 mA	0.354 in H2O	88.2 Pa	44 dB(A)	2900 RPM	Ball	38 mm	Tubeaxial	5.52 W	0.565 lb	256.28 g	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	-10 °C	60 °C	120.1 CFM	3.36 m³/min	12 VDC	120 mm	120 mm	CE CSA UL VDE
Delta Electronics AFB1212GHE-C	70000 Hrs	Plastic	12.8 VDC	6 VDC	Plastic	2.45 A	1.082 in H2O	269.5 Pa	62 dB(A)	5200 RPM	Ball	38 mm	Tubeaxial	29.4 W				2 Wire Leads	-10 °C	70 °C	241 CFM	6.75 mł/min	12 VDC	120 mm	120 mm	CE CSA UL VDE	0.728 lb	330.22 g
Delta Electronics AFB1212VHE-R00	70000 Hrs	Plastic	13.2 VDC	4 VDC	Plastic	600 mA	0.42 in H2O	104.6 Pa	48 dB	3200 RPM	Ball	38 mm	Tubeaxial	7.2 W	0.565 lb	256.28 g	Locked Rotor Sensor	3 Wire Leads	-10 °C	60 °C	130 CFM	3.64 m³/min	12 VDC	120 mm	120 mm	CE CSA UL VDE
Delta Electronics AFB1212LE-R00	70000 Hrs	Plastic	13.2 VDC	4 VDC	Plastic	190 mA	0.18 in H2O	44.8 Pa	34 dB(A)	2000 RPM	Ball	38 mm	Tubeaxial	2.28 W	0.565 lb	256.28 g	Locked Rotor Sensor	3 Wire Leads	-10 °C	60 °C	84.8 CFM	2.37 m³/min	12 VDC	120 mm	120 mm	CE CSA UL VDE

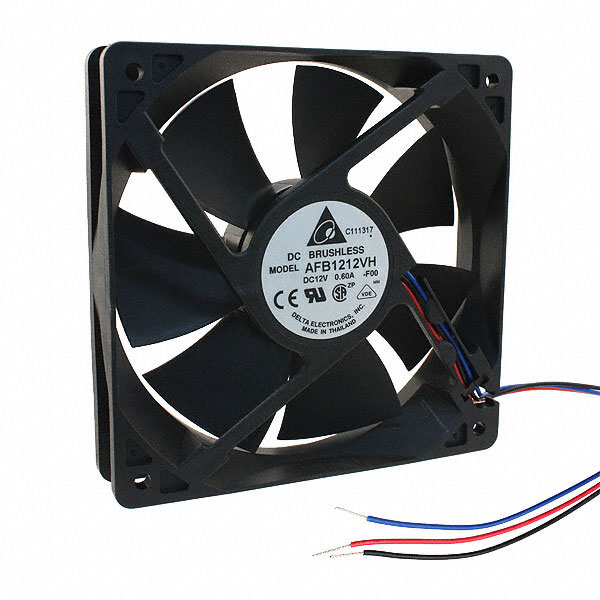

Delta Electronics AFB1212VH-F00	70000 Hrs	Plastic	13.8 VDC	7 V	Plastic	400 mA	0.371 in H2O	92.5 Pa	44.5 dB	3100 RPM	Ball	25.4 mm	Tubeaxial	4.8 W	0.437 lb	198 g	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	-10 °C	60 °C	103.8 CFM	2.91 mł/min	12 VDC	120 mm	120 mm	CE CSA UL VDE
Delta Electronics AFB1212VHE-CF00	70000 Hrs	Plastic	12.8 VDC	6 VDC	Plastic	0.68 A	0.602 in H2O	149.9 Pa	51 dB(A)	4000 RPM	Ball	38 mm	Tubeaxial	8.16 W	0.706 lb	320.24 g	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	-10 °C	70 °C	148.3 CFM	4.15 m³/min	12 VDC	120 mm	120 mm	CE CSA UL VDE
Delta Electronics AFB1212GHE-CF00	70000 Hrs	Plastic	12.8 VDC	6 VDC	Plastic	2.45 A	1.082 in H2O	269.5 Pa	62 dB(A)	5200 RPM	Ball	38 mm	Tubeaxial	29.4 W			Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	-10 °C	70 °C	241 CFM	6.75 mł/min	12 VDC	120 mm	120 mm	CE CSA UL VDE	0.728 lb	330.22 g

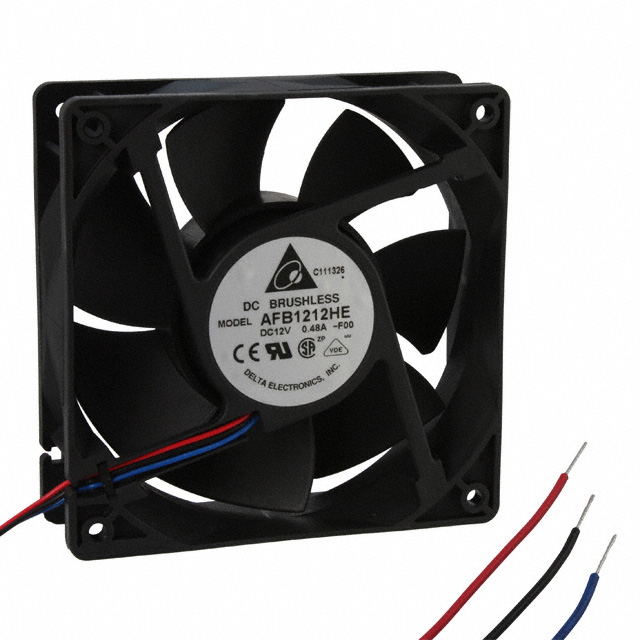

Delta Electronics AFB1212HE-F00	70000 Hrs	Plastic	13.2 VDC	4 VDC	Plastic	320 mA	0.3 in H2O	74.7 Pa	41 dB	2600 RPM	Ball	38 mm	Tubeaxial	3.84 W	0.565 lb	256.28 g	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	-10 °C	60 °C	105.9 CFM	2.97 m³/min	12 VDC	120 mm	120 mm	CE CSA UL VDE
Delta Electronics AFB1212EHE-CF00		Plastic	13.8 VDC	6 VDC	Plastic	1.8 A	0.844 in H2O	210.2 Pa	58.5 dB	4600 RPM	Ball	38 mm	Tubeaxial	21.6 W			Speed Sensor (Tach)	3 Wire Leads			212.6 CFM	5.95 m³/min	12 VDC	120 mm	120 mm	CE CSA UL VDE	0.728 lb	330.22 g

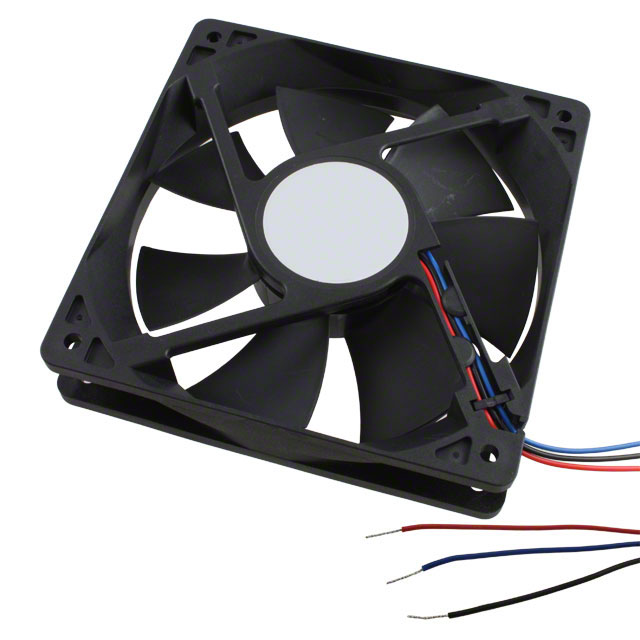

Delta Electronics AFB1212SH-R00	70000 Hrs	Plastic	13.8 VDC	7 V	Plastic	0.53 A	0.43 in H2O	107.1 Pa	46.5 dB	3400 RPM	Ball	25.4 mm	Tubeaxial	6.36 W	0.437 lb	198 g	Locked Rotor Sensor	3 Wire Leads	-10 °C	60 °C	113.1 CFM	3.17 mł/min	12 VDC	120 mm	120 mm	CE CSA UL VDE
