09302060 Series
Manufacturer: HARTING
Beta
⌘K
6B HOOD NO ENTRY, SINGLE LEVER, HIGH CONSTRUCTION - HIGH MATING CYCLE VERSION
| Part | Housing Color | Connector Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Lock Location | Size | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Housing Finish | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

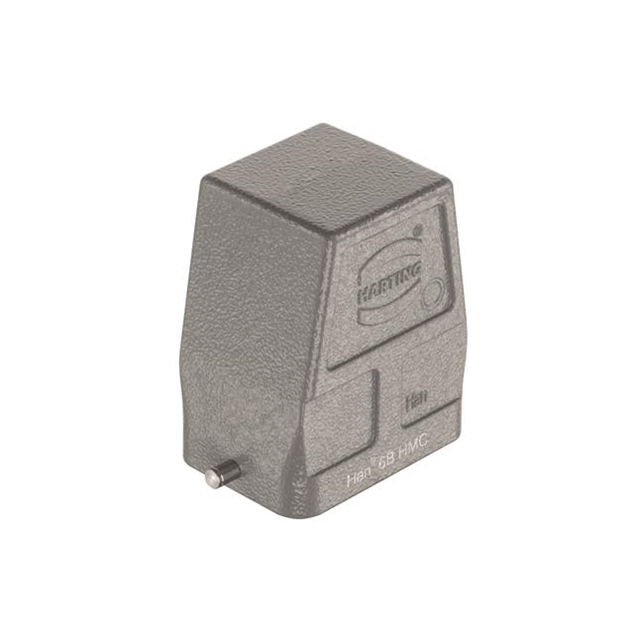

 HARTING | Gray | Hood | 2.343 " | 2.835 " | 1.693 " | 59.5 mm | 72 mm | 43 mm | Locking Clip (1) on Base Bottom | 6B | Aluminum Die Cast | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | Powder Coated | |

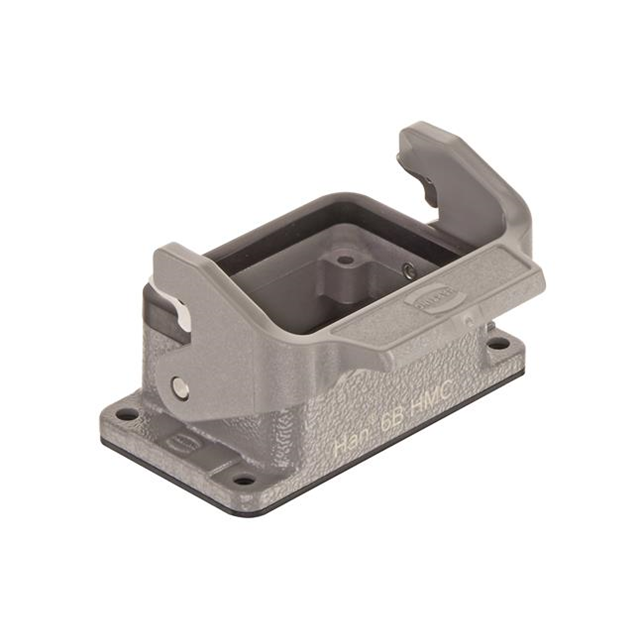

 HARTING | Gray | Base - Panel Mount | 3.15 " | 1.138 " | 1.709 " | 80 mm | 28.9 mm | 43.4 mm | Locking Clip (1) on Base Bottom | 6B | Aluminum Die Cast | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | Powder Coated | Bottom Entry |
