19432160 Series
Manufacturer: HARTING
Beta
⌘K

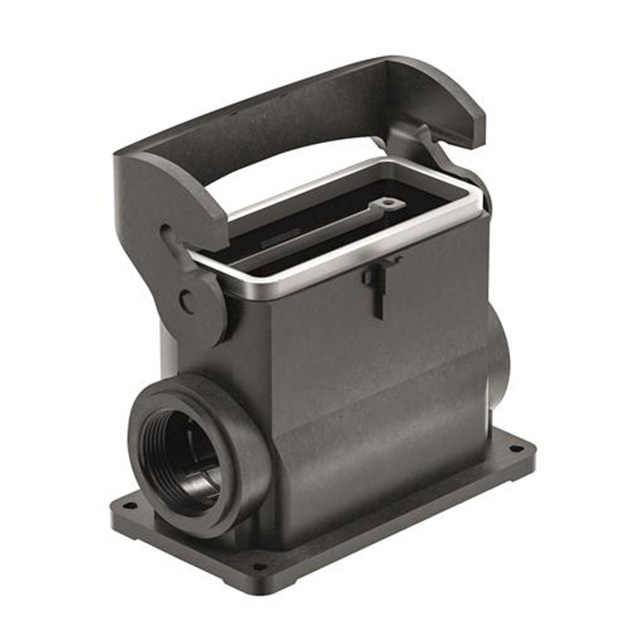

HEAVY DUTY CONNECTOR, IP66, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 16B
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Connector Type | Housing Color | Lock Location | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Style | Housing Material | Thread Size | Size | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 118 mm | 3.465 " | 4.646 in | 88 mm | 2.559 " | 65 mm | Base - Box Mount | Black | Locking Clip (1) on Base Bottom | IP66 - Dust Tight Water Resistant | 125 °C | -40 C | Side Entry | Glass Filled Nylon Polyamide (PA) | M32 | 16 B | |
 HARTING | 4.508 in 114.5 mm | 1.421 in 36.1 mm | 2.362 in 60 mm | Base - Panel Mount | Black | Locking Clip (2) on Base Bottom | IP66 - Dust Tight Water Resistant | 125 °C | -40 C | Bottom Entry | Glass Filled Nylon Polyamide (PA) | 16 B | |||||
HARTING | 118 mm | 3.465 " | 4.646 in | 88 mm | 2.559 " | 65 mm | Base - Box Mount | Black | Locking Clip (1) on Base Bottom | IP66 - Dust Tight Water Resistant | 125 °C | -40 C | Side Entry | Glass Filled Nylon Polyamide (PA) | M32 | 16 B | Feed Through |
 HARTING | 4.508 in 114.5 mm | 1.421 in 36.1 mm | 2.362 in 60 mm | Base - Panel Mount | Black | Locking Clip (1) on Base Bottom | IP66 - Dust Tight Water Resistant | 125 °C | -40 C | Bottom Entry | Glass Filled Nylon Polyamide (PA) | 16 B |
