M2024TX Series

Catalog

SWITCH ROCKER SP3T 0.4VA 28V

Part	Electrical Life	Mechanical Life	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Actuator Marking	Actuator Type	Approval Agency	Voltage Rating - AC	Switch Function	Mounting Type	Circuit
NKK Switches M2024TXG45-DH	50000 Cycles	50000 Cycles	Jumper needed to achieve triple throw	85 °C	-30 ░C	28 V	0.4 VA	PC Pin	No Marking	Concave	CSA UL	28 V	On-On-On	Right Angle Through Hole Vertical	SP3T
NKK Switches M2024TXG13

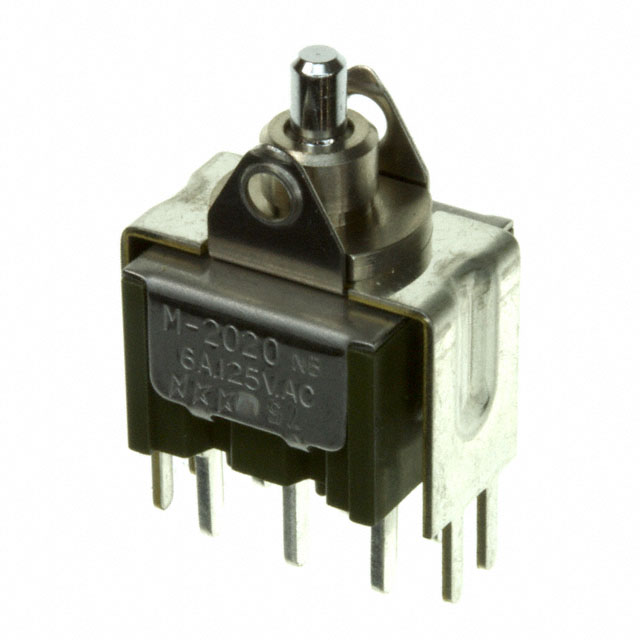

NKK Switches M2024TXW13	25000 Steps	50000 Cycles	Jumper needed to achieve triple throw	85 °C	-30 ░C	30 V	3 A 6 A	PC Pin	Varies by Cap	Actuator Arm Cap Required	CSA UL	125 V	On-On-On	Through Hole	SP3T

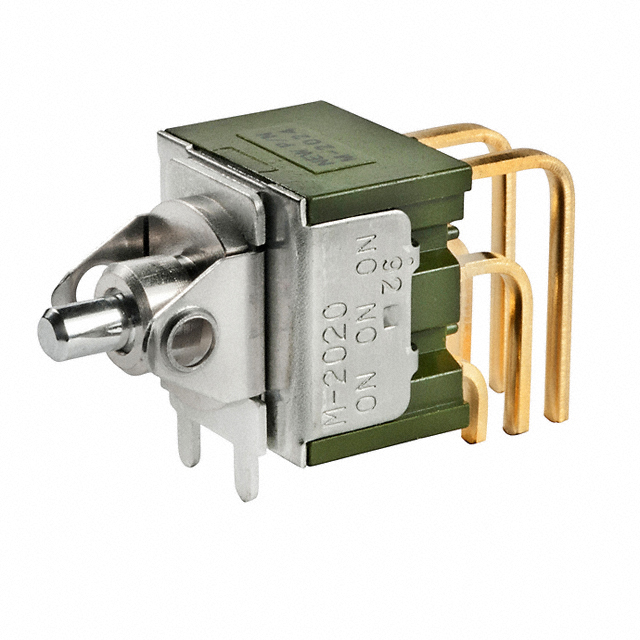

NKK Switches M2024TXG45	50000 Cycles	50000 Cycles	Jumper needed to achieve triple throw	85 °C	-30 ░C	28 V	0.4 VA	PC Pin	Varies by Cap	Actuator Arm Cap Required	CSA UL	28 V	On-On-On	Right Angle Through Hole Vertical	SP3T
