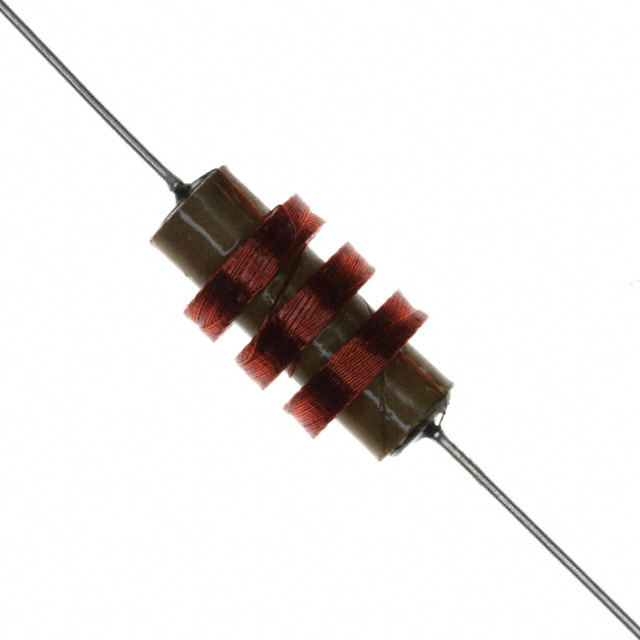

6306 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 10MH 100MA 31 OHM TH
| Part | DC Resistance (DCR) | Frequency - Self Resonant | Mounting Type | Q @ Freq | Type | Package / Case | Material - Core | Inductance | Shielding | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Inductance Frequency - Test | Size / Dimension [diameter] | Size / Dimension [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 31 Ohm | 710 kHz | Through Hole | 79.6 kHz 95 | Drum Core Wirewound | Axial | Ferrite | 10 mH | Unshielded | 5 % | -55 C | 105 ░C | 79.6 kHz | 0.53 " 13.46 mm | 0.875 in 22.22 mm | 100 mA |
