AMPMODU 50/50 Grid Series

Headers & Wire Housings minimatch 17 pos male

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

Headers & Wire Housings minimatch 17 pos male

Catalog

Headers & Wire Housings minimatch 17 pos male

Part	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Applications	Insulation Material	Current Rating (Amps)	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights	Insulation Height	Insulation Height	Number of Rows	Contact Finish - Post	Contact Material	Connector Type	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions	Fastening Type	Material Flammability Rating	Insulation Color	Pitch - Mating	Pitch - Mating	Mounting Type	Style	Contact Finish	Pitch [x]	Pitch [x]	Color	Wire Gauge	Row Spacing	Row Spacing	Wire Type	Features	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	For Use With/Related Products	Accessory Type	Voltage Rating
TE Connectivity Raychem Cable Protection 5-104693-1	All	3.05 mm	0.12 in	150 Áin	3.81 Ám	Solder	Automotive General Purpose Medical Military Telecommunications	Liquid Crystal Polymer (LCP)	500 mA	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	9.91 mm	9.33 mm	0.367 in	2	Tin	Phosphor Bronze	Header	Gold	0.05 in	1.27 mm	-65 ░C	105 ░C	Circular	10	Push-Pull	UL94 V-0	Black	0.05 in	1.27 mm	Surface Mount
TE Connectivity Raychem Cable Protection 6-104652-0	All			150 Áin	3.81 Ám	Solder		Liquid Crystal Polymer (LCP)		Female Socket		30 Áin	0.76 Ám	6.35 mm 8.13 mm 9.91 mm	4.75 mm	0.187 in	2	Tin	Copper Alloy	Receptacle	Gold	0.05 in	1.27 mm	-65 ░C	105 ░C	Square	100	Push-Pull		Black	0.05 in	1.27 mm	Surface Mount	Board to Board Cable

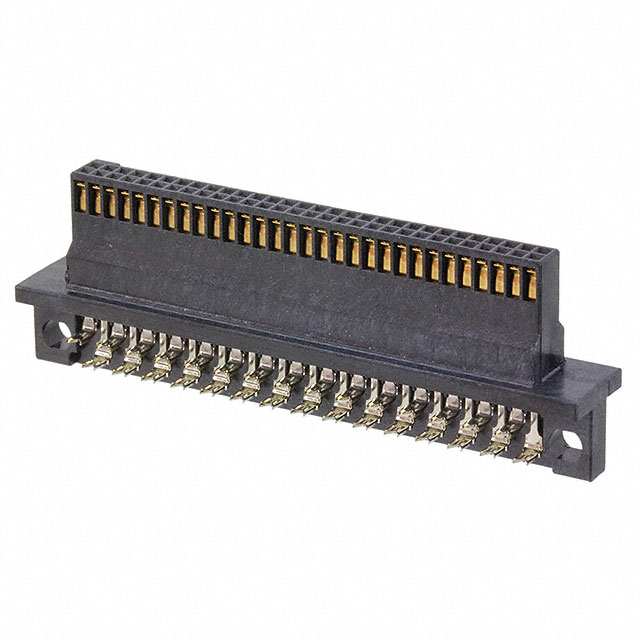

TE Connectivity Raychem Cable Protection 5-104893-7										Female Socket							2			Receptacle							70						Free Hanging (In-Line)		Gold	0.05 in	1.27 mm	Black	28 AWG	1.27 mm	0.05 in	Ribbon Cable	Closed End	0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection 104891-9																											90																				AMPMODU 50/50 Grid Series	Cap (Cover)
TE Connectivity Raychem Cable Protection 104892-8										Female Socket							2			Receptacle							80	Latch Lock					Free Hanging (In-Line)		Gold	0.05 in	1.27 mm	Black	28 AWG	1.27 mm	0.05 in	Ribbon Cable		0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection 5-104892-8										Female Socket							2			Receptacle							80	Latch Lock					Free Hanging (In-Line)		Gold	0.05 in	1.27 mm	Black	28 AWG	1.27 mm	0.05 in	Ribbon Cable		0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection 2267261-3
TE Connectivity Raychem Cable Protection 5-147384-1	All			150 Áin	3.81 Ám	Solder		Liquid Crystal Polymer (LCP)	500 mA	Female Socket		30 Áin	0.76 Ám	6.35 mm 8.13 mm 9.91 mm	4.75 mm	0.187 in	2	Tin	Copper Alloy	Receptacle	Gold	0.05 in	1.27 mm	-65 ░C	105 ░C	Square	10	Push-Pull	UL94 V-0	Black	0.05 in	1.27 mm	Surface Mount	Board to Board Cable									Board Lock Pick and Place						30 VAC
TE Connectivity Raychem Cable Protection 5-104655-7	All	3.05 mm	0.12 in	150 Áin	3.81 Ám	Solder	Automotive General Purpose Medical Military Telecommunications	Liquid Crystal Polymer (LCP)	500 mA	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	6.35 mm	5.74 mm	0.226 in	2	Tin	Phosphor Bronze	Header	Gold	0.05 in	1.27 mm	-65 ░C	105 ░C	Circular	60	Push-Pull	UL94 V-0	Black	0.05 in	1.27 mm	Surface Mount
TE Connectivity Raychem Cable Protection 104891-3																											30																				AMPMODU 50/50 Grid Series	Cap (Cover)
