634 Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB STANDARD CONNECTORS RIGHT ANGLE D-SUB CONNECTOR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Features | Backset Spacing | Backset Spacing | Number of Positions | Flange Feature | Connector Type | Termination | Current Rating (Amps) | Contact Finish | Contact Type | Mounting Type | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Number of Rows [custom] | Contact Finish Thickness | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

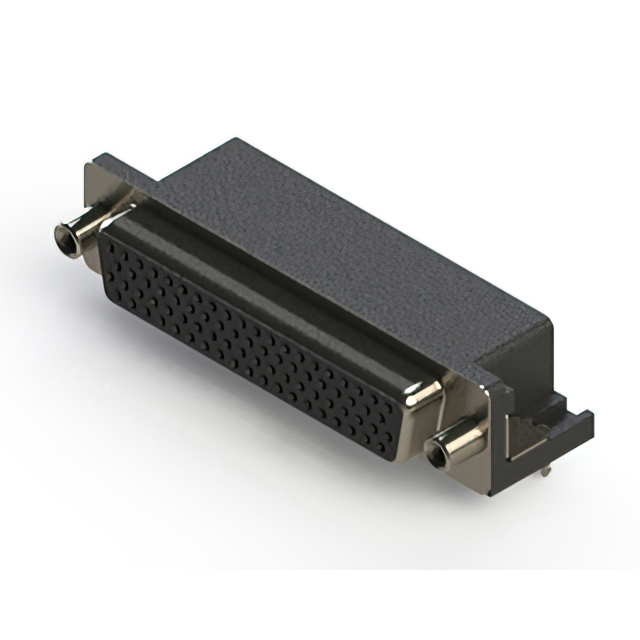

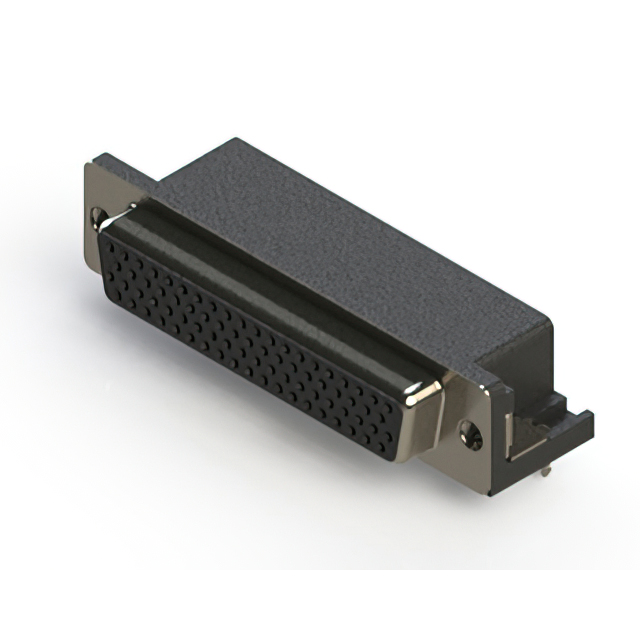

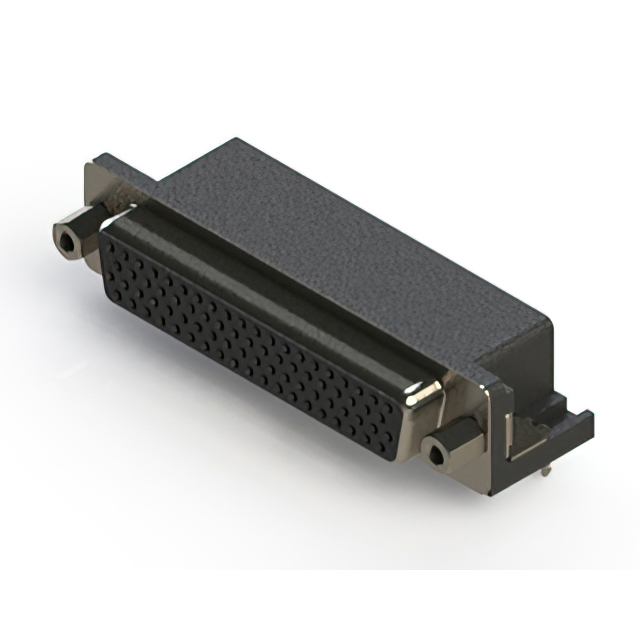

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Nickel Plated Steel | 0.38 µm | 15 µin | UL94 V-0 | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | 78 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Solder | 3 A | Gold | Signal | Board Edge Right Angle Through Hole | D-Sub High Density | |||||||
 EDAC Inc. | Nickel Plated Steel | UL94 V-0 | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | 26 | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | Solder | 3 A | Gold | Signal | Board Edge Right Angle Through Hole | D-Sub High Density | 2 | DA A | 3 | Flash | |||||||||
 EDAC Inc. | Nickel Plated Steel | 0.76 Ám | 30 Áin | UL94 V-0 | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | 62 | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | Solder | 3 A | Gold | Signal | Board Edge Right Angle Through Hole | D-Sub High Density | C DC | 3 | 4 | ||||||||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Nickel Plated Steel | 0.38 µm | 15 µin | UL94 V-0 | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | 78 | Housing/Shell (M3) | Receptacle Female Sockets | Solder | 3 A | Gold | Signal | Board Edge Right Angle Through Hole | D-Sub High Density | |||||||
 EDAC Inc. | Nickel Plated Steel | 0.38 µm | 15 µin | UL94 V-0 | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | 15 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Solder | 3 A | Gold | Signal | Board Edge Right Angle Through Hole | D-Sub High Density | 1 | 3 | (DE E) High Density | ||||||||
 EDAC Inc. | Nickel Plated Steel | 0.38 µm | 15 µin | UL94 V-0 | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | 44 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Solder | 3 A | Gold | Signal | Board Edge Right Angle Through Hole | D-Sub High Density | 3 | 3 | |||||||||
 EDAC Inc. | Nickel Plated Steel | 0.76 Ám | 30 Áin | UL94 V-0 | Mounting Brackets Shielded | 8.89 mm | 0.35 in | 44 | Housing/Shell | Receptacle Female Sockets | Solder | 3 A | Gold | Signal | Board Edge Right Angle Through Hole | D-Sub High Density | 3 | 3 | 4-40 | ||||||||
 EDAC Inc. | Nickel Plated Steel | 0.38 µm | 15 µin | UL94 V-0 | Mounting Brackets Shielded | 8.89 mm | 0.35 in | 15 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Solder | 3 A | Gold | Signal | Board Edge Right Angle Through Hole | D-Sub High Density | 1 | 3 | (DE E) High Density | ||||||||
 EDAC Inc. | Nickel Plated Steel | UL94 V-0 | Mounting Brackets Shielded | 8.89 mm | 0.35 in | 62 | 4-40 | Receptacle Female Sockets | Solder | 3 A | Gold | Signal | Board Edge Right Angle Through Hole | D-Sub High Density | C DC | 3 | Flash | 4 | |||||||||
 EDAC Inc. | Nickel Plated Steel | 0.38 µm | 15 µin | UL94 V-0 | Board Lock Mounting Brackets Shielded | 8.89 mm | 0.35 in | 15 | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | Solder | 3 A | Gold | Signal | Board Edge Right Angle Through Hole | D-Sub High Density | 1 | 3 | (DE E) High Density |
