5279/15C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

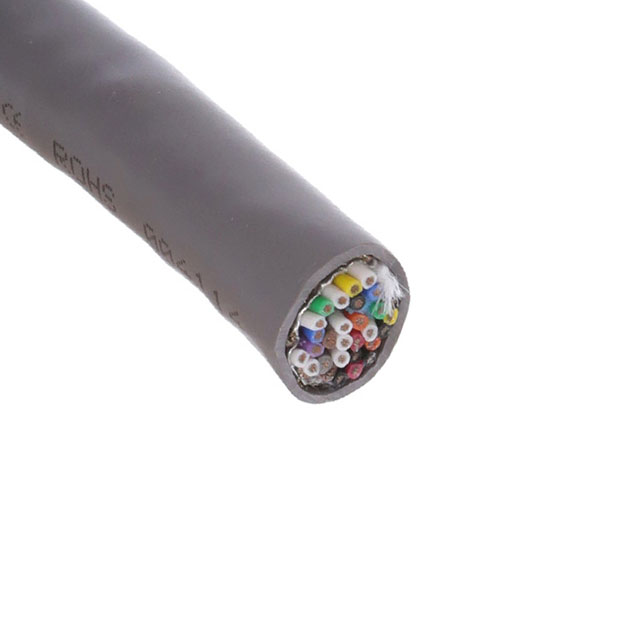

MULTI-PAIR 30COND 24AWG 100'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Conductor Material | Number of Conductors | Cable Type | Jacket Color | Ratings | Wire Gauge | Features | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Usage | Shield Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | Copper Tinned | 30 | Multi-Pair | Slate | ISO 10993 | 24 AWG | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 0.429 in | 10.9 mm | -35 °C | 105 ░C | 100 ft | 30.5 m | 7 | 32 AWG | 300 VDC | Communication Control | Braid Foil | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | Copper Tinned | 30 | Multi-Pair | Slate | ISO 10993 | 24 AWG | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 0.429 in | 10.9 mm | -35 °C | 105 ░C | 7 | 32 AWG | 300 VDC | Communication Control | Braid Foil | ||||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | Copper Tinned | 30 | Multi-Pair | Black | ISO 10993 | 24 AWG | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 0.429 in | 10.9 mm | -35 °C | 105 ░C | 7 | 32 AWG | 300 VDC | Communication Control | Braid Foil | 304.8 m | 1000 ft |
