25012 Series

Catalog

MULTICONDUCTOR CABLE, UNSHIELDED, 2 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M

Part	Features	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Voltage	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Material	Jacket (Insulation) Material	Length [x]	Length [x]	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Spool Size [x]	Spool Size [x]	Length

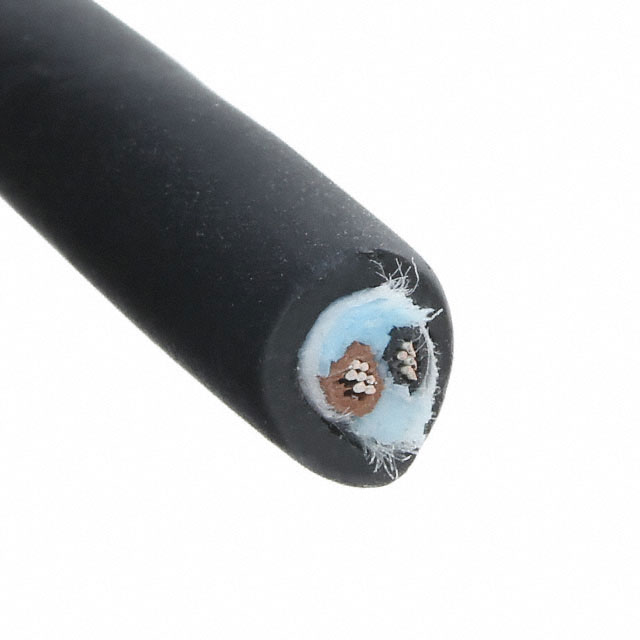

ALPHA WIRE 25012 BK005	Biological Compatibility Rip Cord	Black	-30 ░C	90 °C	ISO 10993 UL Style 20668	2	7	32 AWG	Multi-Conductor	300 VDC	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	24 AWG	Copper Tinned	Polyurethane (PU)	100 ft	30.5 m	0.156 in	3.96 mm
ALPHA WIRE 25012 BK199	Biological Compatibility Rip Cord	Black	-30 ░C	90 °C	ISO 10993 UL Style 20668	2	7	32 AWG	Multi-Conductor	300 VDC	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	24 AWG	Copper Tinned	Polyurethane (PU)			0.156 in	3.96 mm	304.8 m	1000 ft	Enter Number of Feet in Order Quantity
