SRL91-2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

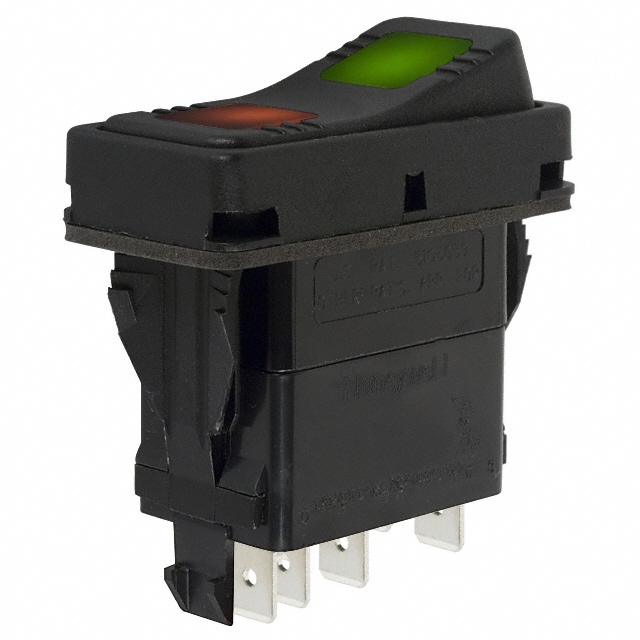

SWITCH ROCKER DPST 15A 125V
| Part | Actuator Marking | Illumination Type, Color | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Actuator Type | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Ingress Protection | Electrical Life | Circuit | Current Rating (Amps) | Illumination Voltage (Nominal) | Switch Function | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | No Marking | LED Red | 150000 Cycles | 85 °C | -40 °C | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 125 V | 20.82 mm | 36.83 mm | IP68 - Dust Tight Waterproof | 100000 Cycles | DPST | 15 A | 12 VDC | On-Off | Black |
 Honeywell Sensing and Productivity Solutions | No Marking | Amber/Green LED | 150000 Cycles | 85 °C | -40 °C | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 125 V | 20.82 mm | 36.83 mm | IP68 - Dust Tight Waterproof | 100000 Cycles | DPST | 15 A | 12 VDC | On-Off | Black |
