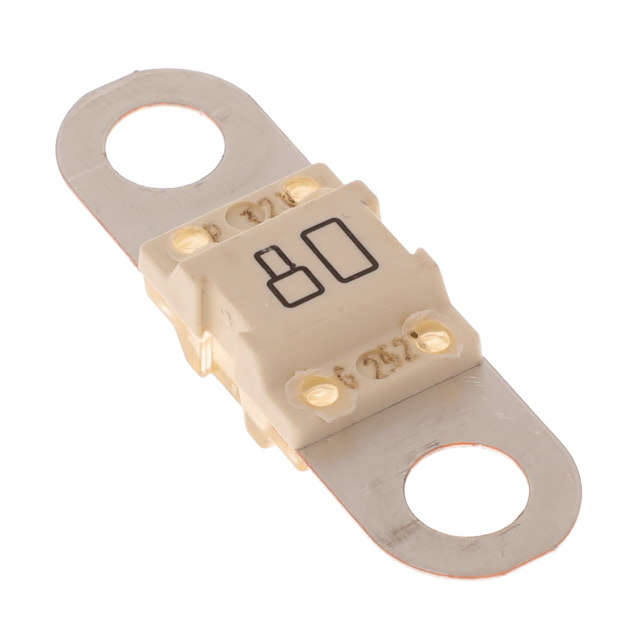

153.7010.5802 Series

Fuse - BF1 M6 32V/2000A DC, 80A 1000 pc

Catalog

Fuse - BF1 M6 32V/2000A DC, 80A 1000 pc

Part	Response Time	Melting I²t	Approval Agency	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Breaking Capacity @ Rated Voltage	Voltage Rating - DC	DC Cold Resistance	Package / Case	Current Rating (Amps)	Fuse Type	Color
Littelfuse/Commercial Vehicle Products 153.7010.5802	Slow Blow	25600	UL	Bolt Mount	0.472 "	12 mm	0.63 "	0.323 "	8.2 mm	16 mm	2 kA	32 V	0.00055 Ohms	Auto Link	80 A	Automotive	Clear

Fuse - BF1 M6 32V/2000A DC, 80A 1000 pc

• White housing indicates 80 A rating

• Interrupting rating of 2000 A at 32 V dc

• Tin-plated copper alloy terminals

• Refers to ISO 8820-5:2015

• UL Recognized in Canada and United States as a UL Special Purpose Fuse

This 80 A BF1 32V bolt-down automotive fuse employs SLO-BLO® technology to provide time-delayed protection for high-current wiring harnesses.
