MX34R12V Series
Manufacturer: JAE Electronics
Beta
⌘K

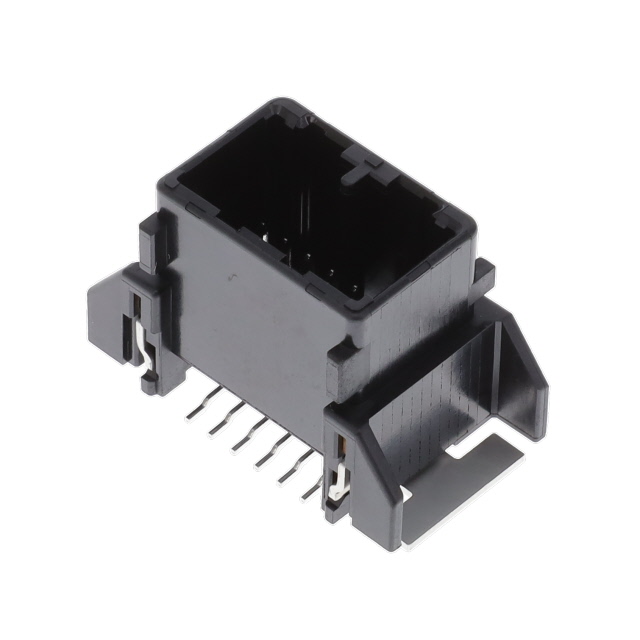

CONN HEADER SMD 12POS 2.2MM
| Part | Applications | Style | Contact Shape | Contact Finish - Post | Features | Shrouding | Fastening Type | Connector Type | Mounting Type | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Row Spacing - Mating | Row Spacing - Mating | Number of Rows [custom] | Number of Positions | Contact Length - Mating | Contact Length - Mating | Contact Material | Contact Type | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Insulation Material | Termination | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Board to Cable/Wire | Square | Tin | Board Guide Solder Retention | Shrouded - 4 Wall | Locking Ramp | Header | Surface Mount | All | 85 °C | -40 C | 0.118 in | 3 mm | 2 | 12 | 0.283 in | 7.19 mm | Copper Alloy | Male Pin | 3 A | 0.087 in | 2.2 mm | 19.5 mm | 0.768 in | Polyphenylene Sulfide (PPS) Glass Filled | Solder | Black |
