726-032 Series
Manufacturer: EDAC Inc.
Beta
⌘K

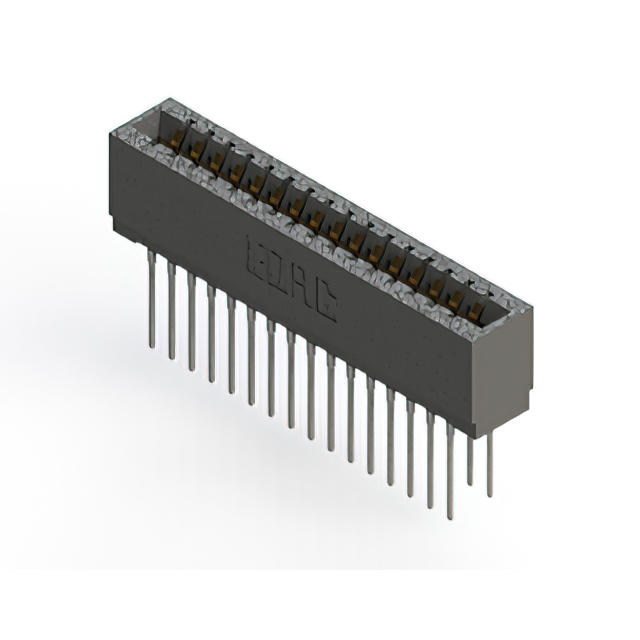

CONN EDGE SGL FMALE 32POS 0.125
| Part | Material - Insulation | Termination Rows | Number of Rows | Contact Type | Card Type | Number of Positions/Bay/Row | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Read Out | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Color | Gender | Termination | Contact Finish Thickness | Contact Finish Thickness | Termination Rows [custom] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | Cantilever | Non Specified - Single Edge | 32 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Gold | -40 C | 105 ░C | 3.18 mm | 0.125 in | Black | Female | Press-Fit | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | Cantilever | Non Specified - Single Edge | 32 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Gold | -40 C | 105 ░C | 3.18 mm | 0.125 in | Black | Female | Press-Fit | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | Cantilever | Non Specified - Single Edge | 32 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Gold | -40 C | 105 ░C | 3.18 mm | 0.125 in | Black | Female | Press-Fit | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 1 | Cantilever | Non Specified - Single Edge | 32 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Single | Gold | -40 C | 105 ░C | 3.18 mm | 0.125 in | Black | Female | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | 16 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Dual | Gold | -40 C | 105 ░C | 3.18 mm | 0.125 in | Black | Female | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | 2 | 2 |
