395-120 Series
Manufacturer: EDAC Inc.
Beta
⌘K

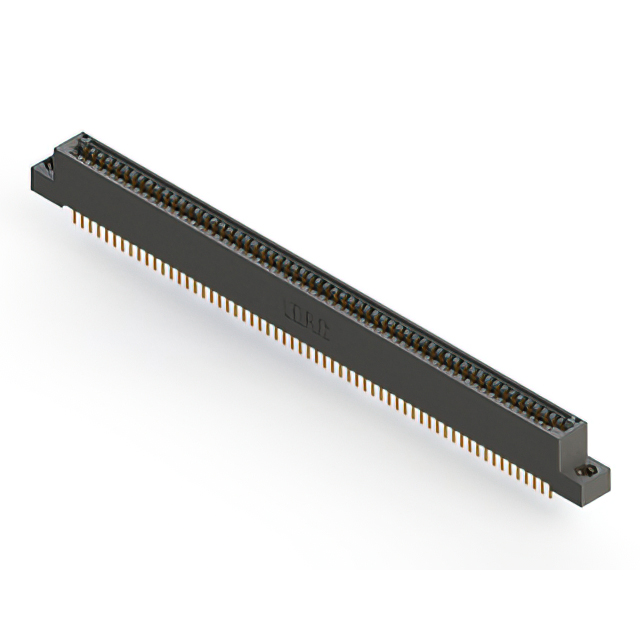

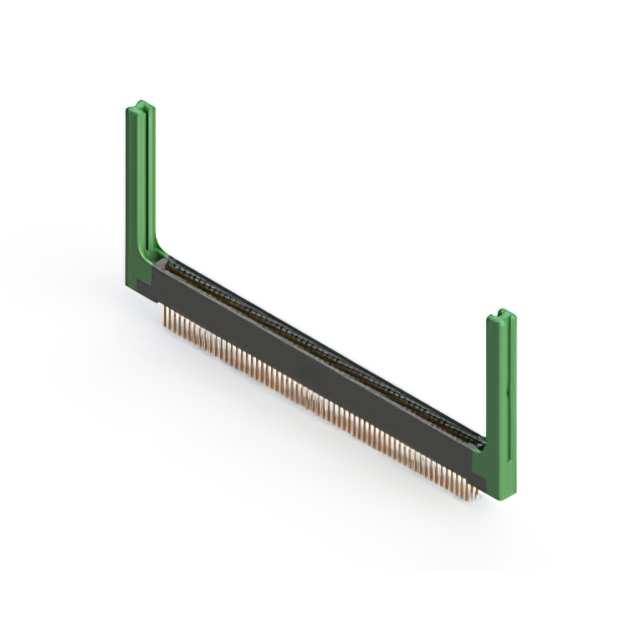

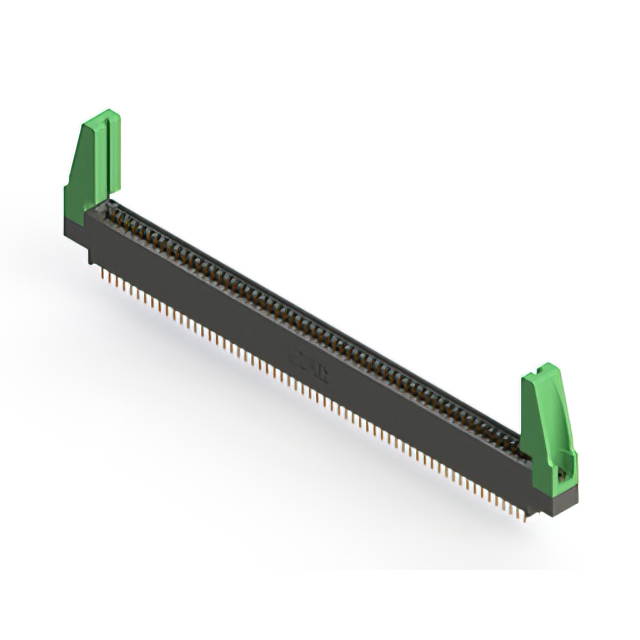

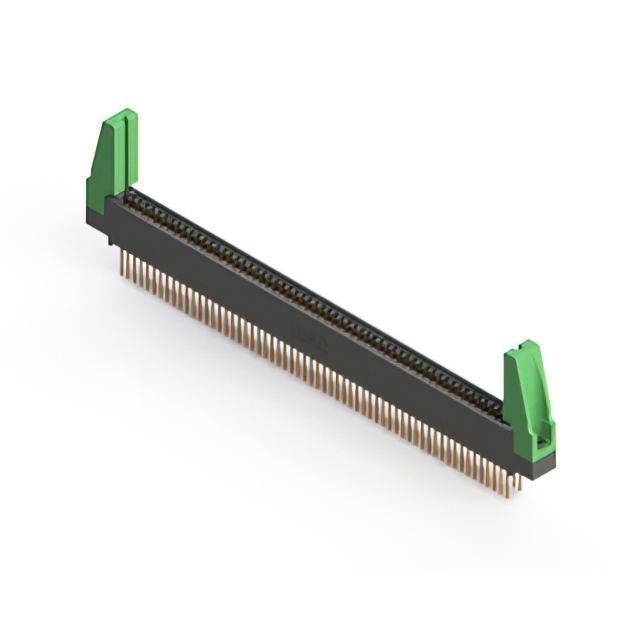

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Color | Gender | Number of Rows [custom] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Termination | Read Out | Pitch | Pitch | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 2 | 60 | 0.156 " | 3.96 mm | 120 | Solder | Dual | 0.1 " | 2.54 mm | Right Angle Through Hole | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 2 | 60 | 120 | Wire Wrap | Dual | 0.1 " | 2.54 mm | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 2 | 60 | 0.156 " | 3.96 mm | 120 | Wire Wrap | Dual | 0.1 " | 2.54 mm | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 2 | 60 | 120 | Solder | Dual | 0.1 " | 2.54 mm | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 2 | 60 | 120 | Solder | Dual | 0.1 " | 2.54 mm | Right Angle Through Hole | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 2 | 60 | 0.116 " | 2.95 mm | 120 | Solder | Dual | 0.1 " | 2.54 mm | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | Floating Bobbin Top Mount Opening | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 2 | 60 | 120 | Solder | Dual | 0.1 " | 2.54 mm | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 2 | 60 | 120 | Wire Wrap | Dual | 0.1 " | 2.54 mm | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 2 | 60 | 0.116 " | 2.95 mm | 120 | Solder | Dual | 0.1 " | 2.54 mm | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C | Floating Bobbin Top Mount Opening | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 2 | 60 | 0.156 " | 3.96 mm | 120 | Solder | Dual | 0.1 " | 2.54 mm | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | -40 C | 105 ░C |
