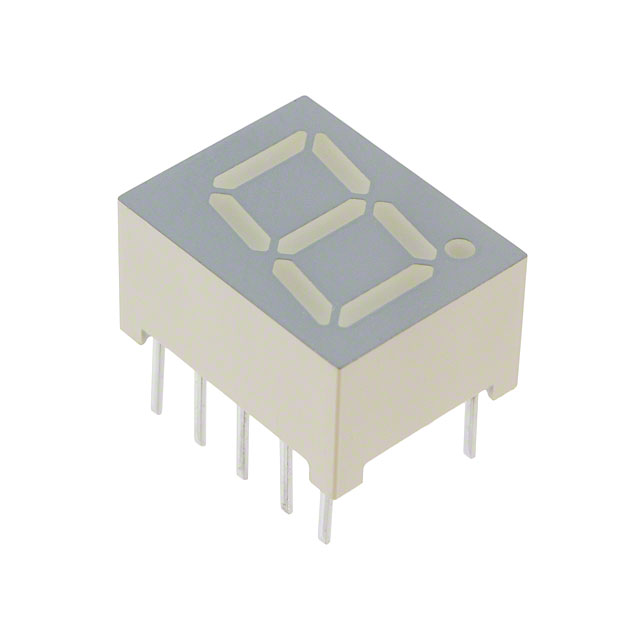

SC39-11 Series

Catalog

DISPLAY 7SEG 0.39" SGL RED 10DIP

Part	Millicandela Rating	Wavelength - Peak	Package / Case	Display Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Digit/Alpha Size	Digit/Alpha Size	Color	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Common Pin	Current - Test	Number of Characters

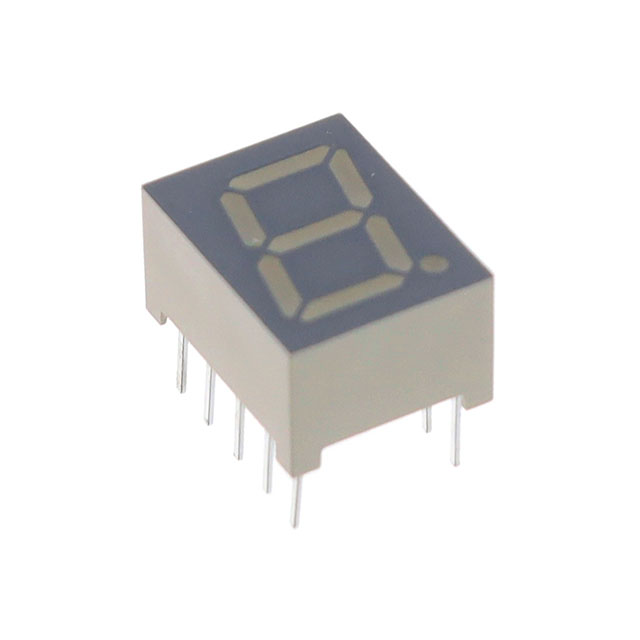

Kingbright SC39-11SURKWA	46 mcd	645 nm	10-DIP (0.300" 7.62mm)	7-Segment	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10 mm	0.39 in	Red	1.95 V	75 mw	Common Cathode	20 mA	1
Kingbright SC39-11CGKWA	21 mcd		10-DIP (0.300" 7.62mm)	7-Segment	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10 mm	0.39 in	Green	2.1 V	75 mw	Common Cathode	20 mA	1

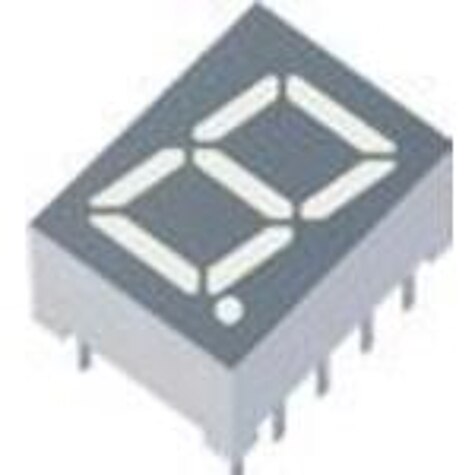

Kingbright SC39-11SYKWA	86 mcd	590 nm	10-DIP (0.300" 7.62mm)	7-Segment	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10 mm	0.39 in	Yellow	2 V	75 mw	Common Cathode	20 mA	1
Kingbright SC39-11GWA		565 nm	10-DIP (0.300" 7.62mm)	7-Segment	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10 mm	0.39 in	Green	2.2 V	62.5 mW	Common Cathode	20 mA	1
Kingbright SC39-11SRWA	17 mcd	660 nm	10-DIP (0.300" 7.62mm)	7-Segment	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10 mm	0.39 in	Red	1.85 V	75 mw	Common Cathode	20 mA	1
Kingbright SC39-11EWA	4.1 mcd	627 nm	10-DIP (0.300" 7.62mm)	7-Segment	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10 mm	0.39 in	Red	2 V	75 mw	Common Cathode	20 mA	1
Kingbright SC39-11YWA	3 mcd	590 nm	10-DIP (0.300" 7.62mm)	7-Segment	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10 mm	0.39 in	Yellow	2.1 V	75 mw	Common Cathode	20 mA	1
