2399941 Series

Catalog

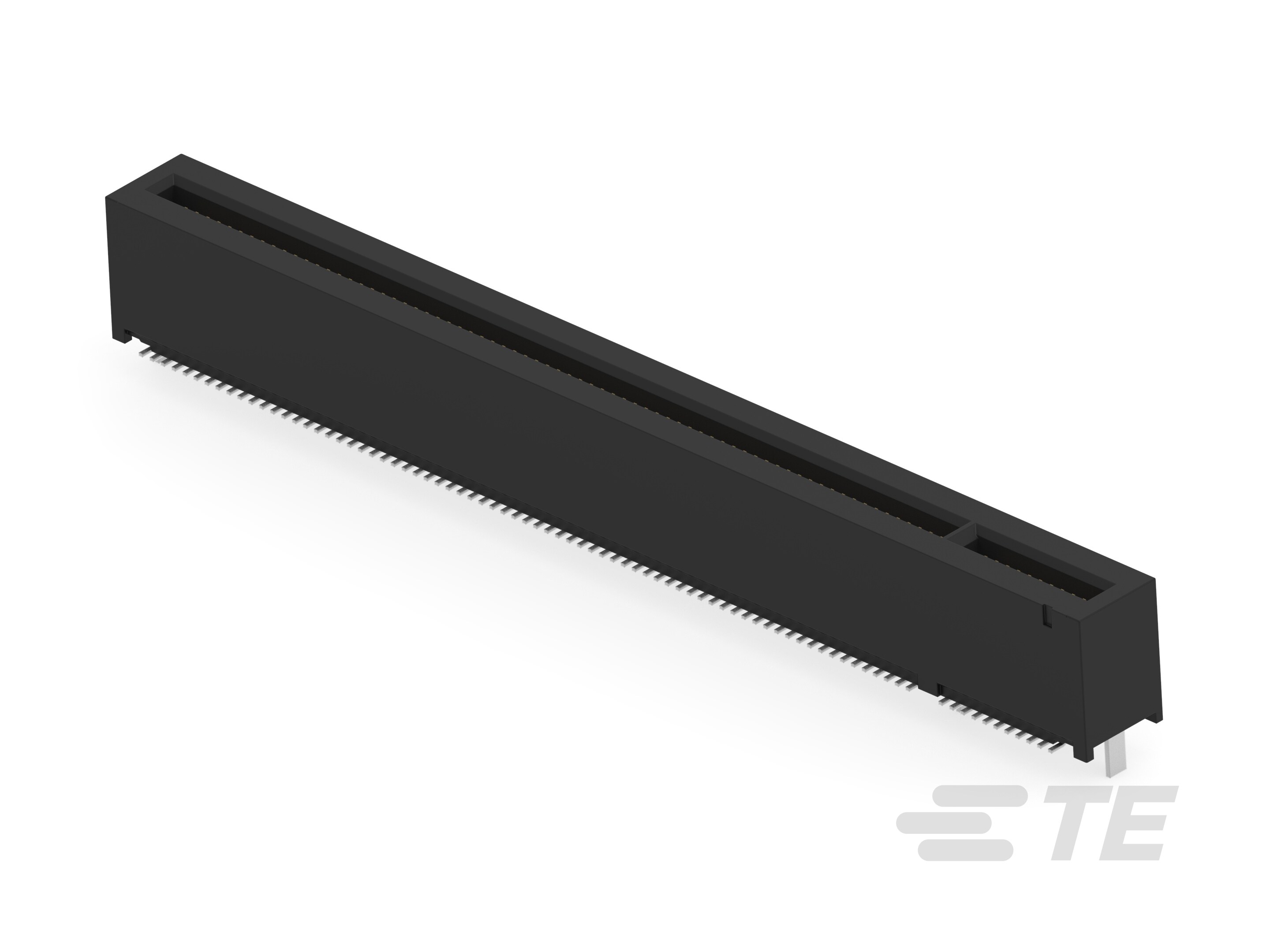

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 164 CONTACTS, SURFACE MOUNT, STRAIGHT

Part	Color	Contact Type	Material - Insulation [custom]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Termination Rows	Termination	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Features	Contact Finish	Number of Positions	Card Type	Number of Rows	Read Out	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 2-2399941-4	Black	Cantilever	Plastic	Copper Alloy	0.76 Ám	30 Áin	Surface Mount	2	Solder	0.039 in	1 mm	0.062 in	1.57 mm	Board Guide Locking Ramp Solder Retention	Gold	164	PCI Express™	2	Dual	71	11	85 °C	-40 °C	Female
TE Connectivity Raychem Cable Protection 2399941-4	Black	Cantilever	Plastic	Copper Alloy			Surface Mount	2	Solder	0.039 in	1 mm	0.062 in	1.57 mm	Board Guide Locking Ramp Solder Retention	Gold	164	PCI Express™	2	Dual	71	11	85 °C	-40 °C	Female	Flash
TE Connectivity Raychem Cable Protection 4-2399941-4	Black	Cantilever	Plastic	Copper Alloy	0.38 µm	15 µin	Surface Mount	2	Solder	0.039 in	1 mm	0.062 in	1.57 mm	Board Guide	Gold	164	PCI Express™	2	Dual	71	11	85 °C	-40 °C	Female
