Pt0 Series Series

Pluggable Terminal Blocks 10 Pos 5mm pitch Plug 26-14 AWG Screw Sealed Power Toggle Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Pluggable Terminal Blocks 10 Pos 5mm pitch Plug 26-14 AWG Screw Sealed Power Toggle Switch

Part	Circuit	Ingress Protection	Voltage Rating - DC	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Switch Function	Features	Illumination	Bushing Thread	Actuator Length [x]	Actuator Material	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC
Littelfuse/Commercial Vehicle Products PT202SQQ	DPST	IP66/IP68	28 V	15 A	12.4 mm	Standard Round	Quick Connect - 0.250" (6.3mm)	On-Off	Sealed	Non-Illuminated	15/32-32	17.2 mm	Stainless Steel	10000 Cycles	85 °C	-40 °C	277 V
Littelfuse/Commercial Vehicle Products PT205SZQ	DPDT	IP66/IP68	28 V	10 A	12.4 mm	Standard Round	Solder Lug	Mom-Off-Mom	Sealed	Non-Illuminated	15/32-32	17.2 mm	Stainless Steel	10000 Cycles	85 °C	-40 °C	277 V

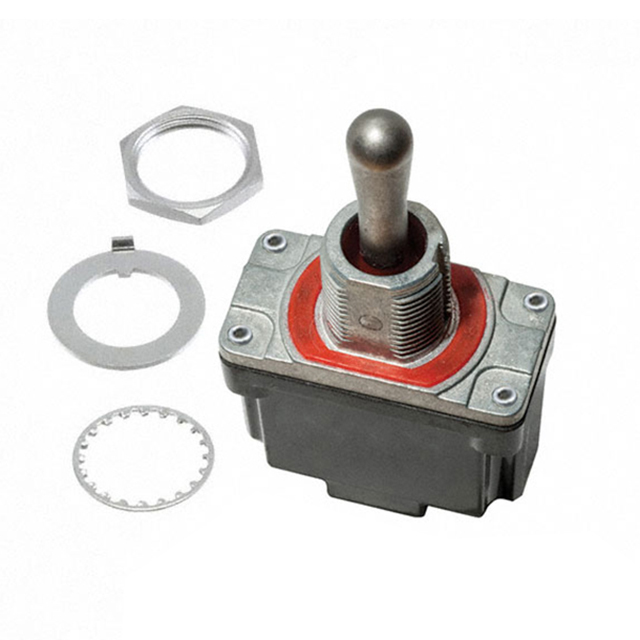

Littelfuse/Commercial Vehicle Products PT102SZQ	SPST	IP66/IP68	28 V	15 A	12.4 mm	Standard Round	Solder Lug	On-Off	Sealed	Non-Illuminated	15/32-32	17.2 mm	Stainless Steel	10000 Cycles	85 °C	-40 °C	277 V

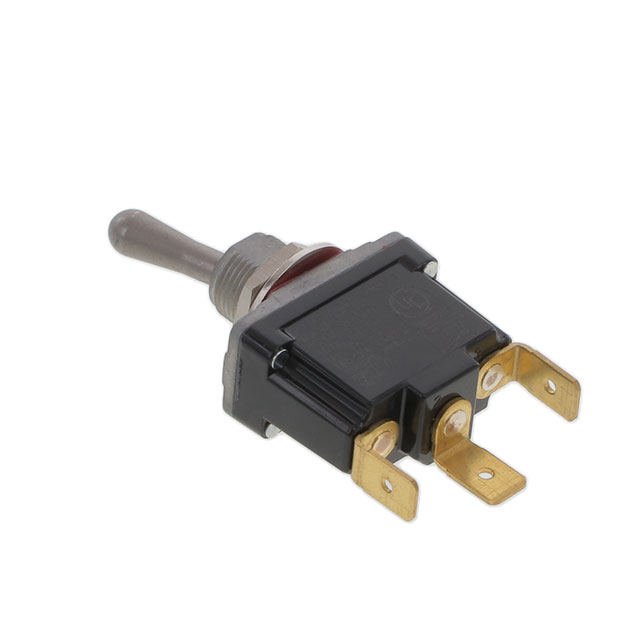

Littelfuse/Commercial Vehicle Products PT101SQQ	SPDT	IP66/IP68	28 V	15 A	12.4 mm	Standard Round	Quick Connect - 0.250" (6.3mm)	On-On	Sealed	Non-Illuminated	15/32-32	17.2 mm	Stainless Steel	10000 Cycles	85 °C	-40 °C	277 V

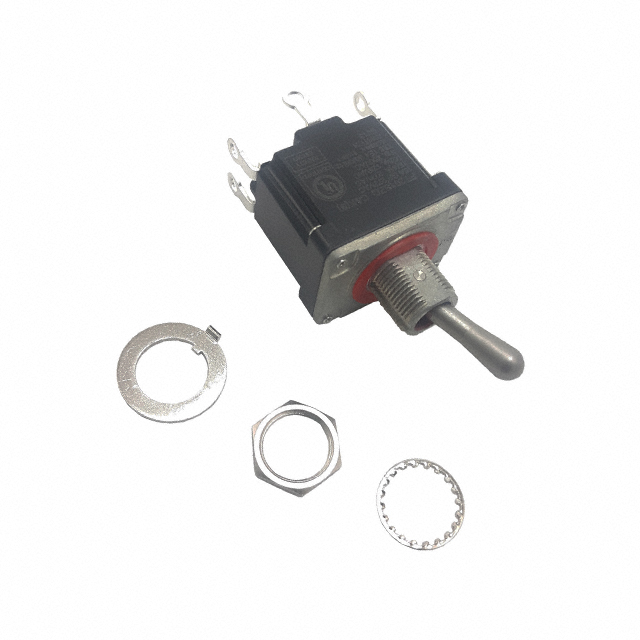

Littelfuse/Commercial Vehicle Products PT201SZQ	DPDT	IP66/IP68	28 V	15 A	12.4 mm	Standard Round	Solder Lug	On-On	Sealed	Non-Illuminated	15/32-32	17.2 mm	Stainless Steel	10000 Cycles	85 °C	-40 °C	277 V

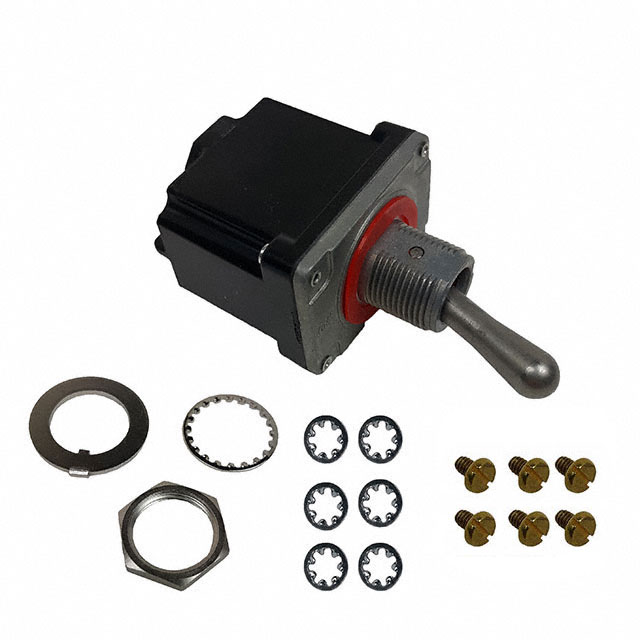

Littelfuse/Commercial Vehicle Products PT207SSQ	DPDT	IP66/IP68	28 V	10 A	12.4 mm	Standard Round	Screw Terminal	On-Off-Mom	Sealed	Non-Illuminated	15/32-32	17.2 mm	Stainless Steel	10000 Cycles	85 °C	-40 °C	277 V
Littelfuse/Commercial Vehicle Products PT202SSQ	DPST	IP66/IP68	28 V	15 A	12.4 mm	Standard Round	Screw Terminal	On-Off	Sealed	Non-Illuminated	15/32-32	17.2 mm	Stainless Steel	10000 Cycles	85 °C	-40 °C	277 V
Littelfuse/Commercial Vehicle Products PT203SSQ	DPDT	IP66/IP68	28 V	15 A	12.4 mm	Standard Round	Screw Terminal	On-Off-On	Sealed	Non-Illuminated	15/32-32	17.2 mm	Stainless Steel	10000 Cycles	85 °C	-40 °C	277 V
Littelfuse/Commercial Vehicle Products PT105SZQ	SPDT	IP66/IP68	28 V	10 A	12.4 mm	Standard Round	Solder Lug	Mom-Off-Mom	Sealed	Non-Illuminated	15/32-32	17.2 mm	Stainless Steel	10000 Cycles	85 °C	-40 °C	277 V
Littelfuse/Commercial Vehicle Products PT203SQQ	DPDT	IP66/IP68	28 V	15 A	12.4 mm	Standard Round	Quick Connect - 0.250" (6.3mm)	On-Off-On	Sealed	Non-Illuminated	15/32-32	17.2 mm	Stainless Steel	10000 Cycles	85 °C	-40 °C	277 V

Catalog

Pluggable Terminal Blocks 10 Pos 5mm pitch Plug 26-14 AWG Screw Sealed Power Toggle Switch

Key Features

• IP66 / IP68 versatile rating

• UL 61058-1 certified

• Integrated panel seal for extra protection

Description

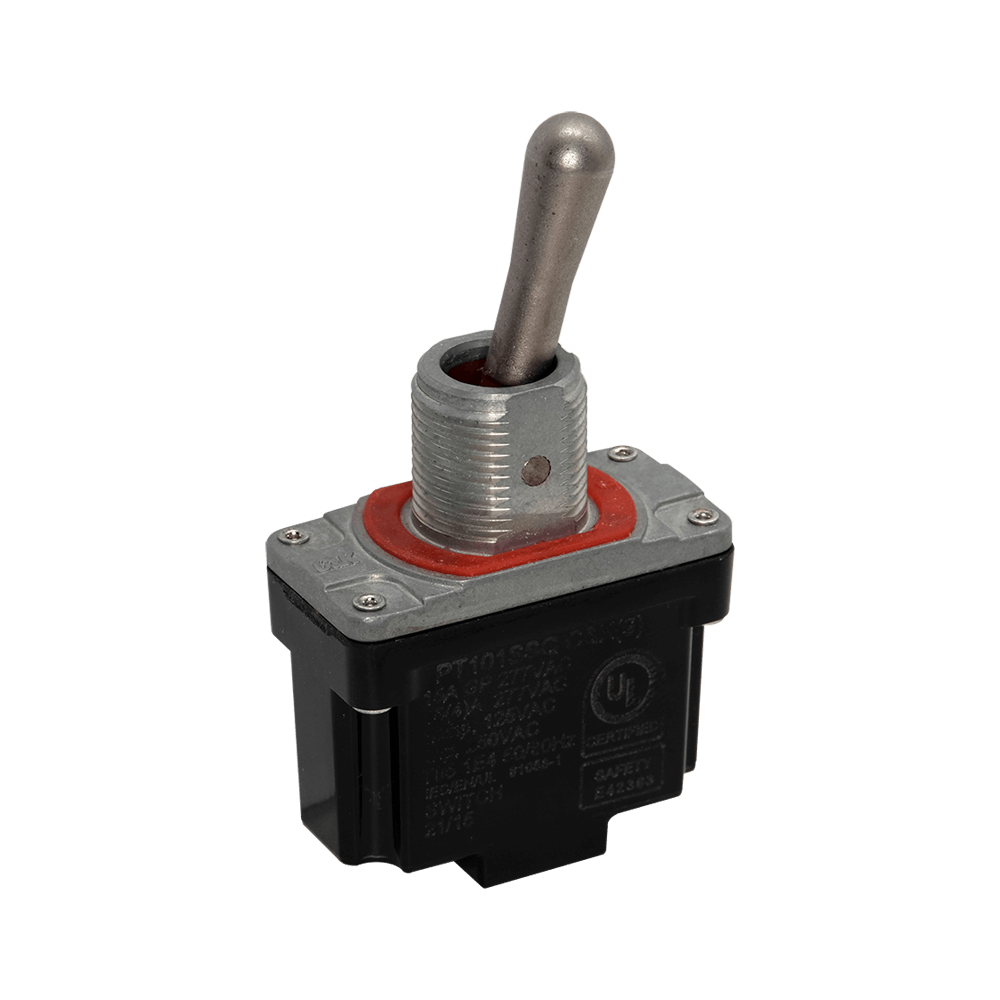

Ideal as a rugged, panel mount, multi-function switch, for harsh, dirty, dusty, wet conditions, C&K’s PT series sealed power toggle with patented single piece injection molded panel and toggle seal is suited to the performance requirements for off-road construction, agricultural, material handling, and industrial equipment. The PT sealed power toggle has a Versatile IP66/IP68 seal rating, electrical rating at 15 amps for maintained functions and 10 amps for momentary functions, and is IEC/UL 61058-1 Certified.
