TL6110 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Actuator Material	Switch Travel	Circuit	Actuator Type	Actuator Length, Right Angle [x]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Orientation	Mounting Type	Operating Force	Illumination	Contact Rating @ Voltage	Outline [y]	Outline [x]	Termination Style	Actuator Length, Right Angle [custom]	Actuator Length, Right Angle

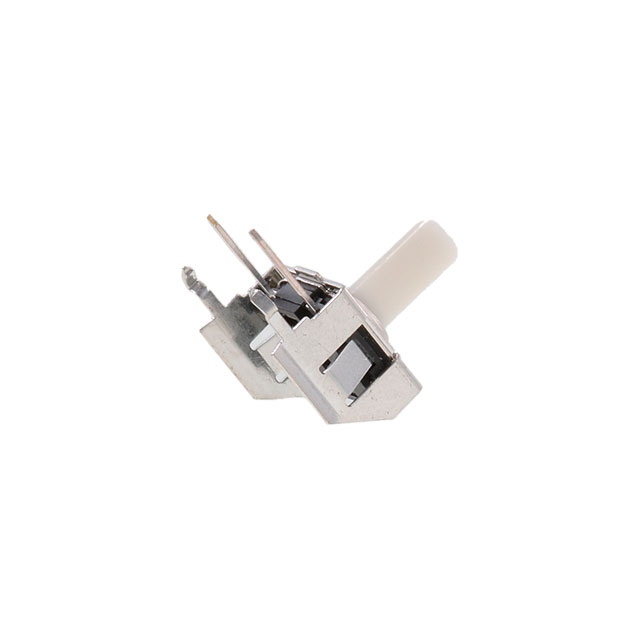

E-Switch TL6110DF300QP	500000 Cycles	Polyamide (PA) Nylon	0.5 mm	SPST-NO	Standard	8.8 mm	85 °C	-40 C	Off-Mom	Side Actuated	Right Angle Through Hole	300 gf	Non-Illuminated	0.05 A 12 VDC	5.8 mm	8.3 mm	PC Pin

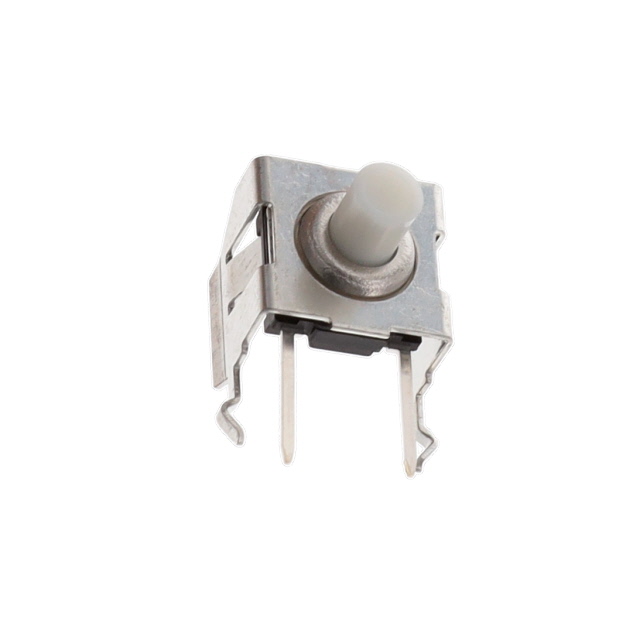

E-Switch TL6110CF300QP	500000 Cycles	Polyamide (PA) Nylon	0.5 mm	SPST-NO	Standard		85 °C	-40 C	Off-Mom	Side Actuated	Right Angle Through Hole	300 gf	Non-Illuminated	0.05 A 12 VDC	5.8 mm	8.3 mm	PC Pin	5.7 mm

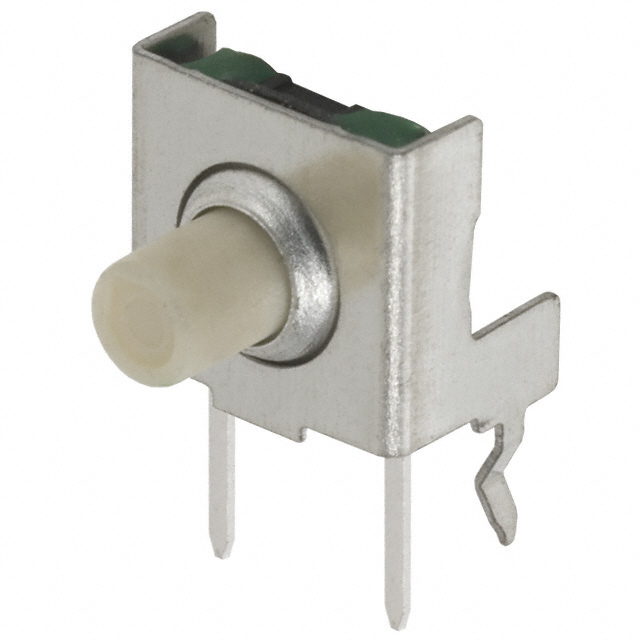

E-Switch TL6110CF160QP	1000000 Cycles	Polyamide (PA) Nylon	0.5 mm	SPST-NO	Standard		85 °C	-40 C	Off-Mom	Side Actuated	Right Angle Through Hole	160 gf	Non-Illuminated	0.05 A 12 VDC	5.8 mm	8.3 mm	PC Pin	5.7 mm

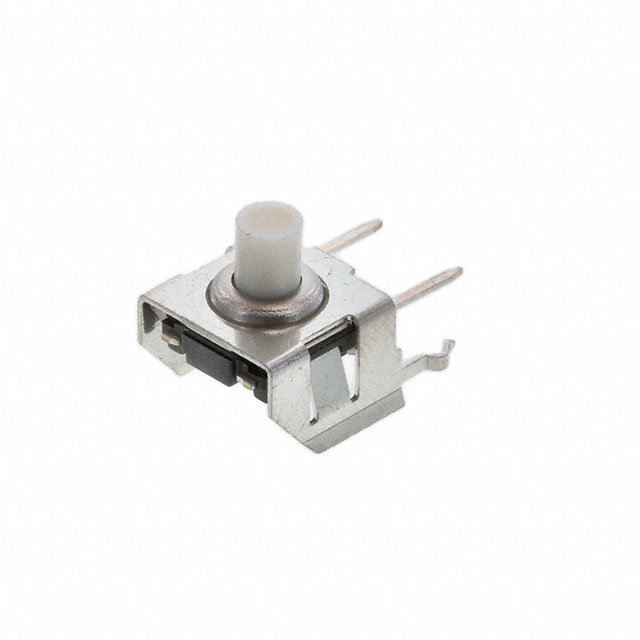

E-Switch TL6110CF500QP	200000 Cycles	Polyamide (PA) Nylon	0.5 mm	SPST-NO	Standard		85 °C	-40 C	Off-Mom	Side Actuated	Right Angle Through Hole	0.5 kgf	Non-Illuminated	0.05 A 12 VDC	5.8 mm	8.3 mm	PC Pin	5.7 mm

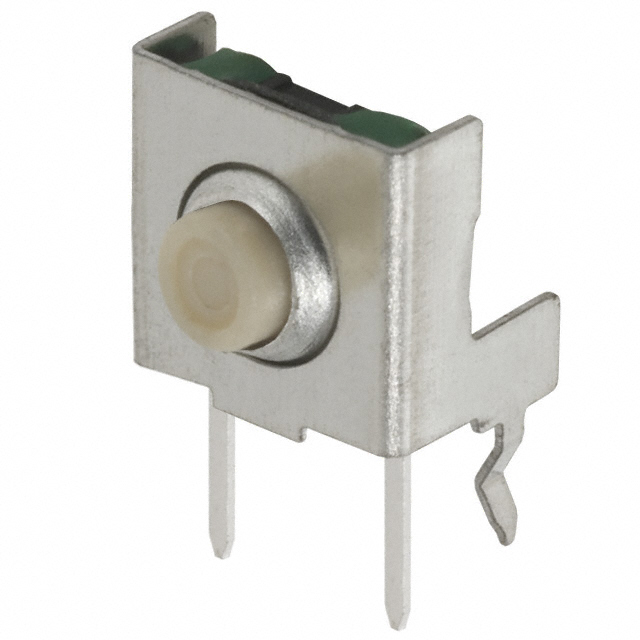

E-Switch TL6110AF500QP	200000 Cycles	Polyamide (PA) Nylon	0.5 mm	SPST-NO	Standard		85 °C	-40 C	Off-Mom	Side Actuated	Right Angle Through Hole	0.5 kgf	Non-Illuminated	0.05 A 12 VDC	5.8 mm	8.3 mm	PC Pin		3.5 mm

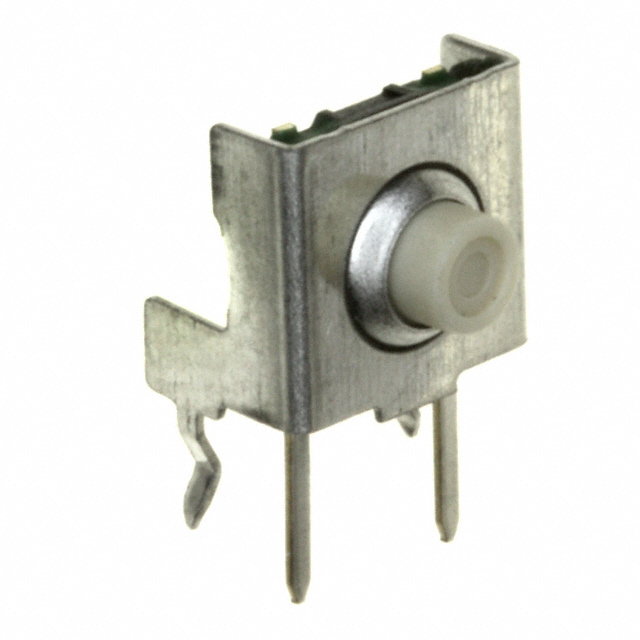

E-Switch TL6110BF300QP	500000 Cycles	Polyamide (PA) Nylon	0.5 mm	SPST-NO	Standard	4 mm	85 °C	-40 C	Off-Mom	Side Actuated	Right Angle Through Hole	300 gf	Non-Illuminated	0.05 A 12 VDC	5.8 mm	8.3 mm	PC Pin
