9G0824 Series

Catalog

FAN AXIAL 80X38MM 24VDC WIRE

Part	Material - Blade	Air Flow	Air Flow	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight [custom]	Width [y]	RPM	Approval Agency	Voltage - Rated	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Features	Bearing Type	Power (Watts)	Noise
Sanyo Denki America Inc. 9G0824P1G04	Plastic	90 CFM	2.52 m³/min	0.56 A	40000 Hrs	Plastic	4 Wire Leads	-20 ░C	70 °C	0.375 lb	170.1 g	38 mm	6300 RPM	CSA TUV UL	24 VDC	Tubeaxial	80 mm	80 mm	0.847 in H2O	211 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	13.4 W	51 dB(A)
Sanyo Denki America Inc. 9G0824H101	Plastic	80 CFM	2.24 m³/min	0.42 A	40000 Hrs	Plastic	3 Wire Leads	-20 ░C	70 °C	0.375 lb	170.1 g	38 mm	5700 RPM	CSA TUV UL	24 VDC	Tubeaxial	80 mm	80 mm	0.687 in H2O	171.1 Pa	Locked Rotor Protection Speed Sensor (Tach)	Ball	10.1 W	49 dB

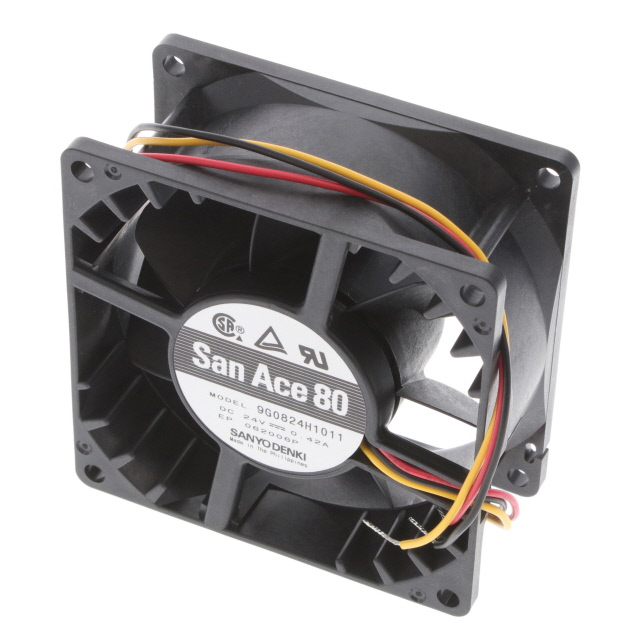

Sanyo Denki America Inc. 9G0824H1011	Plastic	80 CFM	2.24 m³/min	0.42 A	40000 Hrs	Plastic	3 Wire Leads	-20 ░C	70 °C	0.375 lb	170.1 g	38 mm	5700 RPM	CSA TUV UL	24 VDC	Tubeaxial	80 mm	80 mm	0.687 in H2O	171.1 Pa	Locked Rotor Protection Speed Sensor (Tach)	Ball	10.1 W	49 dB

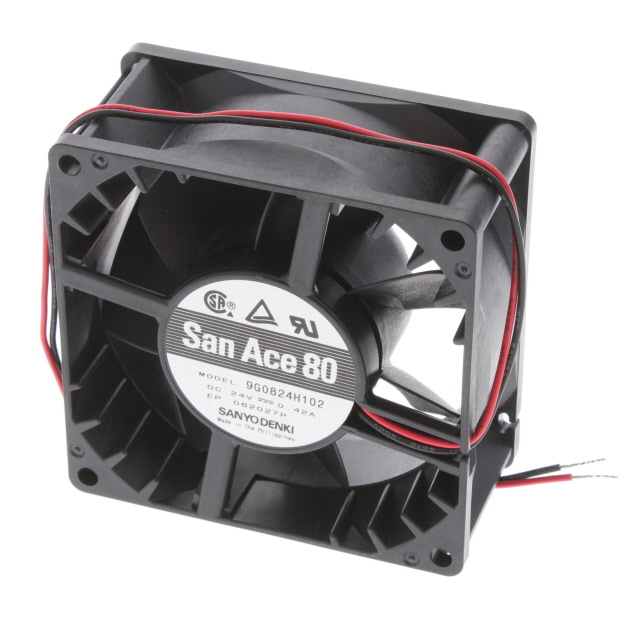

Sanyo Denki America Inc. 9G0824H102	Plastic	80 CFM	2.24 m³/min	0.42 A	40000 Hrs	Plastic	2 Wire Leads	-20 ░C	70 °C	0.375 lb	170.1 g	38 mm	5700 RPM	CSA TUV UL	24 VDC	Tubeaxial	80 mm	80 mm	0.687 in H2O	171.1 Pa		Ball	10.1 W	49 dB
Sanyo Denki America Inc. 9G0824H1D011	Plastic	80 CFM	2.24 m³/min	0.42 A	40000 Hrs	Plastic	3 Wire Leads	-20 ░C	70 °C	0.375 lb	170.1 g	38 mm	5700 RPM	CSA TUV UL	24 VDC	Tubeaxial	80 mm	80 mm	0.687 in H2O	171.1 Pa	Locked Rotor Sensor	Ball	10.1 W	49 dB
Sanyo Denki America Inc. 9G0824H1D01	Plastic	80 CFM	2.24 m³/min	0.42 A	40000 Hrs	Plastic	3 Wire Leads	-20 ░C	70 °C	0.375 lb	170.1 g	38 mm	5700 RPM	CSA TUV UL	24 VDC	Tubeaxial	80 mm	80 mm	0.687 in H2O	171.1 Pa	Locked Rotor Sensor	Ball	10.1 W	49 dB
Sanyo Denki America Inc. 9G0824G101	Plastic	90 CFM	2.52 m³/min	0.56 A	40000 Hrs	Plastic	3 Wire Leads	-20 ░C	70 °C	0.375 lb	170.1 g	38 mm	6300 RPM	CSA TUV UL	24 VDC	Tubeaxial	80 mm	80 mm	0.847 in H2O	211 Pa	Locked Rotor Protection Speed Sensor (Tach)	Ball	13.4 W	51 dB(A)
Sanyo Denki America Inc. 9G0824G1D01	Plastic	90 CFM	2.52 m³/min	0.56 A	40000 Hrs	Plastic	3 Wire Leads	-20 ░C	70 °C	0.375 lb	170.1 g	38 mm	6300 RPM	CSA TUV UL	24 VDC	Tubeaxial	80 mm	80 mm	0.847 in H2O	211 Pa	Locked Rotor Sensor	Ball	13.4 W	51 dB(A)
