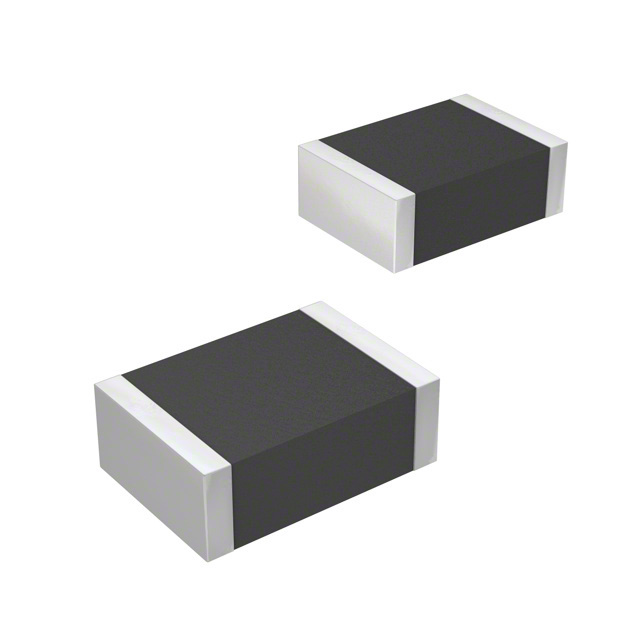

MH4532 Series

Catalog

FERRITE BEAD 70 OHM 1812 1LN

Part	Height (Max) [z]	Height (Max) [z]	Impedance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) (Max) [Max]	Filter Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Max) [Max]	Package / Case	Number of Lines	Mounting Type	DC Resistance (DCR) (Max)
Bourns Inc. MH4532-700Y	1.7 mm	0.067 in	70 Ohms	-55 C	125 °C	30 mOhm	Power Signal Line	0.177 in	4.5 mm	3.2 mm	0.126 in	6 A	1812 (4532 Metric)	1	Surface Mount
Bourns Inc. MH4532-151Y	1.7 mm	0.067 in	150 Ohms	-55 C	125 °C	20 mOhm	Power Signal Line	0.177 in	4.5 mm	3.2 mm	0.126 in	5 A	1812 (4532 Metric)	1	Surface Mount
Bourns Inc. MH4532-131Y	1.7 mm	0.067 in	130 Ohms	-55 C	125 °C		Power Signal Line	0.177 in	4.5 mm	3.2 mm	0.126 in	3 A	1812 (4532 Metric)	1	Surface Mount	40 mOhm
