PL155 Series

Manufacturer: Cinch Connectivity Solutions Trompeter

Catalog

CONN TRS PLUG STR CRIMP

Part	Includes	Center Contact Plating	Body Material	Body Finish	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Connector Style	Number of Ports	Contact Termination	Impedance	Housing Color	Center Contact Material	Fastening Type	Connector Type	Frequency - Max [Max]	Cable Group	Features	Shield Termination	Mounting Type

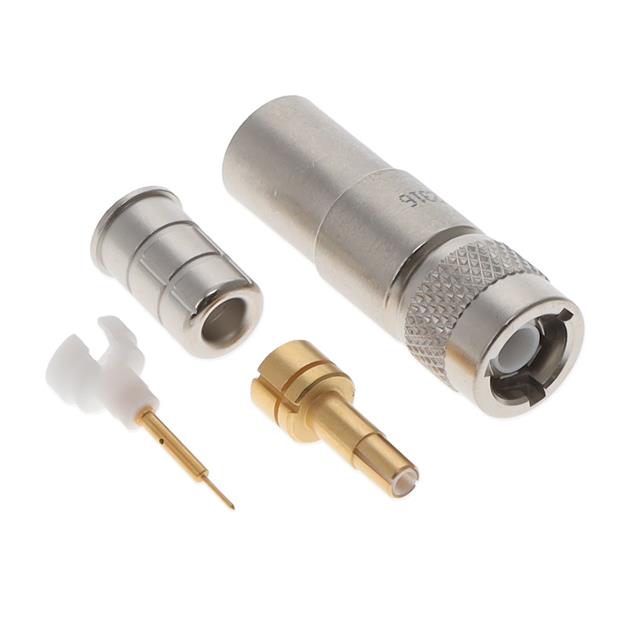

Cinch Connectivity Solutions Trompeter PL155AC-212	1 Connector 1 Strain Relief	Gold	Brass	Nickel	400 V	-65 ░C	200 °C	500	TRS Twinaxial/Triaxial	1	Crimp	Non-Constant	Silver	Beryllium Copper	Bayonet Lock	Plug Male Pin (Concentric)	500 MHz	Raychem 2524E0114	Three Lug	Crimp	Free Hanging (In-Line)
Cinch Connectivity Solutions Trompeter PL155AC-303	1 Connector 1 Heat Shrink	Gold	Brass	Nickel	400 V	-65 ░C	200 °C	500	TRS Twinaxial/Triaxial	1	Crimp	Non-Constant	Silver	Beryllium Copper	Bayonet Lock	Plug Male Pin (Concentric)	500 MHz	Raychem 7528A5314	Three Lug	Crimp	Free Hanging (In-Line)

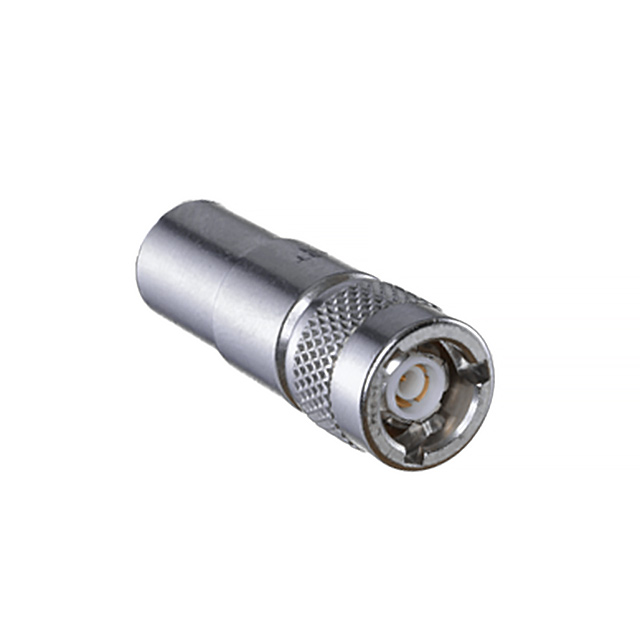

Cinch Connectivity Solutions Trompeter PL155AC-306	1 Connector 1 Strain Relief	Gold	Brass	Nickel	400 V	-65 ░C	200 °C	500	TRS Twinaxial/Triaxial	1	Crimp	Non-Constant	Silver	Beryllium Copper	Bayonet Lock	Plug Male Pin (Concentric)	500 MHz	M17/134-00002 TRC-50-2	Three Lug	Crimp	Free Hanging (In-Line)

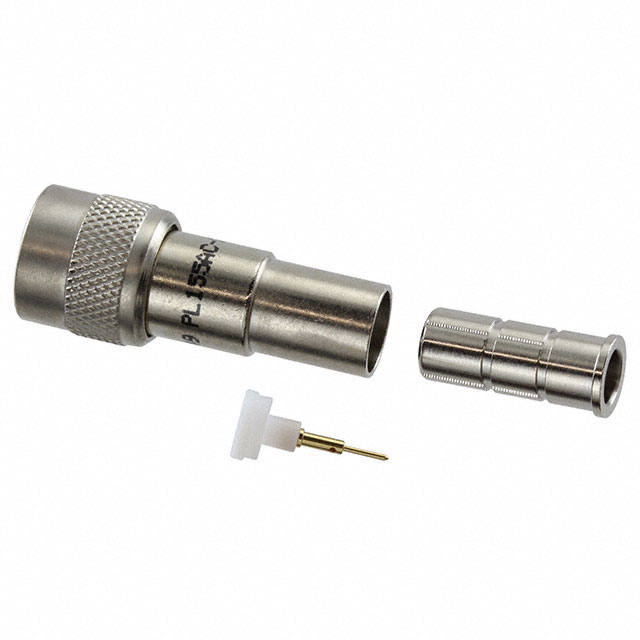

Cinch Connectivity Solutions Trompeter PL155AC-221	1 Connector 1 Heat Shrink	Gold	Brass	Nickel	400 V	-65 ░C	200 °C	500	TRS Twinaxial/Triaxial	1	Crimp	Non-Constant	Silver	Beryllium Copper	Bayonet Lock	Plug Male Pin (Concentric)	500 MHz	Raychem 10614	Three Lug	Crimp	Free Hanging (In-Line)
Cinch Connectivity Solutions Trompeter PL155FL-33		Gold	Brass	Nickel	400 V	-65 ░C	200 °C		TRS Twinaxial/Triaxial	1	Solder	Non-Constant	Silver	Beryllium Copper	Bayonet Lock	Plug Male Pin (Concentric)	500 MHz	TRC-75-1	Four Lug	Wrench Clamp	Free Hanging (In-Line)

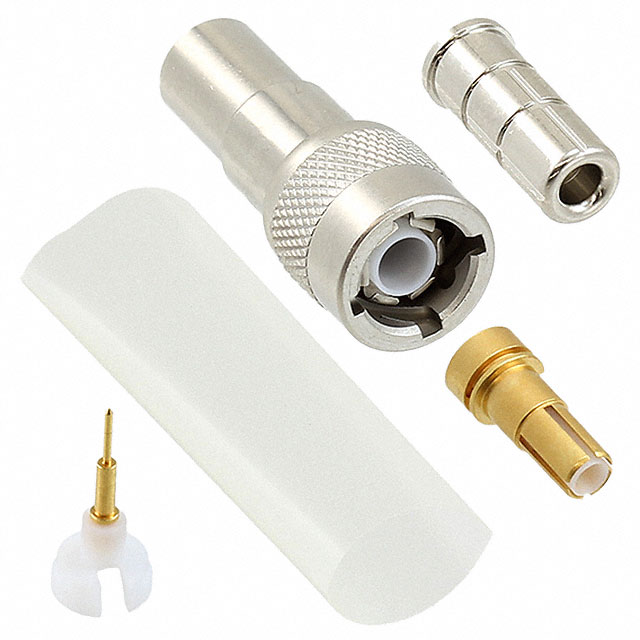

Cinch Connectivity Solutions Trompeter PL155ACFL-201	1 Connector 1 Heat Shrink	Gold	Brass	Nickel	400 V	-65 ░C	200 °C	500	TRS Twinaxial/Triaxial	1	Crimp	Non-Constant	Silver	Beryllium Copper	Bayonet Lock	Plug Male Pin (Concentric)	500 MHz	M17/176-00002	Four Lug	Crimp	Free Hanging (In-Line)

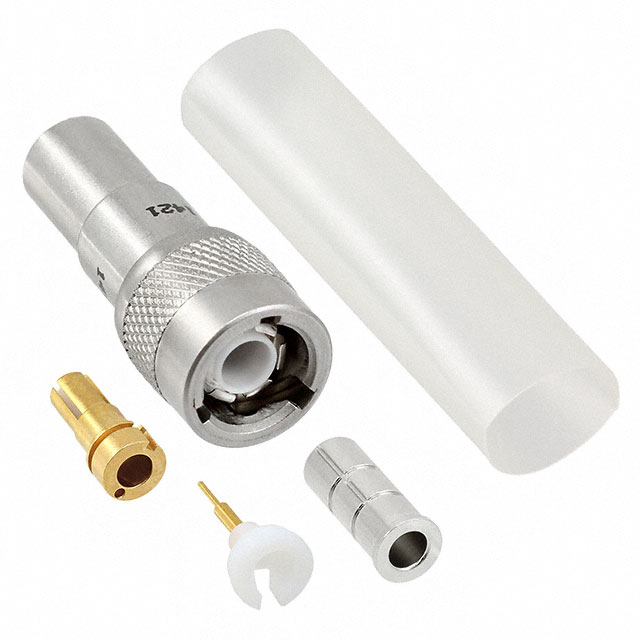

Cinch Connectivity Solutions Trompeter PL155AC-204	1 Connector 1 Heat Shrink	Gold	Brass	Nickel	400 V	-65 ░C	200 °C	500	TRS Twinaxial/Triaxial	1	Crimp	Non-Constant	Silver	Beryllium Copper	Bayonet Lock	Plug Male Pin (Concentric)	500 MHz	Raychem 10602	Three Lug	Crimp	Free Hanging (In-Line)

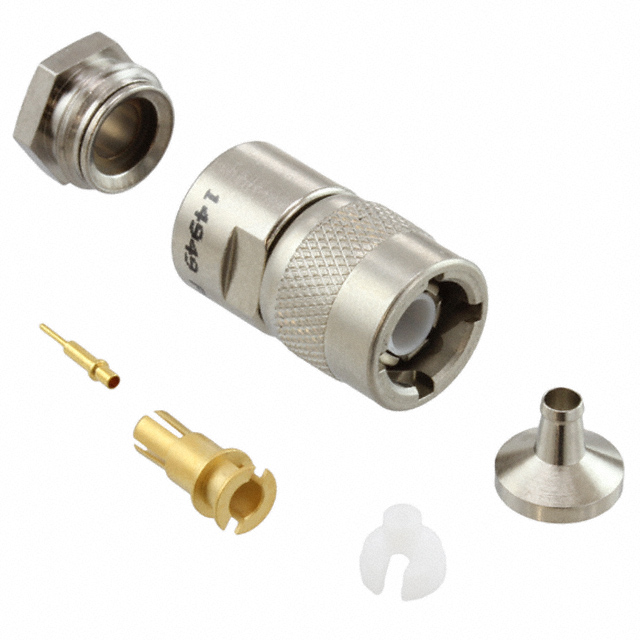

Cinch Connectivity Solutions Trompeter PL155FL-47		Gold	Brass	Nickel	400 V	-65 ░C	200 °C	500	TRS Twinaxial/Triaxial	1	Solder	Non-Constant	Silver	Beryllium Copper	Bayonet Lock	Plug Male Pin (Concentric)	500 MHz	M17/176-00002	Four Lug	Wrench Clamp	Free Hanging (In-Line)
