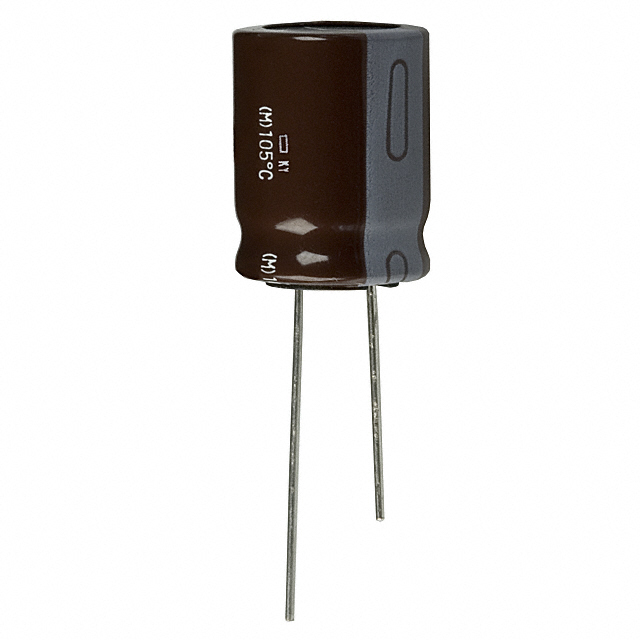

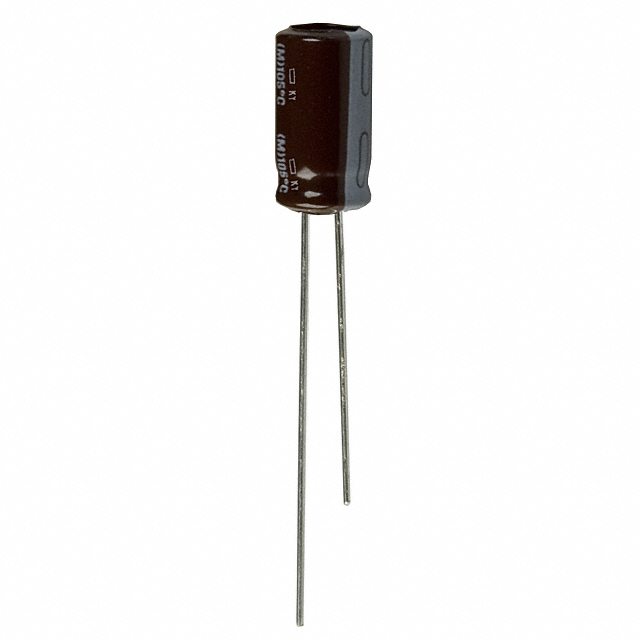

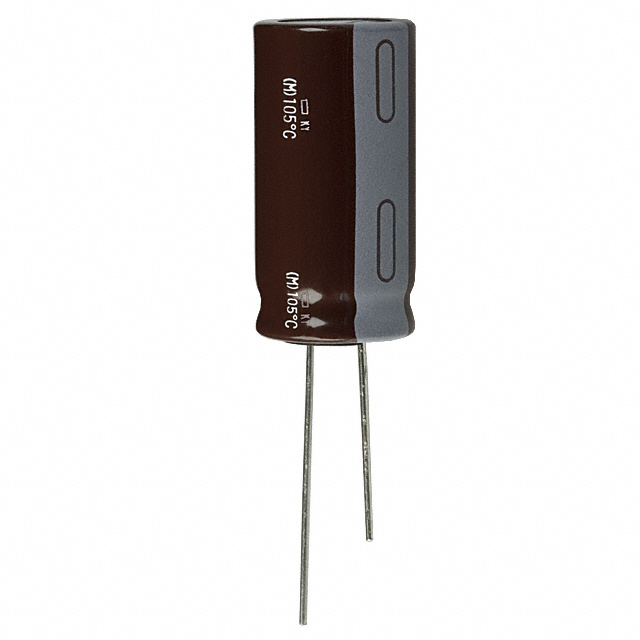

EKY-250E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 680UF 20% 25V RADIAL TH

Part	Impedance	Polarization	Package / Case	Ripple Current @ High Frequency	Lifetime @ Temp.	Mounting Type	Ripple Current @ Low Frequency	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Tolerance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-250ETD681MJ20S	46 mOhms	Polar	Can Radial	1.4 A	7000 Hrs	Through Hole	840 mA	680 µF	-40 C	105 ░C	General Purpose	0.394 in	10 mm	0.846 "	21.5 mm	25 VDC	20 %	0.197 "	5 mm

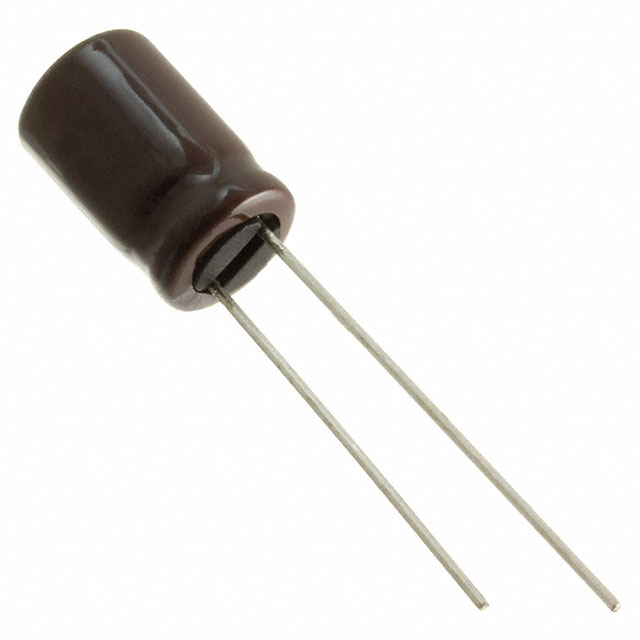

Chemi-Con EKY-250ELL221MHB5D	130 mOhms	Polar	Can Radial	640 mA	7000 Hrs	Through Hole	320 mA	220 µF	-40 C	105 ░C	General Purpose	0.315 in	8 mm			25 VDC	20 %	0.138 in	3.5 mm	0.512 "	13 mm
Chemi-Con EKY-250ELL122MM15S	43 mOhms	Polar	Can Radial	2.21 A	10000 Hrs	Through Hole	1.326 A	1.2 mF	-40 C	105 ░C	General Purpose	0.709 in	18 mm			25 VDC	20 %	0.295 in	7.5 mm	0.65 in	16.5 mm
Chemi-Con EKY-250ELL332MLN3S	17 mOhms	Polar	Can Radial	3.45 A	10000 Hrs	Through Hole	2.5875 A	3.3 mF	-40 C	105 ░C	General Purpose	0.63 in	16 mm			25 VDC	20 %	0.295 in	7.5 mm		1.299 in	33 mm
Chemi-Con EKY-250ELL470ME11D	580 mOhms	Polar	Can Radial	210 mA	5000 Hrs	Through Hole	84 mA	47 µF	-40 C	105 ░C	General Purpose	0.197 in	5 mm		0.492 in	25 VDC	20 %	0.079 in	2 mm				12.5 mm
Chemi-Con EKY-250ELL102ML15S		Polar	Can Radial	1.94 A	10000 Hrs	Through Hole	1.164 A	1000 µF	-40 C	105 ░C	General Purpose	0.63 in	16 mm			25 VDC	20 %	0.295 in	7.5 mm	0.65 in	16.5 mm
Chemi-Con EKY-250ELL101MF11D	220 mOhms	Polar	Can Radial	340 mA	5000 Hrs	Through Hole	136 mA	100 µF	-40 C	105 ░C	General Purpose	0.248 "	6.3 mm		0.492 in	25 VDC	20 %	0.098 in	2.5 mm				12.5 mm
Chemi-Con EKY-250ETD221MHB5D		Polar	Can Radial	640 mA	7000 Hrs	Through Hole	320 mA	220 µF	-40 C	105 ░C	General Purpose	0.315 in	8 mm			25 VDC	20 %	0.138 in	3.5 mm	0.512 "	13 mm
Chemi-Con EKY-250ELL182ML20S	27 mOhms	Polar	Can Radial	2.53 A	10000 Hrs	Through Hole	1.518 A	1800 µF	-40 C	105 ░C	General Purpose	0.63 in	16 mm	0.846 "	21.5 mm	25 VDC	20 %	0.295 in	7.5 mm
Chemi-Con EKY-250ETD471MJ16S	60 mOhms	Polar	Can Radial	1.21 A	7000 Hrs	Through Hole	605 mA	470 µF	-40 C	105 ░C	General Purpose	0.394 in	10 mm			25 VDC	20 %	0.197 "	5 mm		0.689 in			17.5 mm
