PT91-21 Series

Catalog

PHOTOTRANSISTOR IR CHIP SILICON 940NM 2-PIN MINI-SMD T/R

Part	Orientation	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]	Current - Dark (Id) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Power - Max [Max]
Everlight Electronics Co Ltd PT91-21B/TR7	Top View	Surface Mount	30 V	2-SMD Gull Wing	20 mA	100 nA	85 °C	-25 °C	940 nm
Everlight Electronics Co Ltd PT91-21B/TR10	Top View	Surface Mount	30 V	2-SMD Z-Bend	20 mA	100 nA	85 °C	-25 °C	940 nm

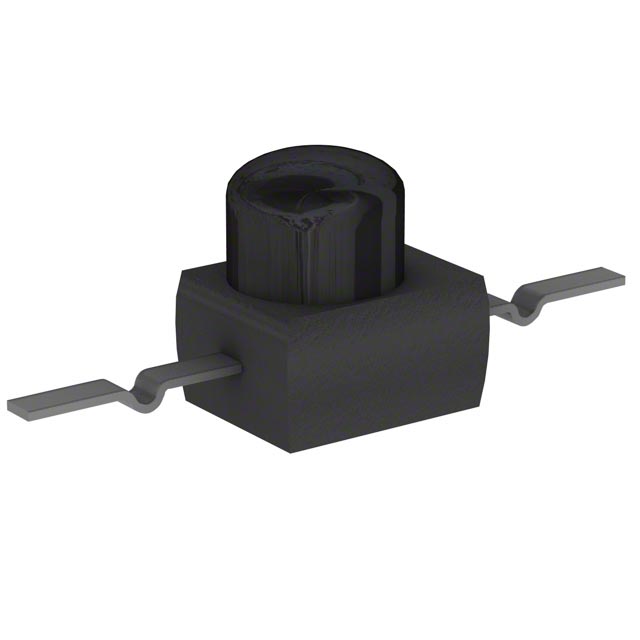

Everlight Electronics Co Ltd PT91-21B/TR9	Top View	Surface Mount	30 V	2-SMD Yoke Bend	20 mA	100 nA	85 °C	-25 °C	940 nm

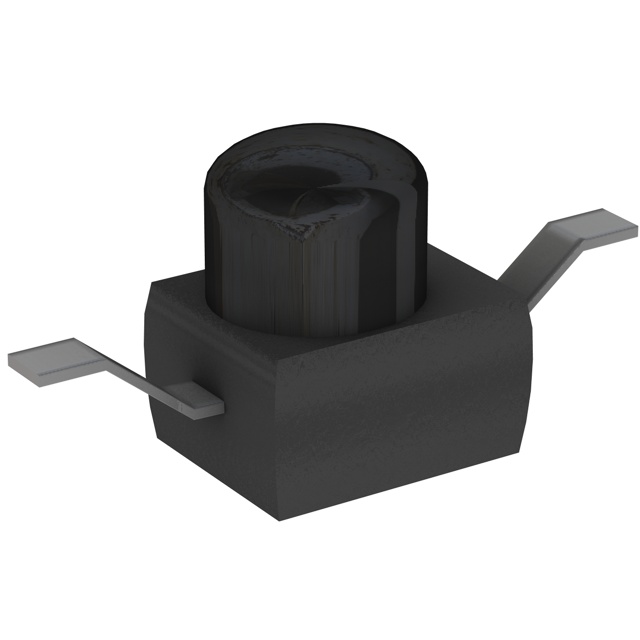

Everlight Electronics Co Ltd PT91-21B	Top View	Through Hole	30 V	Axial Flat Leads	20 mA	100 nA	85 °C	-25 °C	940 nm

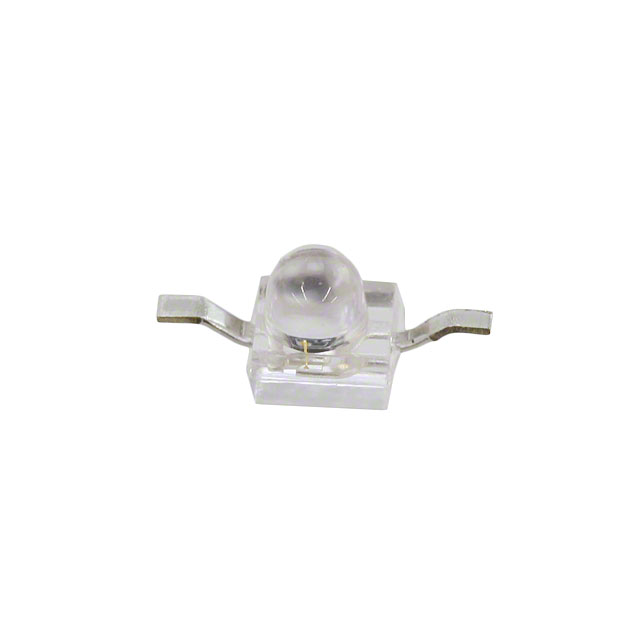

Everlight Electronics Co Ltd PT91-21C/TR10	Top View	Surface Mount	30 V	2-SMD Z-Bend	20 mA	100 nA	85 °C	-25 °C	940 nm	75 mW

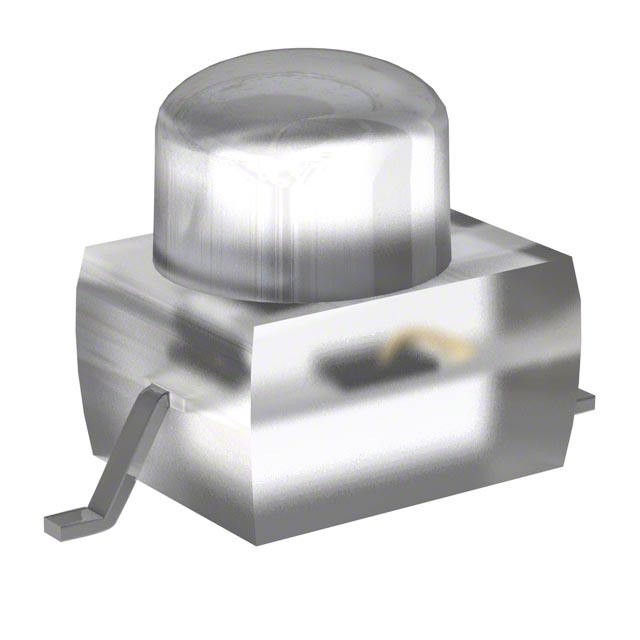

Everlight Electronics Co Ltd PT91-21C/TR7	Top View	Surface Mount	30 V	2-SMD Gull Wing	20 mA	100 nA	85 °C	-25 °C	940 nm	75 mW

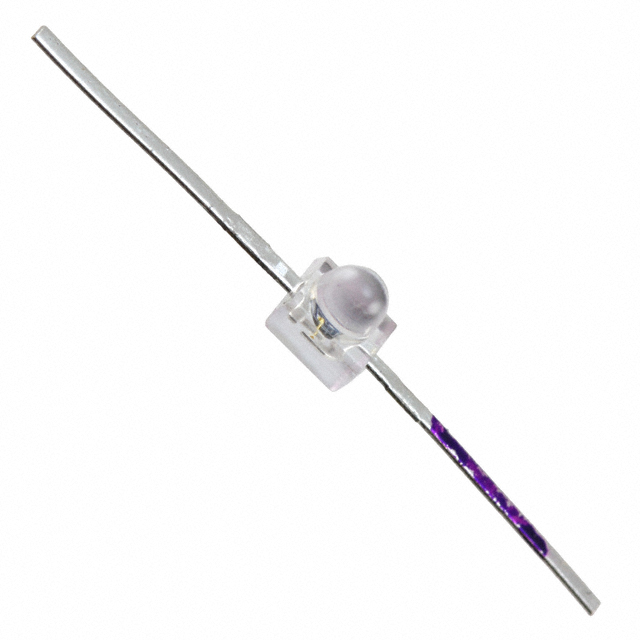

Everlight Electronics Co Ltd PT91-21C	Top View	Through Hole	30 V	Axial	20 mA	100 nA	85 °C	-25 °C	940 nm	75 mW
