6TAE Series

Catalog

POSCAP, TA SERIES ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Mounting Type	Type	Features	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Manufacturer Size Code	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components 6TAE150M	-55 C	105 ░C	150 µF	Surface Mount	Molded	General Purpose	2000 Hrs	0.079 in	2 mm	6.3 VDC	D2E	20 %	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	25 mOhm
Panasonic Electronic Components 6TAE330ML	-55 C	105 ░C	330 µF	Surface Mount	Molded	General Purpose	2000 Hrs			6.3 VDC	D3L	20 %	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	25 mOhm	0.118 "	3 mm

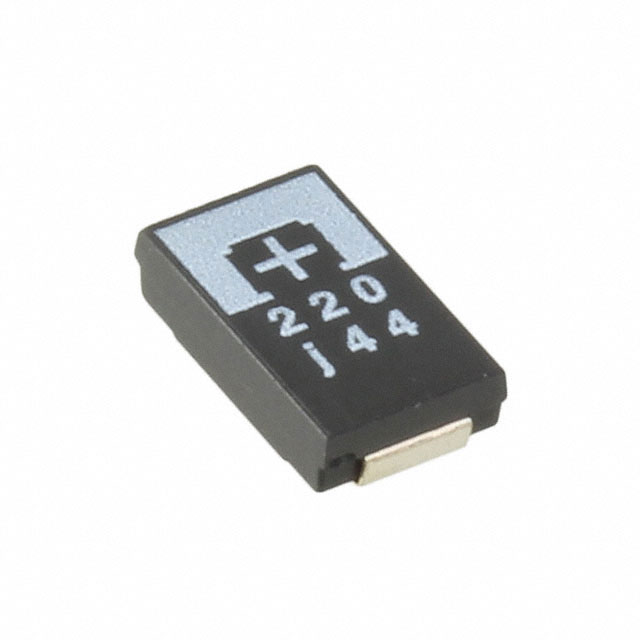

Panasonic Electronic Components 6TAE220MI	-55 C	105 ░C	220 µF	Surface Mount	Molded	General Purpose	2000 Hrs	0.079 in	2 mm	6.3 VDC	D2E	20 %	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	18 mOhm
