RE2-1A Series

Catalog

SWITCH ROCKER SPST 25A 14V

Part	Electrical Life	Mechanical Life	Circuit	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Mounting Type	Actuator Type	Actuator Marking	Color - Actuator/Cap	Termination Style	Voltage Rating - DC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Switch Function	Current Rating (Amps)

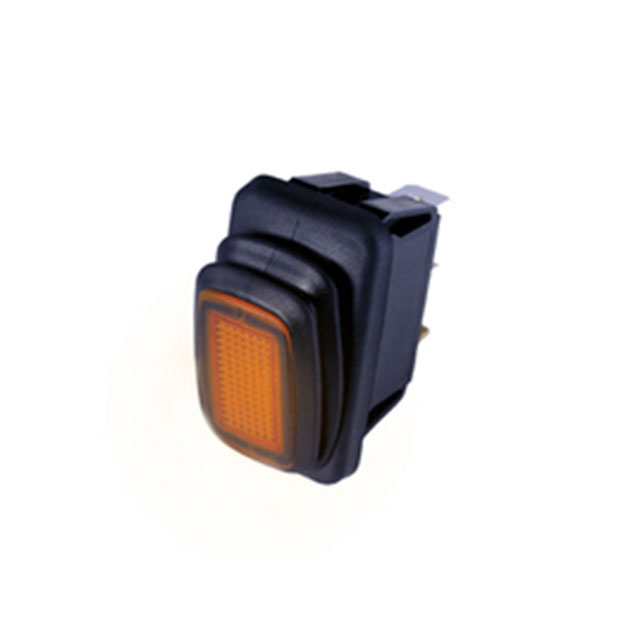

Switch Components RE2-1A-DC-1-AL	6000 Cycles	10000 Steps	SPST	Amber LED	85 °C	-25 °C	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	Flat - Illuminated	No Marking	Amber	Quick Connect - 0.250" (6.3mm)	14 V	27.6 mm	13.8 mm	14 VDC	On-Off	25 A

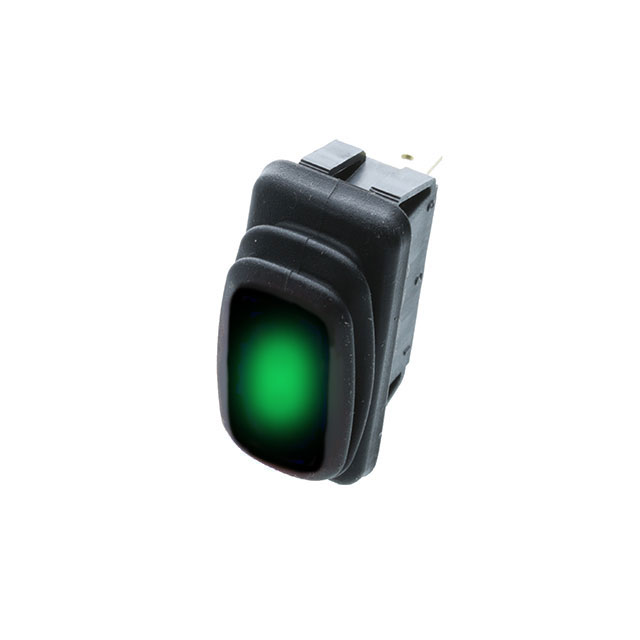

Switch Components RE2-1A-DC-1-GL	6000 Cycles	10000 Steps	SPST	Green LED	85 °C	-25 °C	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	Flat - Illuminated	No Marking	Green	Quick Connect - 0.250" (6.3mm)	14 V	27.6 mm	13.8 mm	14 VDC	On-Off	25 A

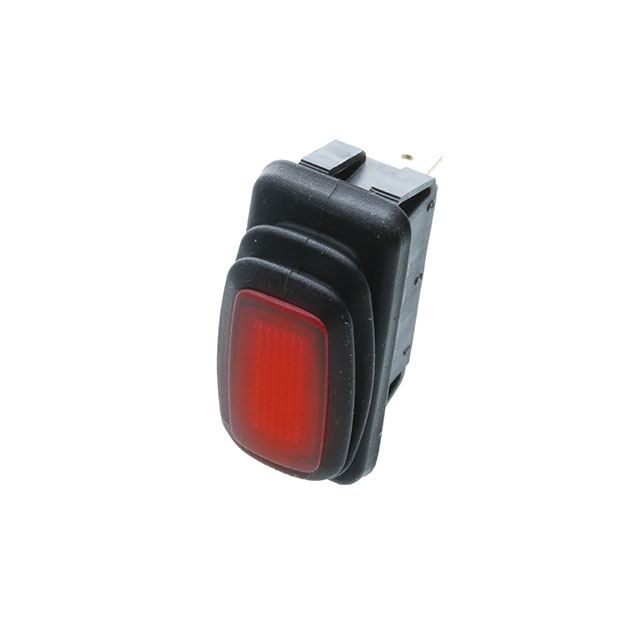

Switch Components RE2-1A-DC-1-RL	6000 Cycles	10000 Steps	SPST	LED Red	85 °C	-25 °C	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	Flat - Illuminated	No Marking	Red	Quick Connect - 0.250" (6.3mm)	14 V	27.6 mm	13.8 mm	14 VDC	On-Off	16 A 25 A
