082-651 Series
Manufacturer: Amphenol RF
Beta
⌘K
N STRAIGHT CRIMP PLUG, LMR400, A
| Part | Includes | Connector Style | Center Contact Plating | Shield Termination | Dielectric Material | Frequency - Max [Max] | Connector Type | Contact Termination | Ingress Protection | Cable Group | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Ports | Center Contact Material | Impedance | Body Material | Housing Color | Voltage Rating | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

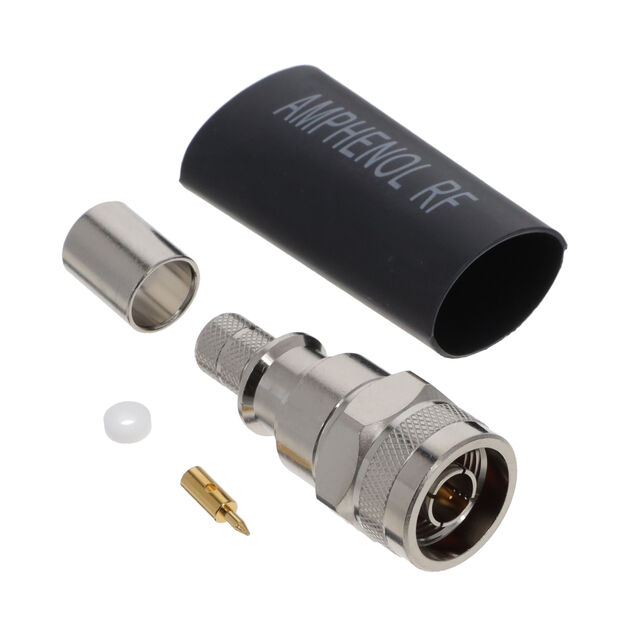

 Amphenol RF | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator | N Type | Gold | Crimp | Polytetrafluoroethylene (PTFE) | 6000 MHz | Male Pin Plug | Solder | IP67 - Dust Tight Waterproof | Belden 9913 Belden 9914 LMR-400 | Nickel | 500 | -65 ░C | 165 °C | Free Hanging (In-Line) | 1 | Brass | 50 Ohms | Brass | Silver | ||

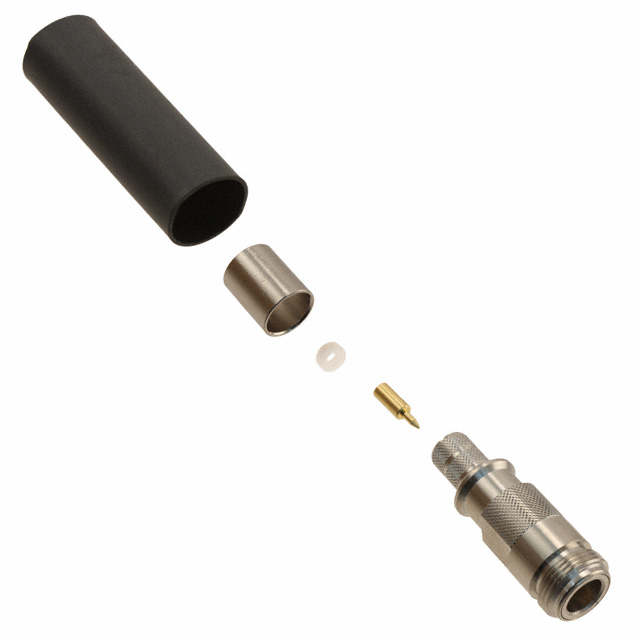

 Amphenol RF | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator | N Type | Gold | Crimp | Polytetrafluoroethylene (PTFE) | 6000 MHz | Female Socket Jack | Solder | IP67 - Dust Tight Waterproof | Belden 9913 Belden 9914 LMR-400 | Nickel | 500 | -55 °C | 85 °C | Free Hanging (In-Line) | 1 | Beryllium Copper | 50 Ohms | Brass | Silver | 1500 V | 0.15 dB |
