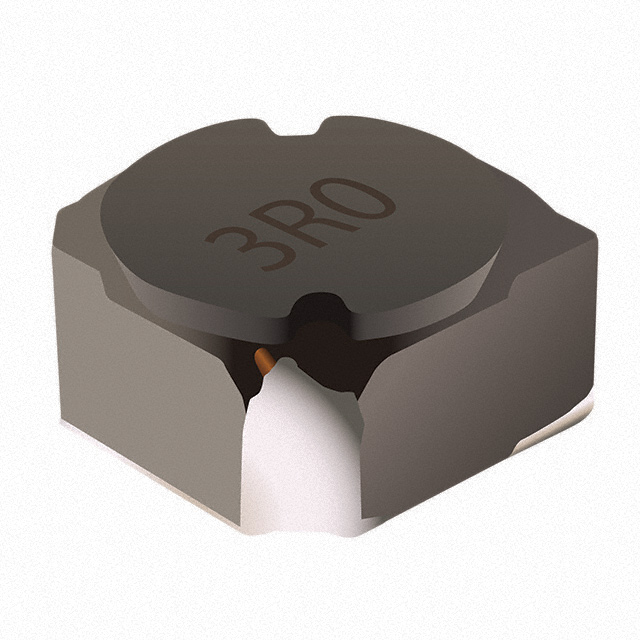

SRR6040A Series

Catalog

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRR6040A SERIES, 12 H, 20%, SHIELDED, 0.055 OHM, 1.7 A

Part	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Mounting Type	Ratings	Shielding	Material - Core	Current Rating (Amps)	Height - Seated (Max)	Height - Seated (Max) [Max]	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Inductance	Package / Case	DC Resistance (DCR)
Bourns Inc. SRR6040A-120M	1.61 A	125 °C	-40 C	20 %	Surface Mount	AEC-Q200	Shielded	Ferrite	1.7 A	4 mm	0.157 in	10 kHz	55 mOhm	12 µH	Nonstandard Corner Terminals
Bourns Inc. SRR6040A-390M	940 mA	125 °C	-40 C	20 %	Surface Mount	AEC-Q200	Shielded	Ferrite	1 A	4 mm	0.157 in	10 kHz	135 mOhm	39 µH	Nonstandard Corner Terminals
Bourns Inc. SRR6040A-180M	1.35 A	125 °C	-40 C	20 %	Surface Mount	AEC-Q200	Shielded	Ferrite	1.5 A	4 mm	0.157 in	10 kHz	75 mOhm	18 µH	Nonstandard Corner Terminals
Bourns Inc. SRR6040A-270M	1.11 A	125 °C	-40 C	20 %	Surface Mount	AEC-Q200	Shielded	Ferrite	1.2 A	4 mm	0.157 in	10 kHz		27 µH	Nonstandard Corner Terminals	105 mOhm
Bourns Inc. SRR6040A-150M	1.51 A	125 °C	-40 C	20 %	Surface Mount	AEC-Q200	Shielded	Ferrite	1.6 A	4 mm	0.157 in	10 kHz		15 µH	Nonstandard Corner Terminals
Bourns Inc. SRR6040A-560M	770 mA	125 °C	-40 C	20 %	Surface Mount	AEC-Q200	Shielded	Ferrite	0.86 A	4 mm	0.157 in	10 kHz	190 mOhm	56 µH	Nonstandard Corner Terminals
Bourns Inc. SRR6040A-1R0Y	5.55 A	125 °C	-40 C	30 %	Surface Mount	AEC-Q200	Shielded	Ferrite	5 A	4 mm	0.157 in	10 kHz	15 mOhm	1 µH	Nonstandard Corner Terminals
Bourns Inc. SRR6040A-3R0Y	3.33 A	125 °C	-40 C	30 %	Surface Mount	AEC-Q200	Shielded	Ferrite	3.5 A	4 mm	0.157 in	10 kHz	21 mOhm	3 ÁH	Nonstandard Corner Terminals
Bourns Inc. SRR6040A-8R2Y	2 A	125 °C	-40 C	30 %	Surface Mount	AEC-Q200	Shielded	Ferrite	2.3 A	4 mm	0.157 in	10 kHz	36 mOhm	8.2 µH	Nonstandard Corner Terminals
Bourns Inc. SRR6040A-101M	570 mA	125 °C	-40 C	20 %	Surface Mount	AEC-Q200	Shielded	Ferrite	650 mA	4 mm	0.157 in	10 kHz		100 µH	Nonstandard Corner Terminals	345 mOhm
